HZS90 Ready Mixed Concrete Price

HZS90 ready mix concrete price

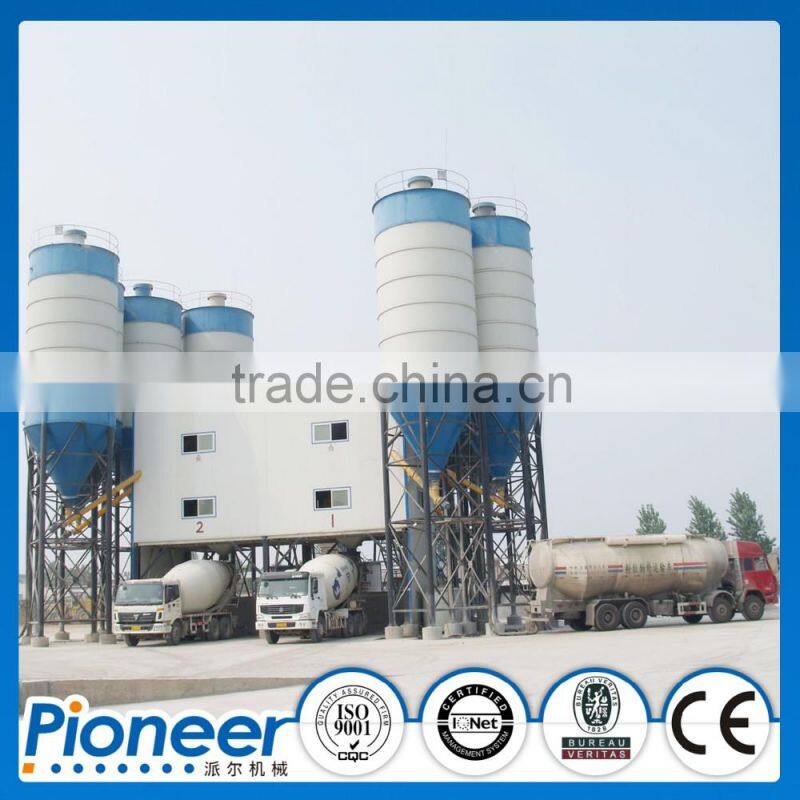

HZS90 mixing plant ,on the basis of the combination advantages from various foreign mixing building & stations and advanced technology, HZS90 ready mix concrete price has been developed and produced. It adopts modular structure design,which maintains convenient installation & removal,safe,comfortable and reliable operation,with good mixing effect and high efficiency.

Parameter of  HZS90 ready mix concrete price for sale :

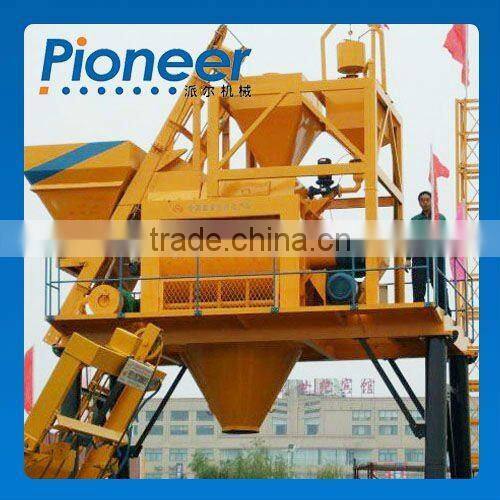

1.MIXING SYSTEM

   Concrete Mixer:JS1500

   Discharge Capacity:1500L

   Charging Capacity:2400L

   Productivity:90m3/h

   Mixing Motor Power:60kw

   Dimensions:5058*2250*2440mm

2.AGGREGATE SYSTEM

   Batching Machine:PLD2400

   Volume:4*12m3

   Capacity:120m3/h

   Power:11kw

   Weight:10500kg

   Dimensions:13000*2840*3900mm

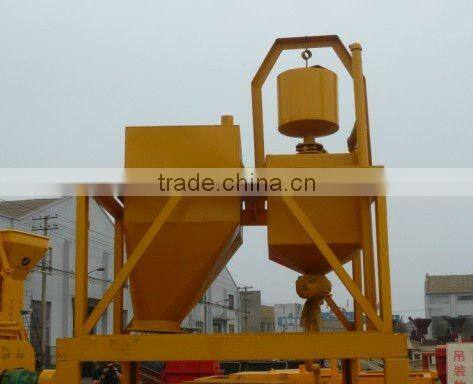

3.WEIGHING SYSTEM

1>Aggregate Weighting:1 unit

     Weighing Capacity:4000kg

     Accuracy:±2%

2>Cement Weighint:1 unit

     Weighing Capacity:1000kg

     Accuracy:±1%

3>Water Weighing :1 unit

     Weighing Capacity:400kg

     Accuracy:±1%

4>Additive Weighing:1 unit

     Weighing Capacity:50kg

     Accuracy:±1%

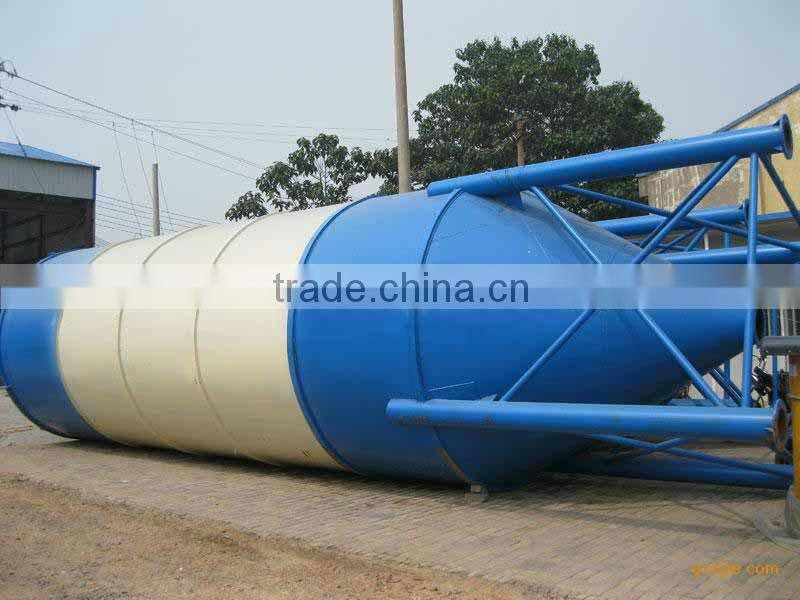

4.CEMENT SYSTEM(OPTIONAL)

   Cement silo:3 units

   Capacity:100T*3

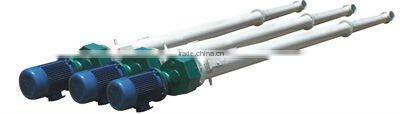

5.SCREW CONVEROY SYSTEM(OPTIONAL)

   Screw conveyor:3 units

   Diameter:Φ273*3

   Lenght:9m

6.CONTROL SYSTEM

1>PLC Control operation

2>With air-conditioned control room

3>Main electrical components:Schneider or Simense
