Axial Bellows Compensator Balance
- SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
-
Flexible Pipe Bellows(AD201211163)
-
2015 Aidi Chinese Manufacturer for Stainlesss Steel Flexible Pipe Bellows
-
Flexible Corrugated Conduit Tube With Big Diameter Bellows And Bellows Assembly
-
Non-standard Hydraulic Compensator Expansion Joint
-
High Quality Stainless Steel Expansion Joint And Compensator Bellows
-
Stainless Steel Hose Bellow
Product Details
| Material | Other, Stainless Steel, Stainless steel 304, 316L, 321,, etc | Technics | Other, Hydraulic bellows | |
| Type | Other, stainless steel | Place of Origin | Jiangsu, China | |
| Model Number | DN90 and DN60 | Brand Name | AD | |
| Connection | Other, hydroform | Shape | Other, cylindrical | |
| Head Code | Other, Equal |
Product Description
Our company is specialized in the production of corrugated metal bellows, the core team has nearly 30 years of bellow design and production experience, its design and craftsmanship take leading position in industry. Now it passed the certification of ISO9001:2008. we have all kinds of specification mold, material available; and we have a strong production capacity, delivery is prompt the company possess the stronger nonstandard design and mechanical capacity, we can produce nonstandard bellows weldment as your requirement.
Detailed product Description
The specific bellow parameters are as followings :( All data is record by electronic digital display caliper)
¤Normally (The scope of product specification )
Material: Stainless steel 304, 316L, 321,, etc
Specifications: DN10-DN300
Single wall thickness: 0.09-1.0(Can according to customer special requirement multilayer wall thickness)
Compression ratio: 10%-45 %( pressure: 0.25Mpa-25Mpa)
Temp:-196-450°C
Application display of bellows compensator (Detailed Product Description)

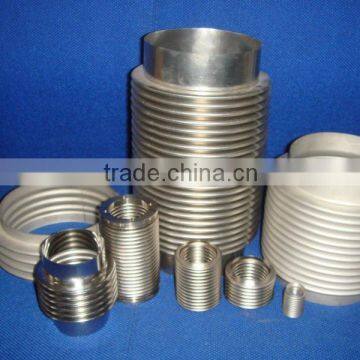

Detailed product Pictures:
Specifications | I.D | O.D | WT | CR | CD | Available Material |
DN10 | 10 | 15 | 0.12 | 45 | 1.8 | 304 |
DN12 | 12 | 20 | 0.12 | 45 | 2 | 304 |
DN14 | 14 | 22 | 0.12 | 45 | 2.2 | 304 and 316L |
DN15 | 15 | 23 | 0.15 | 45 | 2.2 | 316L |
DN16 | 16 | 25 | 0.15 | 45 | 2.3 | 304 |
DN18 | 18 | 28 | 0.12 | 45 | 2.6 | 304 |
0.15 | 316L | |||||
DN22 | 22 | 32 | 0.15 | 45 | 3 | 304 and 316L |
DN25 | 25 | 38 | 0.15 | 45 | 3 | 304 |
0.13 | 316L | |||||
DN28 | 28 | 40 | 0.12 | 45 | 3.2 | 304 |
0.15 | 316L | |||||
DN32 | 32 | 45 | 0.15 | 45 | 3.4 | 304 and 316L |
DN35 | 35 | 50 | 0.15 | 45 | 3.5 | 304 and 316L |
DN38 | 38 | 55 | 0.15 | 45 | 3.8 | 304 and 316L |
DN40 | 40 | 60 | 0.2 | 45 | 3.8 | 304 |
DN42 | 42 | 60 | 0.15 | 45 | 4.4 | 304 |
DN45 | 45 | 65 | 0.15 | 45 | 4.5 | 304 |
DN48 | 48 | 66 | 0.2 | 45 | 4.5 | 316L |
DN50 | 50 | 70 | 0.2 | 45 | 5 | 304 and 316L |
DN60 | 60 | 80 | 0.18 | 45 | 5.5 | 304 |
DN65 | 65 | 89 | 0.3 | 45 | 5.7 | 304 |
0.2 | 316L | |||||
DN75 | 75 | 100 | 0.3 | 30 | 6 | 304 |
DN80 | 80 | 105 | 0.3 | 30 | 7 | 304 and 316L |
DN90 | 90 | 115 | 0.3 | 30 | 6.5 | 304 |
