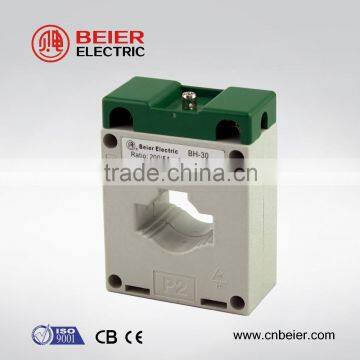

MES-0.66Kv 150/5A Class1.0 series current transformer price
Negotiable
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Shanghai or Ningbo port
- T/T Credit Card
You May Like
-
200/5A Class 0.5 MSQ Series high accuracy low voltage toroidal current transformer
-
BH40-0.66KV current transformer for 0.2 class
-
JYS-30 5a output ct single bar phase ferrite current transformer 600/5a
-
JYS-40 one phase busbar type operated current transformer output 5a
-
JYS busbar and sealed type low voltage ac current transformer 5a
-
JYS -20 ferrite core ct busbar type current transformer output 5A
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Beier | |
| Model Number | BH/LMK | Usage | Instrument | |
| Phase | Other | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
current transformer BH-50 series model Specifications:
1. Standard: IEC44-1, BS3938, DIN42600, GB1208-2006;
2. Primary current: 1~5000A;
3. Secondary current: 1A or 5A;
4. Accuracy class: 0.5, 1.0 (Class0.2 or class0.2S can be tailor made!)
5. Cases are made of ABS, meet UL-94V0;
6. Short -time thermal current: Ith=60x1h;
7. Security factor: FS less than 5;
current transformer BH-50 series model Designation:
current transformer BH-50 series Model:
| Model | Rated current ratio | Busbar | Turn No. | Rated burden | Accuracy class | Rated insulation level |
| Section(mm) | (VA) | (KV) | ||||
BH-30 SDH-30 LMK1-0.66 | 15/5A | - | 10 | 5 | 0.5 | 0.66/3 |
| 20/5A | - | 10 | 5 | |||
| 30/5A | - | 5 | 5 | |||
| 40/5A | - | 5 | 5 | |||
| 50/5A | - | 3 | 5 | |||
| 75/5A | - | 2 | 5 | |||
| 100/5A | 30X10 | 1.2 | 5 | |||
| 150/5A | 30X10 | 1 | 5 | |||
| 200/5A | 30X10 | 1 | 5 | |||
| 300/5A | 30X10 | 1 | 5 | |||
BH-40 SDH-40 LMK1-0.66 | 200/5A | 40X10 | 1 | 5 | ||
| 300/5A | 40X10 | 1 | 5 | |||
| 400/5A | 40X10 | 1 | 5 | |||
| 500/5A | 40X10 | 1 | 10 | |||
| 600/5A | 40X10 | 1 | 10 | |||
BH-50 SDH-40 LMK1-0.66 | 300/5A | 50X10 | 1 | 5 | ||
| 400/5A | 50X10 | 1 | 5 | |||
| 500/6A | 50X10 | 1 | 5 | |||
| 600/5A | 50X10 | 1 | 10 | |||
| 800/5A | 50X10 | 1 | 10 | |||
BH-60 SDH-60 LMK1-0.66 | 600/5A | 60x10 | 1 | 10 | ||
| 800/5A | 60x10 | 1 | 10 | |||
| 1000/5A | 60x10 | 1 | 10 | |||
BH-80 SDH-80 LMK1-0.66 | 800/5A | 80X10 | 1 | 10 | ||
| 1000/5A | 80X10 | 1 | 10 | |||
| 1500/5A | 80X10 | 1 | 10 | |||
BH-100 SDH-100 LMK1-0.66 | 1000/5A | 100X10 | 1 | 10 | ||
| 1500/5A | 100X10 | 1 | 10 | |||
| 2000/5A | 100X10 | 1 | 15 | |||
| 3000/5A | 100X10 | 1 | 15 | |||
BH-125 SDH-125 LMK1-0.66 | 2000/5A | 120X10 | 1 | 15 | ||
| 3000/5A | 120X10 | 1 | 15 | |||
| 4000/5A | 120X10 | 1 | 15 | |||
| 5000/5A | 120X10 | 1 | 15 |
current transformer BH-50 series Model:
BH30S, 30, 40, 50, 60, 80, 100, Seven sizes.
