Kingdom hydraulic pan brake folder

Kingdom hydraulic pan brake folder

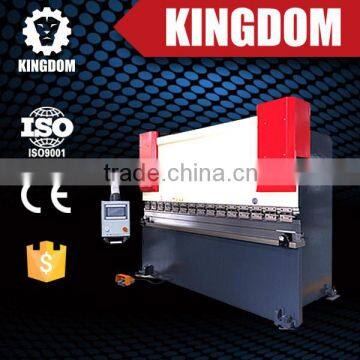

Hydraulic press brake model

Gross Weight and Packing Dimension depend on customers' needs.

Design and specifications subject to change without notice.

I. Introduction

KINGDOM’s engineers can design the exclusive machine according to the request from worldwide customers.
Our press brakes have the advantages of high quality, durability and high precision. The main frames of machine are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

Adjustable synchronized torsion bar with positive stop system which is controlled by the Digital Control unit, the bending beam parallelism tolerance will be consistent and accurate to 0.01mm.

II. Features

1.The whole structure:
• Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating to eliminate stress, high strength and good rigidity.
• Mechanical torque system makes sure the synchronization of cylinders.
• The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.
• Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

2. Hydraulic system:
• Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
• Oil seals by Japanese, NOK.
• Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.

3. Servo motorized back gauge:
• CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
• Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
• High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of back gauge.

4.Electrical parts and protection device:
• Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
• Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
• Light screen protection or Laser protection are optional.

III. Standard Accessories

• Swivel pendant control unit operation
• Sliding front sheet support arms.
• Emergency stop buttons conveniently located on control panel and foot control.
• Mobile dual operation foot control.
• Segmented offset top punch.
• Solid one piece four way multi vee (''v") die block.
• Quick action top punch tool holder system with wedge type adjustment.
• Powered operated lead screw back gauge
• Oil tank level indicator.
• Metal constructed safety guarding surrounding machine with clear side viewing panels.
• Integrated hydraulic system allowing rapid approach switching automatically to slow bend.

Optional:
• NC control system Estun E10
• NC control system Estun E20
• CNC control system Delem DA-41
• CNC control system Delem DA-51
• CNC control system Delem DA-56
• CNC control system Delem DA-65W

IV. Photos
