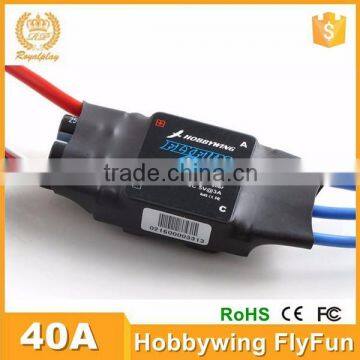

Advanced Hobbywing FlyFun 40A for RC Quadcopter Aircraft

FOB Price

USD $17.99 - $23.19 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Advanced Hobbywing FlyFun 40A for RC Quadcopter Aircraft

Features

Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
User programmable.
Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
Compatible with Lipo battery and NiCd/NiMH battery.
Internal timing can be changed to be suitable for different brushless motors.
Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Extreme low resistance PCB is used at the power output section, the whole ESC has super current endurance capability.
Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

Specifications

Specifications

Output	Continuous 40A, Burst 55A up to 10 seconds.
Input Voltage	2-6 cells lithium battery or 5-18 cells NiCd/ NiMh battery
BEC	3A / 5V switching mode BEC
Refresh rate of the throttle signal	50Hz to 432Hz
Max Speed	210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = BrushLess Motor)
Size	60mm * 28mm * 15mm
Weight	38.8g
