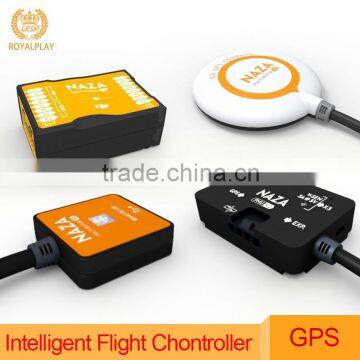

DJI Naza-M V2 with GPS Flight Controller for Hexacopters drone
- Shenzhen
- Credit Card
You May Like
-
100% New High Quality DJI Wookong M Flight Controller for Drone Quadcopter Hexacopter Octocopter
-
DJI 2014 new inspire 1 Transforming Quadcopter with 4K Camera
-
DJI newest professional aerial photography drone Inspire 1with Dual Remotes
-
Advanced Hobbywing FlyFun 40A for RC Quadcopter Aircraft
-
Professional Hobbywing Platinum 30A OPTO PRO Brushless ESC for Quadcopter
-
HOT SELL Hobbywing XRotor-20A RC Drone Brushless ESC for DIY Quadrocopter
Product Details
Type | Other, Flight Controller for Multi-rotor | Power | Battery | |
Material | Other | Radio Control Style | RC Hobby | |
Place of Origin | Guangdong, China | Brand Name | Royalplay | |
Model Number | DJI Naza-M V2 |
Product Description
Specifications
9 TYPES MULTIROTOR CONFIGURATIONS SUPPORTEDADVANCED ATTITUDE STABILIZATION ALGORITHMS
INTELLIGENT ORIENTATION CONTROL (IOC)
SPECIFICATIONS
Basic Performance
Supported Multi-Rotor | Quad-rotor I4, X4 Hex-rotor I6, X6, IY6, Y6 Octo-rotor I8,V8,X8 |
Supported ESC Output | 400Hz refresh frequency |
Recommended Transmitter | PCM or 2.4GHz with minimum 4 channels |
Working Voltage Range | MC:4.8V~5.5V VU Input: 7.4V ~ 26.0 V (recommend 2S ~ 6S LiPo) Output(V-SEN port red wire): 3A@5V(burst current:7.5A) |
Power Consumption | MAX: 1.5W(0.3A@5V) Normal:0.6W(0.12A@5V) |
Operating Temperature | -10°C ~ 50°C |
Assistant Software System Requirement | Windows XP sp3 / Windows 7 / Windows 8 |
Flight Performance
Hovering Accuracy(GPS Mode) | Vertical:±0.8m Horizontal:±2.5m |
Max Yaw Angular Velocity | 200°/s |
Max Tilt Angle | 35° |
Ascent / Descent | 6m/s,4.5m/s |
Hardware
Weight | MC:27g PMU:28g GPS:27g LED:13g |
Dimensions | MC: 45.5mm x 32.5mm x 18.5mm PMU: 39.5mm x 27.5mm x 10.0mm GPS & Compass 46mm(diameter)x10mm LED: 25mm x 25mm x 7.0mm |
Built-In Functions | Multiple Autopilot Control Mode Enhanced Fail-safe Low Voltage Protection S-Bus Receiver Support PPM Receiver Support Independent PMU Module 2-axle Gimbal Support |
FEATURES
9 TYPES MULTIROTOR CONFIGURATIONS SUPPORTED
The Naza-M V2 is a powerful flight controller for enthusiast, commercial and industrial flyers. It’s easy to install, simple to configure and above all, extremely stable. Nine types of traditional motor mixes are supported, making it ideal for every setup.
FREE GROUND STATION SUPPORT
16 point Ground Station is available free for both iPad and PC, without serial number verification. 2.4G Bluetooth Datalink required
ADVANCED ATTITUDE STABILIZATION ALGORITHMS
The Naza-M V2 boasts the extraordinary stability you would expect of all DJI flight control systems and combines it with unparalleled maneuverability with and without GPS. Built into it are automatic GPS course correction plus GPS and compass interference monitoring, which combine to offer more stable flight and minimal magnetic interference.
TAKEOFF ASSISTANCE
Drift-free, stable take offs on different surfaces is ensured with Takeoff Assistance.
INTELLIGENT ORIENTATION CONTROL (IOC)
Forward on a multirotor is normally the direction the nose is facing, which can get confusing when turning, but with IOC switched on, direction is hugely simplified.
MOTOR FAILURE PROTECTION
If a hexrotor or octorotor equipped with a Naza-M V2 suffers a motor failure in flight in attitude or GPS mode, it will maintain its altitude and rotate around the stopped motor. This allows it to fly safely back to home and land.
FAILSAFE AND AUTO GO HOME SUPPORT
If the connection between the multirotor and the remote control are disconnected during flight, a failsafe system will activate. Provided there was enough GPS signal at the time of the disconnection, the multirotor will fly back to its point of takeoff and land automatically. This feature can also be triggered manually using the One-Key Go-Home function activated using Assistant.
ASSISTANT FOR SMARTPHONE
Using a BTU with power efficient Bluetooth, parameters can be adjusted at any time through a smartphone without excessive power use. Connection records are automatically stored by the Bluetooth module and protected by password. Parameters can be automatically synchronized to the cloud restored immediately when mobile devices are changed.
