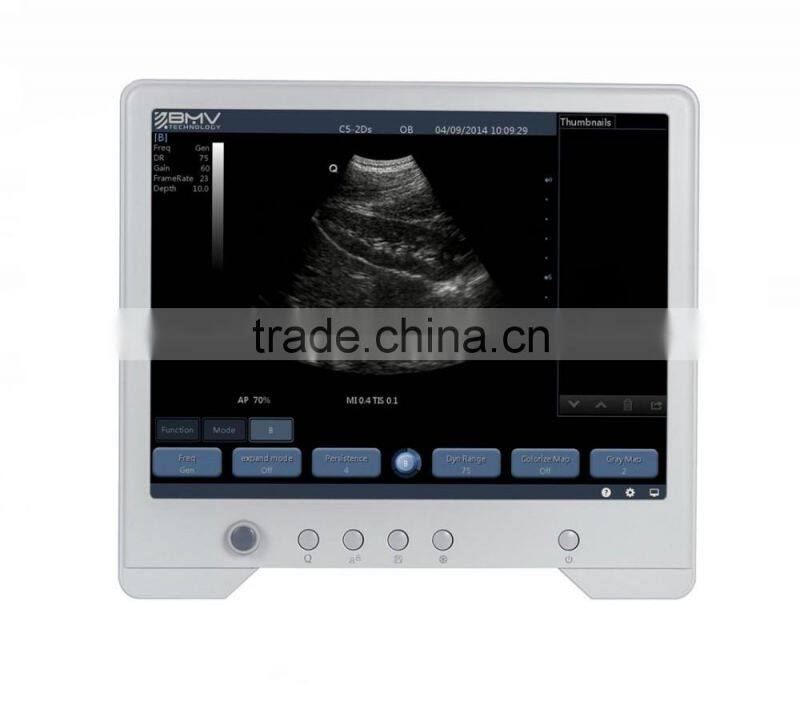

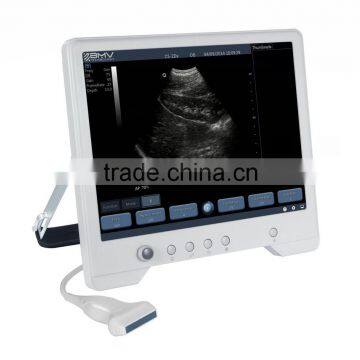

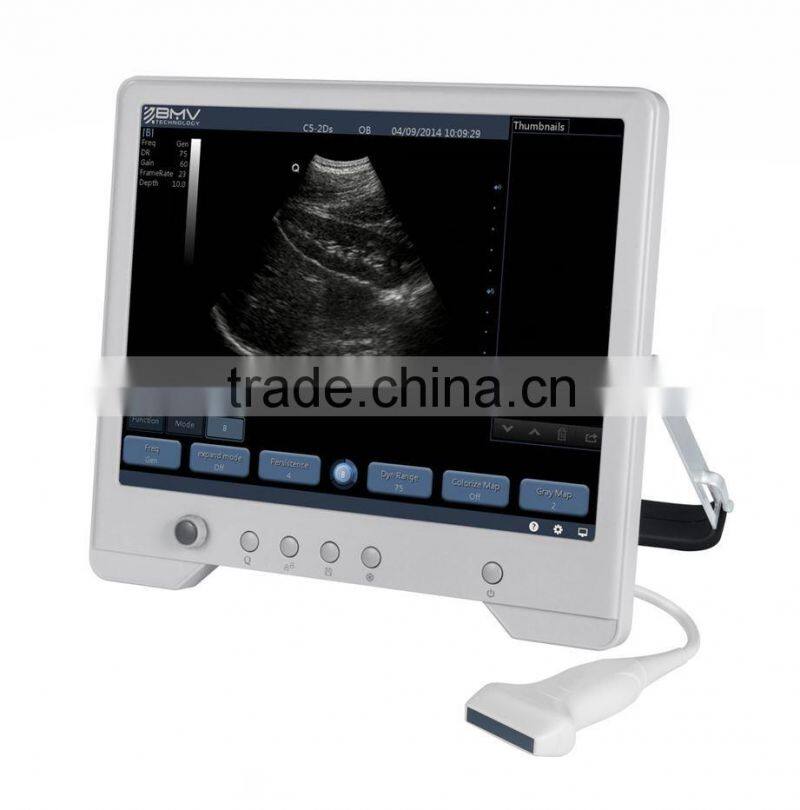

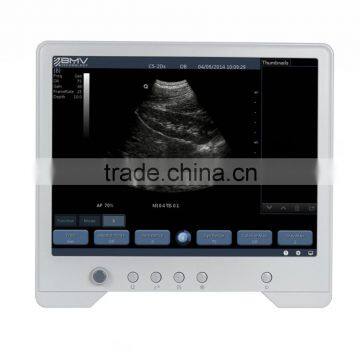

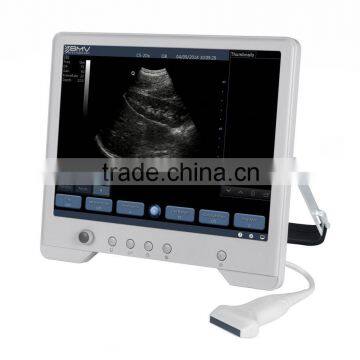

B Mode Portable Ultrasound Price TS20

FOB Price

US$ 300 - 350 / Unit

1 Unit(Min. Order)

Port wuhan
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Doppler Ultrasound Equipment		Brand Name	darppon
Model Number	TS20		Place of Origin	Hubei, China

Product Description

B Mode Portable Ultrasound Price TS20

Product Description

Technical Specification

B&W mode	B,M,2B,B/M,4B
Display	15”LCD monitor
Transducer frequency	2-11Mhz
Digital technology	Wide-angle imaging
Scanning depth	300mm
Pre-processing	Cloud processing technology
Post-processing	Image enhancement
Cine-loop	334 frame cine loop memory
USB ports	2
Zoom	Pan zoom
THI	Tissue Harmonic Imaging
Qopt	Optimize
DICOM 3.0	DICOM 3.0
B mode	Distance, angle, area, volume, trace length, distance ratio
M mode	Distance, time, slope, HR
Software packages	Abdomen, OB, gynecology, small Part
Transducer connector	2 active transducer connector ports
Peripheral ports	Video,2 USB ports,1 networking port,1 power inlet,1 equipotential
Power supply	AC 100-240V 50/60HZ <80VA
Dimensions(main unit)	358mm(W)´366mm (L)´65mm (H)
Packing dimensions	378mm(W)´376mm(L)´85mm(H)
Net weight	Approximately 3.0kg
Gross weight	Approximately 5.0kg

Multi-frequency probes

3.5 MHz convex probe
Application:
Abdomen,GYN,OB

7.5 MHz linear probe
Application:
Vascular,Small Parts

6.5 MHz trans-vaginal probe
Application:
Vaginal

5.0 MHz micro-convex probe
Application:
Cardiac

Standard Configurations

Q3 B/W main unit
15”LCD with high resolution: 1024*768
Two USB ports
One composite video signal output
One networking port
One power inlet
One equipotential terminal
Two transducer connectors
Plenty of measurement&calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes

Optional
3.5 MHz convex probe
7.5 MHz linear probe
6.5 MHz trans-vaginal probe
5.0 MHz micro-convex probe

Hot Sale

Our Services

1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.

2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.

3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
