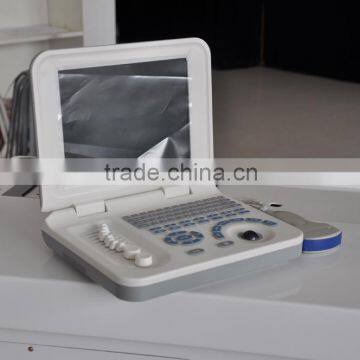

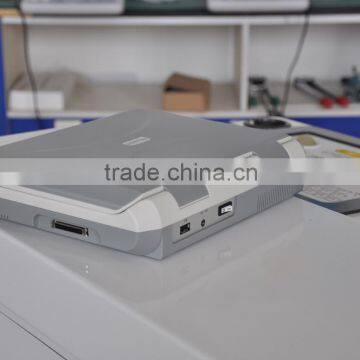

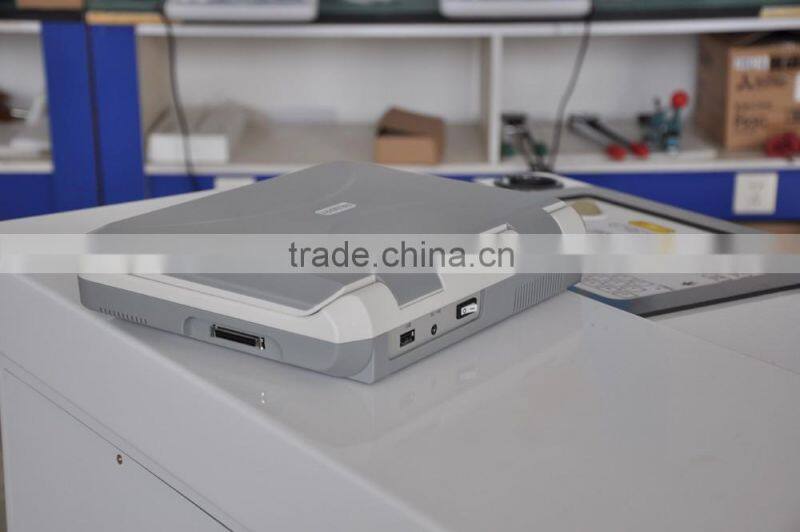

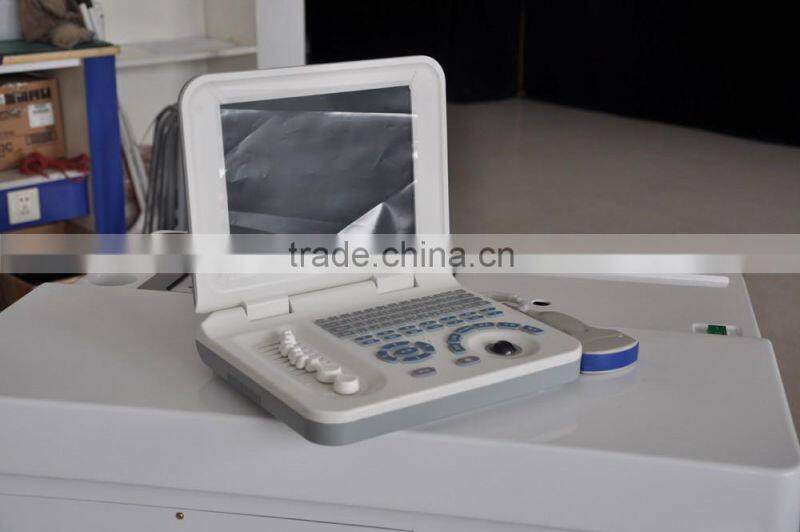

Wholesales Medical Supplier Portable Laptop Ultrasound Machine for Pregnancy

Wholesales Medical Supplier Portable laptop Ultrasound Machine for Pregnancy

Applications:
Diagnosis of liver, gallbladder, kidney, spleen, pancreas, heart, thyroid gland, breast, uterus, bladder, ovary, etc.
Clinical examination and diagnosis of abdomen and department of obstetrics and gynecology in the hospitals of county, rural-town and town.
Supervising stations of Planned Parenthood in the city, county, rural-town and town to be suitable for the examinations of early pregnancy, contraceptive ring, perinatal period of pregnant woman, etc.

Standard Configuration:
Main unit
3.5MHz convex probe
All accessories

Optional:
7.5MHz Linear probe
6.5MHz trans-vaginal probe
Video Printer (MITSUBISHI P93)

Specifications:
v Display Mode: B, B/B, 4B, B+M, M;
v Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;
v Scanning depth: ≥ 170mm;
v Lateral resolution: ≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm);
v Longitudinal resolution: ≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm);
v Blind: ≤ 5mm;
v Geometric position accuracy: lateral ≤ 15%;
v Longitudinal: ≤10%;
v Dynamic range: 0~120dB adjustable;
v Monitor: 10.4 inch high-resolution;
v Grey scale: 256;
v Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks          (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on;
v Annotation: hospital name, patient’s name, gender and age, full-screen character annotation, real-time clock      display;
v Body marks: 64;
v Puncture guide: displayed under B mode;
v Gain control: 8 segments TGC and full gain can be adjusted respectively;
v Image reverse: left/right, black/white, up/down;
v Cine loop: 256;
v Permanent storage: 128;
v Image display: continuous playback, pieces of view Video;
v Output: SVGA, PAL, video recorder, Image workstation and etc;
v USB output;
v Machine size(mm): 300(L)×245(W)×60(H);
v Power: AC 220V±22V 50Hz;
v Input power: ≤ 300VA;
  Continuous work hours: ≥ 8h.
