High Quality Tungsten Carbide Nib
- any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | TD | |
| Model Number | TDC | Type | Power Tool Parts |
Product Description
Tungsten carbide nib
Detailed Product Description
1.Professional manufacturer for tungsten carbide items with more than 10 years experience
2.ISO 9001-2008 Quality Control System
3.OEM, ODM project accepted
4.All payment terms supported
Tungsten carbide nib
Tungsten carbide nib , with high hardness, wear resistance and high toughness, and it includes cemented carbide punching mould, drawing mould and so on.

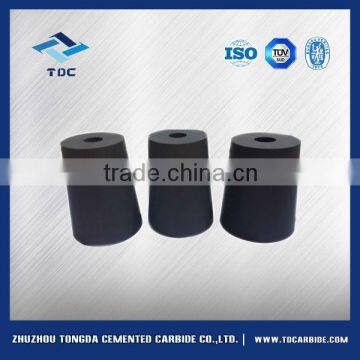

Picture Reference
Tungsten carbide nib
Grade Information
Grade | ISO Grade | Properties | Application | ||||
Density (g/cm³) | Hardness (HRA) | TRS (Mpa) | |||||
YG6 | K20 | 14.80-15.00 | 89.7-90.8 | ≥2400 | Wear-resistance tool used in mining; | ||
YG9 | K40 | 14.50-14.62 | 88.5-89.5 | ≥2600 | |||
YG8 | K30 | 14.60-14.80 | 88.8-90.1 | ≥2600 | Used in wire-drawing die; Drawing die; | ||
YG10C | / | 14.40-14.60 | 86.8-87.8 | ≥2700 | Impact drill bits inserts; Cutter tool; | ||
YG11C | / | 14.30-14.50 | 86.2-87.4 | ≥2700 | Cold-heading dies; Cold press dies; | ||
YG12C | / | 14.20-14.40 | 86.0-87.0 | ≥2700 | |||
YG13C | / | 14.15-14.45 | 85.8-85.7 | ≥2800 | Oil drill bit inserts; | ||
YG15C | / | 14.00-14.20 | 84.8-86.3 | ≥2800 | Oil drill bit inserts; Dies; | ||
YG20C | / | 13.50-13.70 | 82.8-85.4 | ≥2800 | Screw dies; | ||
Products Range
Rods & End mill
Strips & Plates
Cutting tools( saw blade, mining tool, insert, tips,etc)
Ring & Roller
Solutions for Polyolefins Industry
Application in Coating Industry
Wear parts of Concrete Pump
Products for mining industry
Other Customized Items
Tungsten Heavy Alloy
