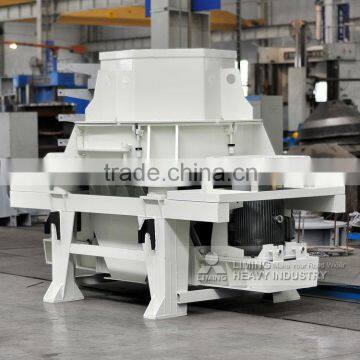

High sand making equipment PCL Vertical Shaft Impact Crusher

Specifications

PCL vertical shaft impact crusher Overview

Sand Making Machine (namely PCL vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Making Machine absorbs advanced technology of the same products of Barmac Company of America, now it is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, such materials are with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.



PCL vertical shaft impact crusher Overview Working Principle

The raw material enters into the PLC vertical shaft impact crusher through feed hopper and is devided into two parts by material-dividing plate. One enters into impeller through the center of material-dividing plate, be accelerated soon. The acceleration is hundreds of times than gravitational acceleration. Then the raw material is threw out from the three evenly distributed flow channels at the speed of 60-70m/s. The raw material first collides with the falling material and collides with the material liner in vortex cavity together. The raw material is rebounded by material liner and threw out to the top of the vortex cavity. The moving direction changes and deflects down. The material which is threw out from flow channels forms a continuous material liner. In this way, the material is hit, crashed and ground for twice or more times in vortex cavity. The crushed material discharges from outlet in the bottom. In the whole crushing process, the raw material is crushed by hitting with itself instead of with metal. The raw material hit, crash and crushed with material liner which reduce the pollution and extend the wear time. And the clever self-circulation of the airflow in vortex cavity eliminate dust pollution.

PCL vertical shaft impact crusher Overview Case

Stone Crushing Plant For Concrete Mixing In VIETNAM

Materials:Andesite Rock.

The max input size: 30mm

The output size: 0-6mm, 6-12mm, 12-25mm.

Equipment: The main equipments are two sets PCL1050 sand making machines, one set VSI8518 sand making machine, three sets 3YZS1848 vibrating screens, Two sets XSD3016 Sand washing machine, several belt conveyors.
