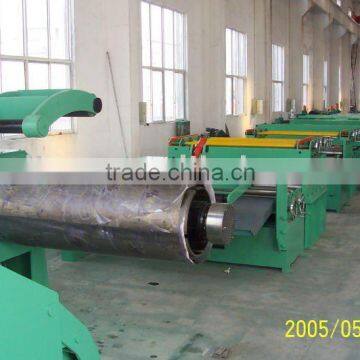

WuXi Metal Processing Straightening /Leveling machine(LINE)

Specifications

Technical Parameter & Composed Devices

I.         Technical parameter

1. Material of processible coiled plate apply for carbon steel plate

δ b≤700Mpa;

1. Thickness of coiled plate δ=0.15-0.8mm;
2. Width of coiled plate  1250 mm;
3. Precision of straightening  width tolerance ±0.02mm;
4. line speed  40-80 m/min ;
5. Loading capacity of uncoiler machine(feeding machine) 10T;
6. Power 380V three-phase electricity 50Hz;
7. The main components & damageable component in electronic equipments is accordance with GB stipulation;

1. Discharging machine                   loading capacity of  10T

This is composed of bottom stand, frame, conical discharging tray, manual pushing machine, etc.

1. Guiding (peer to peer) device

This is composed of worktable frame, guiding pole, adjustment device, moveable plane plate, etc.

1.Straightening  machine

Standard facilities a recomposed of uncoiling machine ,straightening machine .

1. Slitting machine

Power part: This is composed of power-stand, 400decelerator, motor:11KW, gear distributing case, coupler, spindle, connecting-cover, etc.

Host machine: This is composed of bottom-stand, fixed torii,, knife pivot(150mm, 2pcs), knife pivot lifting and pressing down adjustment device, accompany of  blade, separating cover, rubber band.

1. Waste selvage device

This is composed of frame, waste selvage axle, waste selvage tray, friction wheel, accompany of strap wheel,strap

1. Damping device for preliminary dividing& pressing

This is composed of frame, preliminary dividing axe, torii, pressing axe,  damping device, lifting and pressing device for pressing axe, pressing frame, dividing axe, accompany of dividing slice, separating cover, etc.

1. Recoiler

This is composed of frame, big bearing-stand, recoiling axle, recoiling expansion device, expansion recoiling plate, moveable supporting arm, accompany of deceleratorJZQ650, speed adjustable motor: 37KW, etc.

7.   Electric operation system

III other terms

 1. payment terms  deposit 30% with the contract ,the balance deposit before the shipment.

2. spare parts  the one set of knife ,and some sealed loops . one manual book in English .

3. warranty  one years and supply service for all the life
