2mm China Steel Plates Straightening Machine

Specifications

                                       2mm china steel plates straightening machine

I. Technical Parameter of 2mm china steel plates straightening machine:

1.     Specifications:

a.     applied to: carbon steel coils, galvanized steel coils

b.     material quality : first class steel coils of the international standard

c.     tensile strength:δb≤450Mpa,δS≤260Mpa

d.     thickness:0.25-2mm

e.     width:1300(Max)

f.      diameter of leveling rollers:  φ65

g.     distance of leveling rollers:70mm,

h.     material of leveling roller:GCr15,hardness:HRC55-60

i.      weight of machine:around 15T

2.     Finished products parameters:

a.     diagonal tolerance:≤±2mm/2000mm

b.     length tolerance:≤±10.5mm/2000mm

3.     Other parameters :

a.     power:380V/50Hz/3Ph

b.     line speed:0-30m/min

II. Brief introduction of 2mm china steel plates straightening machine :

1. It is composed of 17 leveling rollers, 2 groups of supporting rollers, driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main force rollers. The total quantity of the rollers is 19, the diameter is φ65 and the distance between the rollers is 70mm, with supporting rollers.

2. The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.

3.The working rollers can be adjusted the gap electrically which is controlled by 2 hand wheel to ensure the leveling quality.

4. Driving model: all the independent rollers and gear box are driven by 22Kw frequency control motor

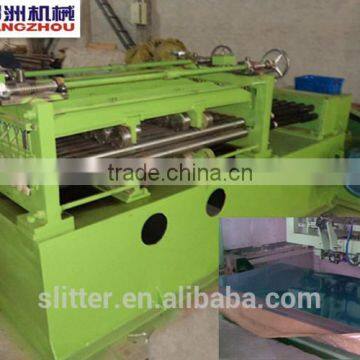

The pictures of 2mm china steel plates straightening machine:
