Q235 Simple picture Steel Slitting Line

      Q235 Simple picture Steel Slitting Line

I.   Technical parameters of Q235 Simple picture Steel Slitting Line

1. Material of processible coiled plate: apply for carbon steel plate 450Mpa;
2. Thickness of coiled plate 0.3—1.5mm;
3. Width of coiled plate slitting 500-1250mm;
4. Precision of slitting :  width tolerance: ±0.05mm;
5. Slitting speed  0—50m/min ;
6. Loading capacity of uncoiler machine(feeding machine) :10T;
7. Coil I.D  480-520mmmm;
8. Coil O.D  900-1200mm;
9. Knife pivot diameter of slitting  120mm;
10. Slitting  blade 120×220×15;
11. Material of slitting blade  6CrW2Si;
12. Hardness of blade  HRC58°—60°;
13. Recoiler I.D  508mm;
14. Power  380V three-phase electricity 50Hz;

 2. Slitting machine

 4. Scrap winder

 5. Hydraulic Tension stand

 6. Hydraulic Recoiler

 7. Electrical system

8. Hydraulic system

Layout of Q235 Simple picture Steel Slitting Line

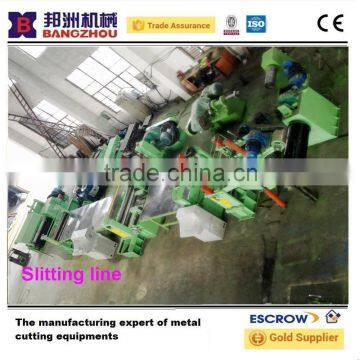

Photos of Q235 Simple picture Steel Slitting Line

Blades arrangement

Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.

Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.

We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!

Factory image--- Factory one and facory two

Workshop Image-------different departments cooperate together
