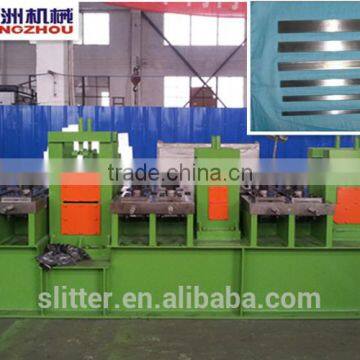

12mm Thick, 200 Width Steel Flat Bar Straightening Machine, Straightener

Specifications

Parameters of steel flat bar straightening machine, straightener:

1. Technical parameters

A. Applied to: carbon steel

B. Tensile strength:δb≤450Mpa,δS≤260Mpa

C. Flat bar thickness:6mm-12mm

D. Flat bar width: 25mm-200mm

2. Finished parameters

A. Precision of width: +0.3~-0.9mm

B. Precision of fixed length:0~+5mm

C. Bending:≤2.5mm/m

D. pitch of cutting: ≤2mm

3.  Other parameters

I. Line speed: 30m/min

J. Production: incessantly.

K. Operation person: 1 technician and 1 common worker.

Composed devices of steel flat bar straightening machine, straightener:

1. Simplified de-coiler

2. 7 roller-straightener with drive

3. Chamfering and extrusion machine

4. 2 roller-pinch and press device

5. Longitudinal straightener

6. Flat surface straightener

7. Hydraulic tracking cutting machine

8. Fixed length receive table

9. Electrical control system

The layout of steel flat bar straightening machine, straightene:

12mmx200mm best seller  hot rolled steel flat bar straightening machine, straightener  :

Company information:

   Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.

Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.

We welcome all friendsto visit us. We are sincerely looking forward to receive your guidance and business cooperation!

Oversea engineers are available, below is our oversea installation team:
