Brightness led module for display advertising
- 30000 Piece / Pieces per Month
- Shenzhen
- T/T
You May Like
-
Super light smd 5050 led module for lighting box
-
Advertising LED pixel led with 3 Years warranty
-
Lighting p10 led module with 3 Y warranty
-
multi-colors invisible led string lights for outdoor advertising lights
-
Colorful led string lights rgb dmx for signboards
-
Micro led copper wire string lights for advertising words
Product Details
Model Number | EWI-M7512R3XSMD5050 | Chip Material | InGaN | |
Emitting Color | Other, R/G/B/Y/W/RGB | Luminous Intensity | 10000 | |
Luminous Flux(lm) | 60lm | Optical Attenuation(%) | 0.8 | |
Power | Other, 0.72W | Power Dissipation | 0.72 | |
Color Rendering Index(Ra) | 75 | Color Temperature | 2700-7000K | |
Operating Temperature(℃) | -20, 60 | Storage Temperature(℃) | -20, 60 | |
Place of Origin | Guangdong, China | Brand Name | EWI | |
Certification | CE |
Product Description
Specifications for Waterproof p10 LED Module
Item No. | EWI-M7512R3XSMD5050 |
Lighting source: | Epistar SMD5050 |
LED Qty | 1-4leds/pcs |
Colors | R/G/B/Y/W/RGB |
Inputting voltage: | DC 12V |
Current: | 20~30mA |
Power: | 0.5-2W |
Dimension: | 75*12*8mm |
Viewing angle: | 120 degree |
Lumens/Led: | 20-25lm |
Working temperature: | -20-60 |
LifeSpan: | 50000Hrs |
IP Grade: | IP65 |
Warranty: | 2 Years |
Features for 5050 p10 LED Module
1. Wide applicability, easy to install and maintain
2. Extremely luminous, with wide viewing angle
3. Energy saving and environmental friendly
4. Various colors are available
5. Very bright and low power consumption
6. Long lifespan: More than 50, 000 hours;
7. High flux output and low thermal resistance;
8. Lower light decay and high brightness.
Advantages for 5050 LED Module
1. Stable brightness with unstable power;
2. Easy installation with 3M double-sided tape or screws;
3. Can 20-25pcs led modules per string;
4. Very slim shell, suitable for spacious conditions;
5. Top quality with lower prices.

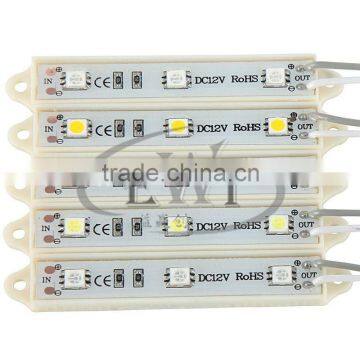

Products photos
Application for 5050 LED Module
1. Idea for in cabaret, cabinet, furniture, landscape, and architectural lighting
2. Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
3. For cable and fixing hole
4. Channel letters backlighting
5. Advertisement signs acklighting
6. Advertisement light boxes backlighting;
7. Shop windows, showing, exhibition decoration;
Workshop photos
Installation Instruction for 5050 LED Module
1. Main power cable dimension: should exceed 2x1.5mm². To prevent damage from overheating caused by overload, the extended module cable (if necessary) should adopt dimension above 0.75mm²/18#.,Cable length between power and module should not be exceed 2m, if not it’ll suffer from power loss the total power consumption will also increased.
2. Adopt method 1, the maximum is 20 PCS. (Don’t over-connecting).
3. Adopt method 2, the maximum is 25 PCS. (Don’t over-connecting).
4. Take off the adhesive tape from the back of modules, stick them in the light box or advertisement board for initial settlement, then fix the module by 2 piece of ST2.9x10 mm self tapping screws, or you can also fix the module by glass glue.
5. The standard number is 20 pcs for each string; they also can be cut off on customer’s requirement.
6. During the connection,using diagonal pliers to cut off power cable between modules, peel off the plastic around 10mm, wiring the cables and then connect them to their respective isolation port(the white-red cable heads to positive,the white cable for negtive).Do remember check the conductivity and reliablity of the cable after the connection, genernally, they can’t be pulled out of the port by middling force.
7. If there are extra cable for the string-end module, peel off the cable coat by 10mm (around)then connect then into isolation port.
8. To make sure that the waterproof and anti-corrosive reliability, grease some silicon glue (neutral glass glue or waterproof glue.) into the connection port for further protection.
9. Don’t touch the product when they are electrified.
10. Use reliable power driver that with certifications. (With short circuit protection, overload protection and over-current protection.)
5050 LED Module:
20pcs/reel
25pcs/reel
2800pcs/carton
Size for CTN: 52*31*41cm
Weight for CTN: 1.35KG.
Special desigh according to customer's request.
FeDex, DHL, Ocean or Air can be choosed according to your requirements;
We will search the most economical and reliable shipping agency to ship the goods safely.
By Express: DHL, FeDex, UPS, TNT;
By Air: When your qty exceeds 100+kg, this will be more economical than express.
By Sea: If your order is quite large, then we can ship to you via Ocean.
