Home > Products > Visual Fault Locator > SENTER ST816 Pen Type Red Source Fiber Optic VFL 3KM to 30KM
SENTER ST816 Pen Type Red Source Fiber Optic VFL 3KM to 30KM
- QINGDAO
- Credit Card
You May Like
-
VFL,Fiber Optical Visual Fault Locator,20mw
-
SENTER ST816 Multifunction Wholesale Red Laser Pointer 10mw/15mw/20mw
-
ST816 Visual Fault Locator VFL
-
Visual Fault Locator ST816B 1mw,10mw,15mw,20mw,25mw,30mw
-
ST816 SENTER Visual Fault Locator,fiber Optics Testing
-
ST816 Pen-type Visual Fault Locator VFL10mw Portable VFL/ Factory Price
Product Details
| Place of Origin | Shandong, China | Brand Name | senter | |
| Model Number | ST816 |
Product Description

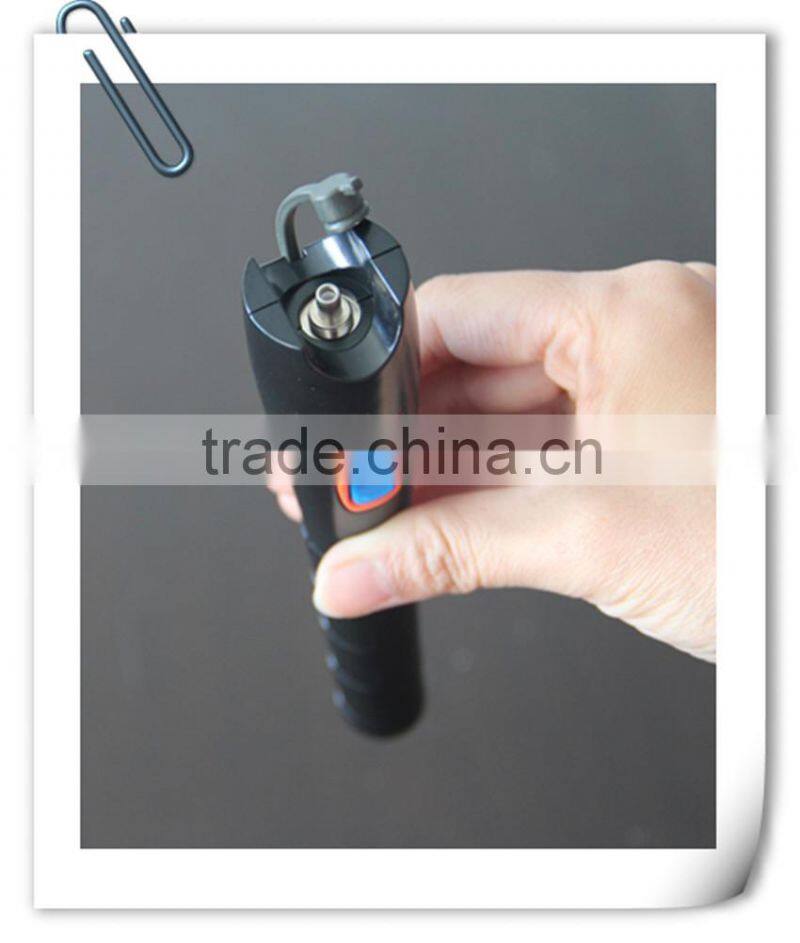

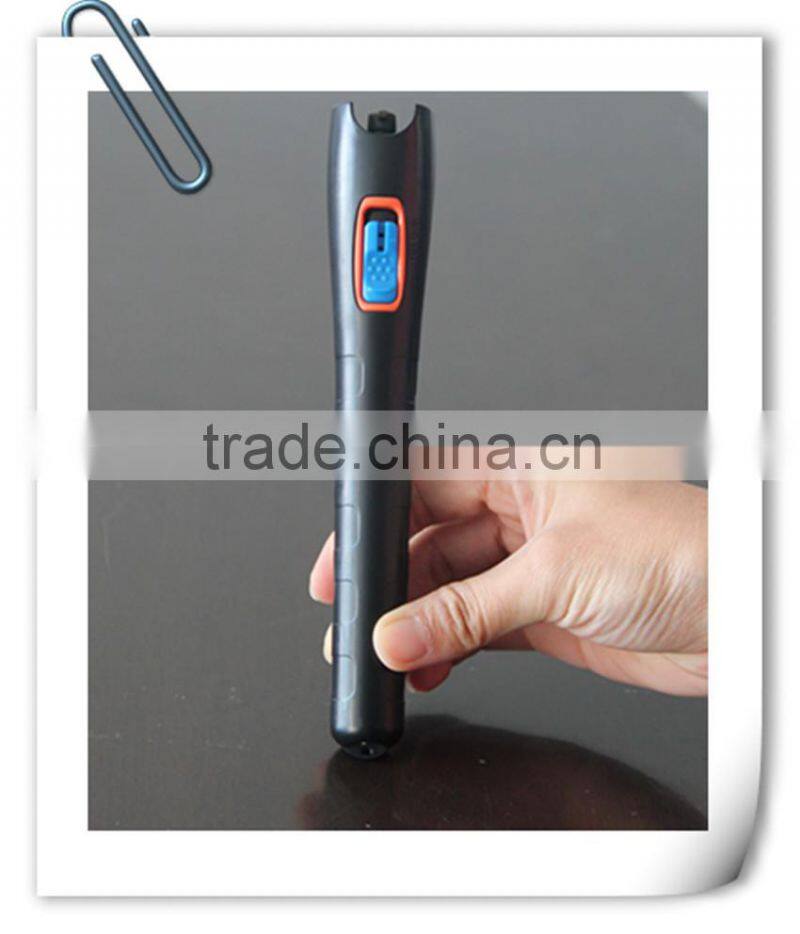

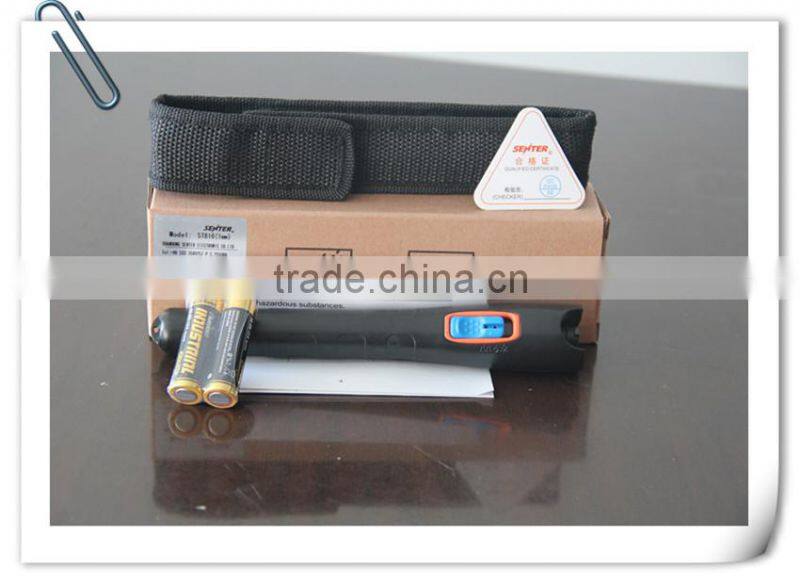

SENTER ST816 pen type red source fiber optic VFL 3KM to 30KM
1. Summary
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
2. Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
3. Specifications
Wavelength | 650nm±10nm |
Light source | FP-LD laser |
Output power | 1mW, 3mW, 10mW, 20mW (optional) |
Approx. test range | 3km(1mw), 5km(3mw), 10km(10mw), 15km(20mw) |
Connector | 2.5mm universal adapter 1.25mm connector optional |
Working mode | CW or 2Hz modulation |
Operating temperature | 0~+40 °C |
Storage temperature | -25~+70 °C |
Power | 2pcs AA battery |
Working hours | ≥ 60(1mW) |
Weight | 100g(excluding batteries) |
Dimension (mm) | Φ: 30; L: 185 |
