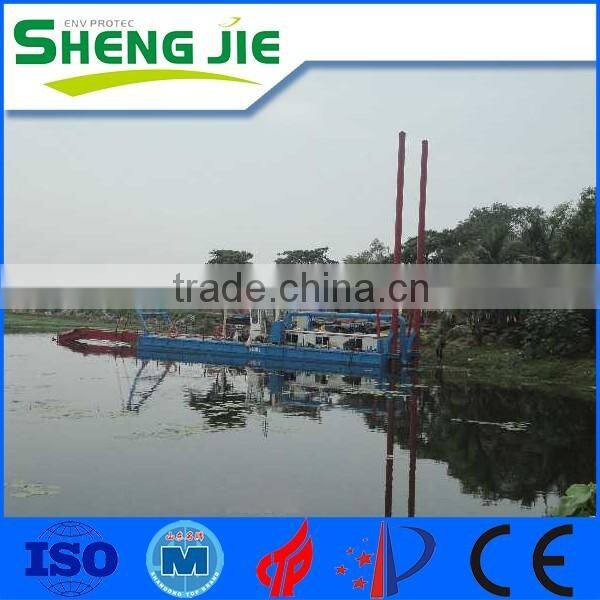

Hot Sale 250CBM/H Cutter Head Suction Dredger

    SHENGJIE Hydraulic Cutter Head Dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.


    The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the SJ-CSD250 dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom.


    The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations.

    The side pontoons are connected to the main pontoon by means of bolts.


    The hull steel plate used is CCSB (shipbuilding steel plate ).


Main Features

1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Completely assembled and fully tested before delivery
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from stock
9. Designed as standard to qualify for Coastal Waters Certificate
