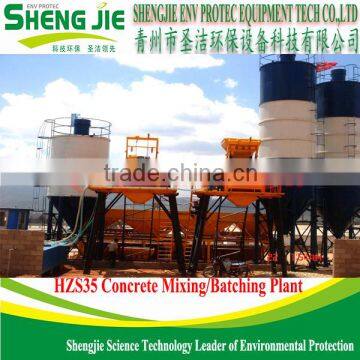

factory supplier stationary hzs35 concrete batching plant

FOB Price

USD $55,000 - $65,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	SHENGJIE
Model Number	HZS35	Power(W)	62kw
Weight	10t	Certification	ISO9001:2008
Warranty	12 Months	After-sales Service Provided	Engineers available to service machinery overseas

factory supplier stationary hzs35 concrete batching plant

About Us

Qingzhou Shengjie Env Protec Equipment Tech Co. Ltd is located in Qingzhou

city, Shandong Province. established in 2008 with covering area of 110000 square

meters among which modern workshop area 50000 square meters.

As a national high-tech enterprise,we have abundant capital and professional

technical R&D team .currently employing over 200 workers, including 50 engineers.

Our company is the first to pass ISO 9001:2008 quality system certification in

the same industry , and own dozens of national patent products and technologies.

Our featured products are various kinds of road &bridge construction machinery

and dredging equipment that are popular among overseas market and gains good reputation as well as trust from our clients.

Warmly welcome to visit us.

Model	HZS35 concrete batching plant
Rated productivity	35m3/h concrete batching plant
Batching machine type	PLD1200
Mixing engine	JS750
Max. aggregate diameter	80/60mm
Motor power	30kw
Model	Skip hopper feeding
Aggregate bin	8m3/single bin
Aggregate metering accuracy	±2%
hopper volume	1.2m3
powder metering accuracy	±1%
powder metering range	10-400kg
Water metering	±1%
Total power	62Kw
Total weight	10T
*Floor Area(LW)**	25×4(m)
Discharging height	3.8 m
Silo (optional-parts)	100T/Φ2900
Manual Butterfly Valve	D250

Working Process

1	HZS series concrete batching plant consists of aggregate batching system, concrete mixing system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.
2	All aggregates are fed into the aggregate batching machine by loader, and weighed in the weighing hopper or weighing belt. After weighing, they are transported to a hopper or a belt, and then the aggregates are transported to the mixer for mixing.
3	Cement is conveyed into the cement weighing hopper by screw conveyor for weighing, after weighing, cement is poured into mixer.
4	Water is pumped into water weighing hopper by water pump. After weighing, water is sent into the mixer.
5	After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce concrete.
