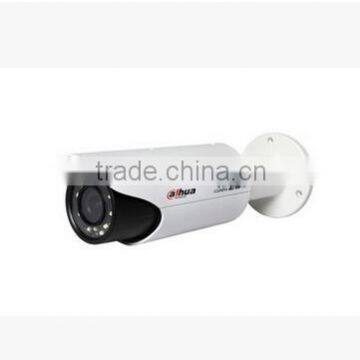

3Megapixel Full HD Network IR-Bullet Camera Dahua IPC-HFW5300C Web Cam

  3Megapixel Full HD Network IR-Bullet Camera Dahua IPC-HFW5300C Web Cam

> 1/3” 3Megapixel progressive scan Aptina CMOS
> H.264 & MJPEG dual-stream encoding
> Max 20fps@3M(2048×1536)&25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7 ~12mm varifocal lens (HFW5300C)
  3 ~9mm varifocal motorized lens (HFW5302C)
> Built-in 2/1 alarm in/out
> Max. IR LEDs length 30m
> Micro SD memory, IP66, PoE

Model :IPC-HDBW5300C
Camera

Image Sensor:1/3”3Megapixel Aptina CMOS
Effective Pixels:2048(H)x1536(V)
Scanning System :Progressive
Electronic Shutter Speed:Auto/Manual, 1/3(4)~1/10000s
Min. Illumination:Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
S/N Ratio:More than 50dB
Video Output:1


Camera Features

Max. IR LEDs Length:30M
Day/Night:Auto(ICR)/Color/B/W
Backlight Compensation:BLC / HLC / DWDR
White Balance:Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas

Lens

Focal Length:2.7 -12mm
Max Aperture:F1.4
Focus Control:Manual
Angle of View:H: 82°(Wide)~ 25°(Tele)
Lens Type:Manual / auto iris (DC)
Mount Type:Board-in Type

Video

Compression:H.264/ MJPEG
Resolution:3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate:Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate:H.264: 32K ~8192Kbps


Audio


Compression:G.711a / G.711u/ PCM
Interface:1/1 channel In/Out


Network


Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol:IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility:ONVIF ,PSIA,CGI
Max. User Access:20 users
Smart Phone:iPhone, iPad, Android, Windows Phone


Auxiliary Interface


Memory Slot:Micro SD, Max 64GB
RS485:N/A
Alarm:2/1 channel In/Out
PIR Sensor Range:N/A


General


Power Supply:DC12V/AC24V, POE (802.3af standard)
Power Consumption:< 7W (-H: +2W, Motorized lens: +2W, AC24V: +2W)
Working Environment:-30°C~+60°C, Less than 95%RH
Ingress Protection:IP66
Vandal Resistance:IK10
Dimensions:104mm × 306.7mm
Weight:1.25 KG
