Product Details
| Place of Origin | Shandong, China | Brand Name | LQ | |
| Model Number | phenolic foam insulation board |
Product Description
made-in China phenolic foam insulation board
Description:
phenolic foam insulation board is a highly efficient energy saving insulation material, with good thermal conductivity and fire resistance. phenolic foam insulation board has passed the E84/BS fire tests according to ASTM standards with proven results of 10 flames spread and 0 smoke develop which complies to most of the North American and European building inspection standards. By using CNC Cutting Machines, foil foam insulation board can be cut into specific pipe insulation sections, pipe support, and insulation boards.
Advantages of phenolic foam insulation board
1) Close cell insulation material, high thermal performance
2) Fire-resistant (BS476 Part 6&7 Class 0, with approved and audited test report)
3) Moisture resistance with low water vapour permeance & low water absorption
4) Light weight but with an excellent structucral strength
5) Environmental Friendly material, CFC & HCFC Free
Applications:
1) Used in HVAC system as air duct insulation board or Pre-insulated Duct Board
2) Used in process/petrochemical applications for the insulation of pipework, tanks, vessel

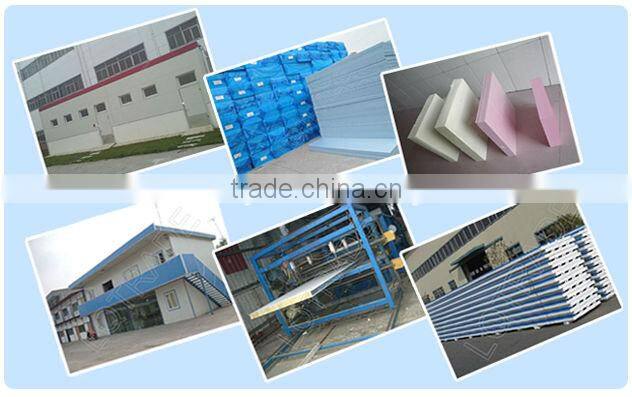

3) Used in roofing, cavity board, external wall board, plasterboard dry lining systems, wall insulation, floor insulation and as a sarking board
4) Specialised applications including fire doors, highly fire resistant panels and for insulation in surface ships, off-shore installations and submarines.
Technical Parameters of phenolic foam insulation board
Density | 40-60Kg/m3 | |
Length | 1.2mm | |
Width | 0.6m | |
Thickness | 20mm-150mm | |
Thermal Conductivity | 0.016-0.035w/cm.k | |
Working Temp | -160 to +190degree | |
Ranking Fire | A1 | |
Water absorption | in 24 hours short term | less than 2% |
