Hot Sell QTJ4-26C Small Semi Concrete Hollow Block Machine Ethiopia

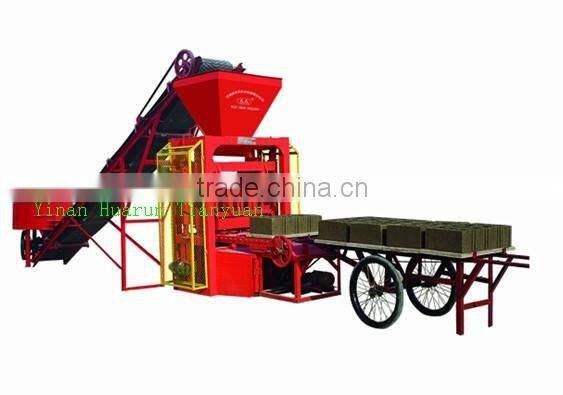

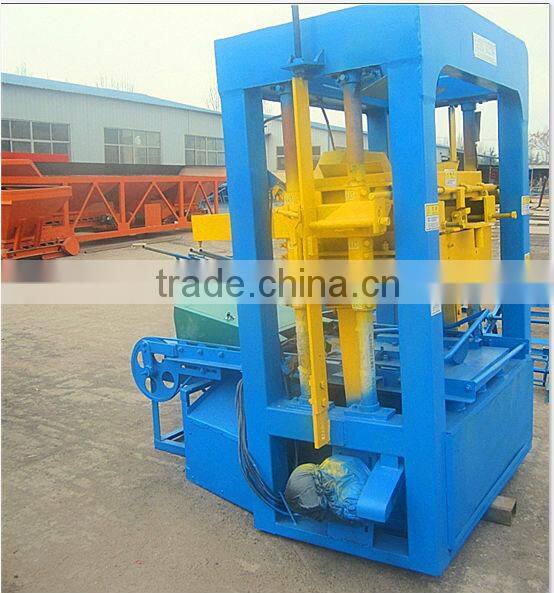

1- Molding machine picture QTJ4-26C,

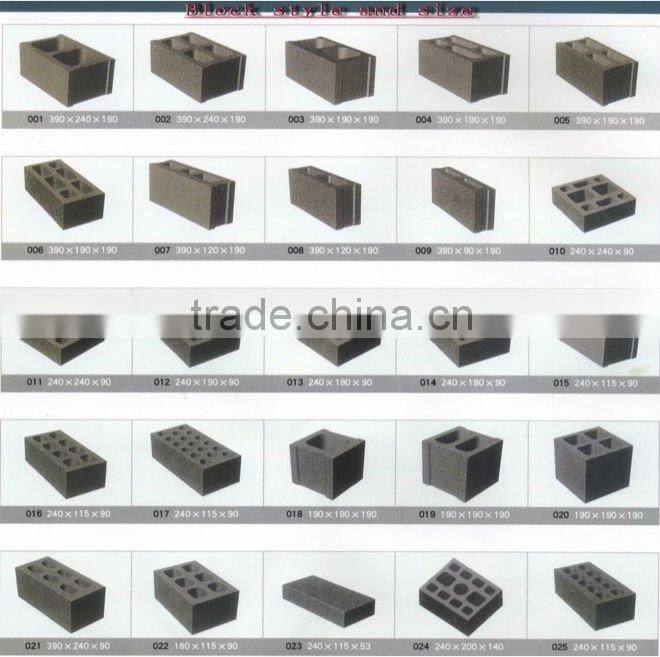

2: Advantage of molding machine.

1-  Semi automatic is more easy installment and operation.

2- The materials feeding from above hopper, easy to control the feeding quantity, it has block conveyor which welded with the molding machine.

3- It could make many kinds hollow blocks and interlocking wall bricks by changing different molds.

4- Quality Insurance:

  PLC and Motors from Siemens Brand, Switch from Siemens or CHTN.

  Molds are made of Manganese steel, long lifetime.

5- Certificate: ISO quality control, CE (MD+LVD).- European Quality

3- Productivity of molding machine.

4- Technical parameters.

1-Main machine Dimmension: 2000x1800x2300mm.

2-Vibration Form: Platform Vibration & Uper Vibration.

3-Vibration Frequency: 4500-5000r/min.

4-Pallet Size: 850x450-550mm.

5-Molding Cycle: 25-40s.

6-Electric Power: 8.85Kw.

7-Main Machine Weight: 3.5Ton.

8-Material Consumption: 40-70Ton/day.

9-Electric Consumption: 24Kw.h/day.

10-Water Consumption: 3ton/day.

11-Worker: (4-5person).

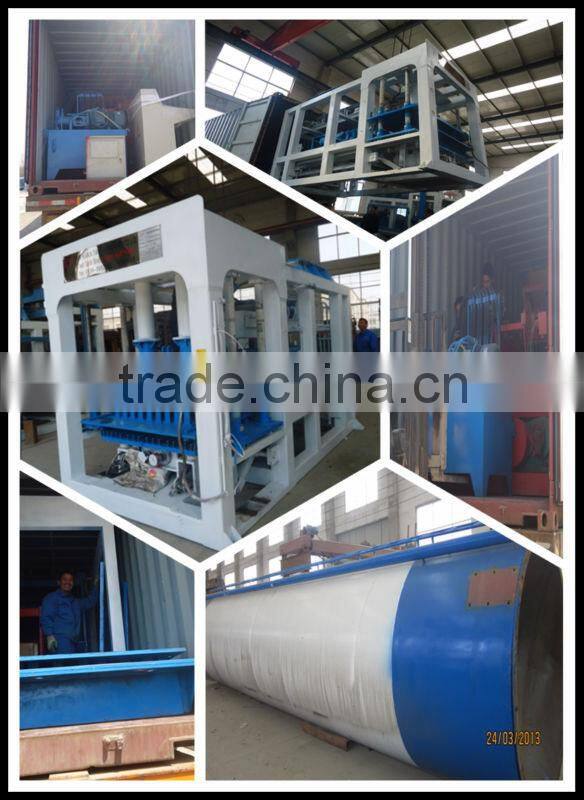

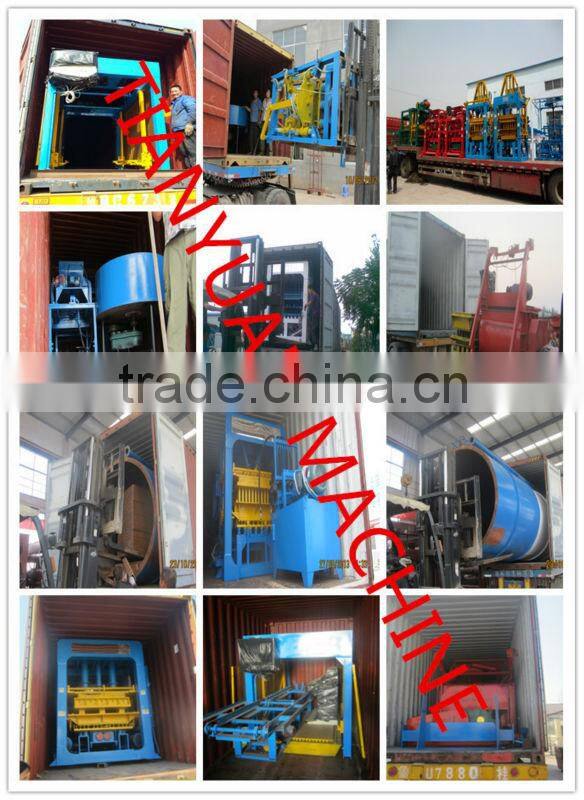

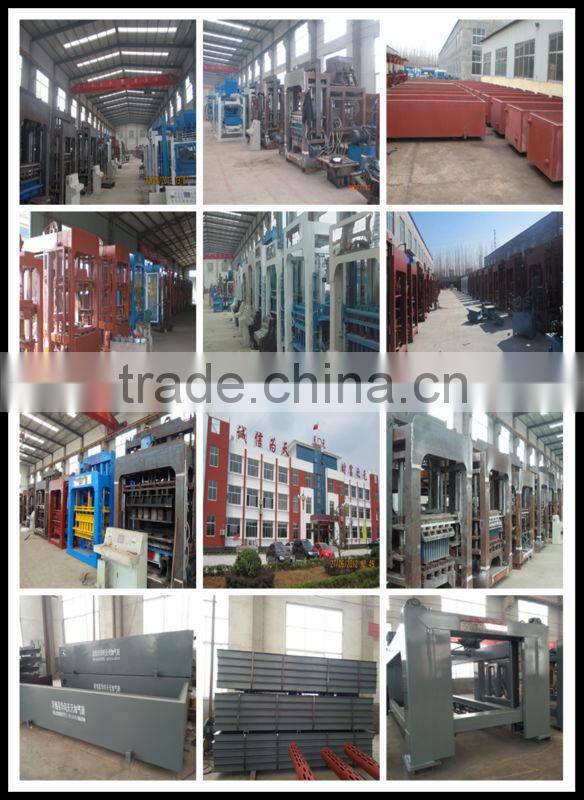

5- Loading and our factory

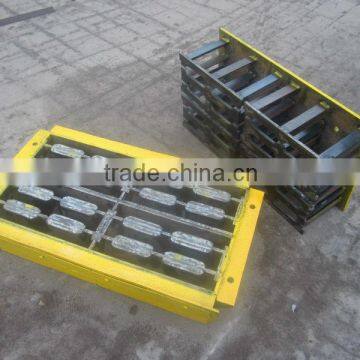

6- Brick molds picture

7- Brick machine types.

We have many types of concrete brick making machine.

The bigger types are QTY12-15, QTY10-15, QTY8-15.

The middle types are QTY6-15A, QTY6-15B, QTY6-15C, QTY4-15A, QTY4-15B, QTY4-15C, QTY4-20C, QTY3-15.

The small types are QTJ4-25, QTJ4-26C, QTJ4-26D, QTJ4-35, QTJ4-40.

Please kindly choose according to actual requirements.

*Huarun Tianyuan Factory

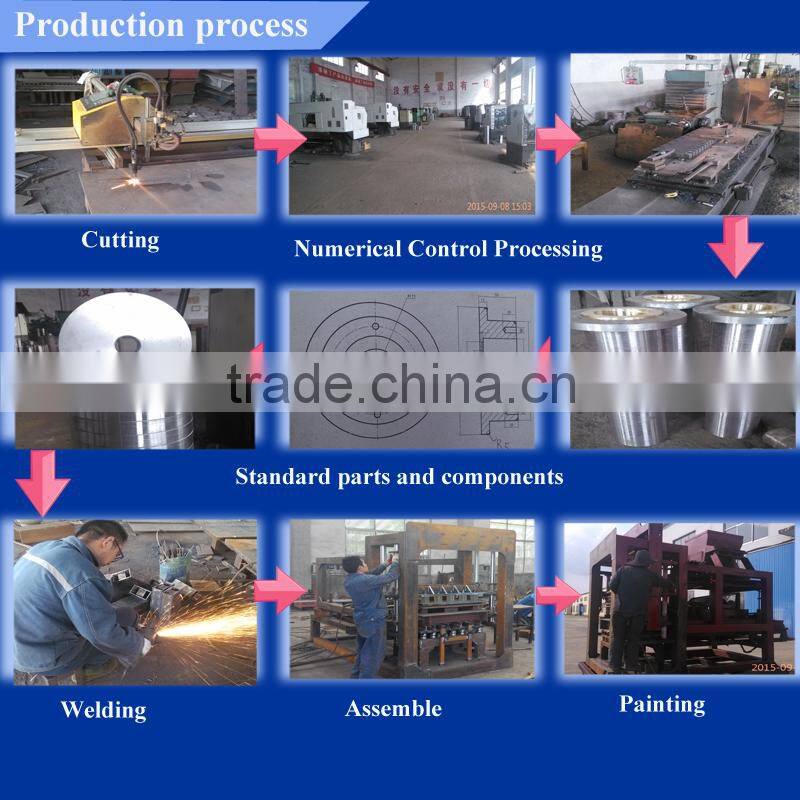

1*  We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

 4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

 5*  We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

 6*  We ensure our products quality and best after sales service.

 We will do the best with clients' advice and susgestion.

1> Certification of ISO 9001. CE(MD+LVD)

2> We have inspections every year by National Quality Technical Supervise Department.

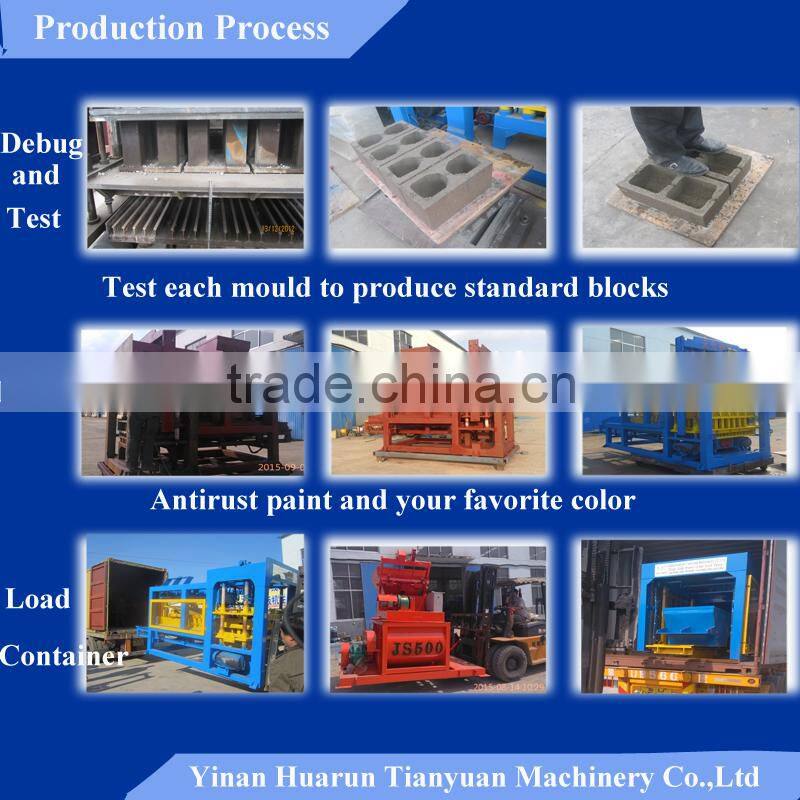

3> Our Quality Inspection Department make test of each machine before loading.

Packing:

Nude in container. Or in plastic bag as per clients needs.

Shipping:

Big machines

(QTY12-15, QTY10-15, QTY8-15, QTY6-15A/B/C, QTY4-15A/B/C, QTY4-20C)

1: From mixer to stacker need one 40ft high container.

2: If need silo and batching machine too, it will need  total 3x40ft high containers.

Small machines( QTY3-15, QTJ4-25)

1: From mixer to Block receriver, need one 20ft container.

2: If with stacker, it will need one 40Gp.

Small machines(QTJ4-40 QTJ4-26C/D, QTJ4-35).

Loading size is from 8cbm to 17cbm, in LCL or 20Gp.

7*24hours online service.

@:Designing ,technical support and project;

@Engineer available for overseas installation and adjustment;

@All necessary documents and drawings and videos for free;

@Warranty one year after delivery.

@ 24hours Online service for all life time.

1: Keep the machine in dry environment.

2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.

3: Please check the Sensor position before each shift, and tighten them again.

4: After each shift, please cleaning all the equipments, and lubricating each running parts.

5: Please cut off the Total Power when User maintaining the machine.

6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.

7: If need technical help, please call 0086-539-3551999, 24hours online service.
