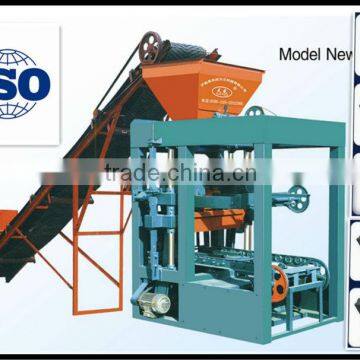

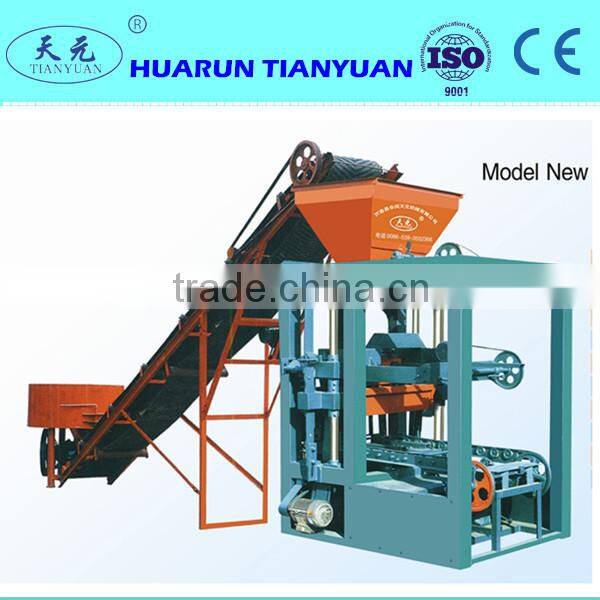

QTJ4-26D Factory Supplier Used Concrete/cement Block Making Machine for Sale
- qingdao
- T/T
You May Like
-
Hot Sell QTJ4-26C Small Semi Concrete Hollow Block Machine Ethiopia
-
Hot Sell QTJ4-26C Small Semi Concrete Hollow Block Machinery
-
Hot Sell QTJ4-26C Small Semi Concrete Holo Block Machine
-
Hot Sell QTJ4-26C Small Semi Concrete Block Machine in Sri Lanka
-
High Output Semi Automatic Concrete Block Machine Made by Huarun Tianyuan Factory
-
High Output Semi Autoamtic Operation Concrete Brick Block Making Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Other, mechanical | Automatic | No | |
| Capacity | 3000-4000pcs/shift | Place of Origin | Shandong, China | |
| Brand Name | Tianyuan | Model Number | QTJ4-26D | |
| Voltage | adjustable | Power | 12.75kw | |
| Dimension(L*W*H) | 2060*1700*2650mm | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
machinery block's work
1.CE&ISO9001
2.suitable for medium-sized factory
3.save labor&power
4.after service
QTJ4-26D machinery block's work

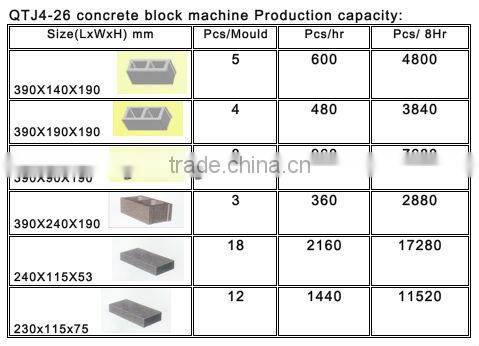

A: Production capacity of QTJ4-26D machinery block's work
Size(LXWXH) mm | Pcs/mould | Pcs/hr | Pcs/shift |
390x190x190 | 4 | 500 | 4000 |
390x140x190 | 6 | 720 | 5760 |
390x90x190 | 8 | 1000 | 8000 |
240x115x53 | 18 | 2400 | 19200 |
The type QTJ4-26D can produce all kinds of hollow blocks and solid bricks and paving bricks,
only by changing different moulds.

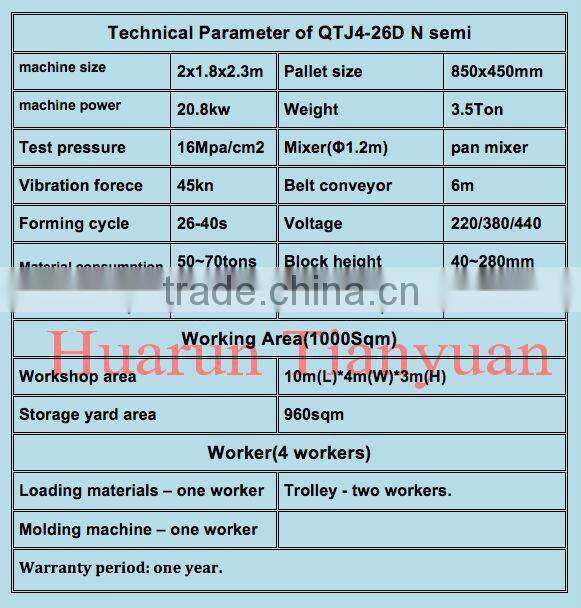

B: Technical parameters of QTJ4-26D machinery block's work
Main machine size | 2000x2000x2000mm |
| Pallet size | 850x450mm |
Main machine power | 12.75kw |
| Weight of machine | 3Ton |
Mixer | 1.2m pan mixer |
| Belt conveyor | 6m |
Forming cycle | 26seconds |
| Voltage | 380v/3phase |
C: QTJ4-26D machinery block's work other information:
1. Area: Workshop area: 80-100m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or eight.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:50-70T
6. water consumption per day:3%-5% of raw material Weight.
D.QTJ4-26D machinery block's work guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E.QTJ4-26D machinery block's work pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.
