Expanded perlite door core board making machine

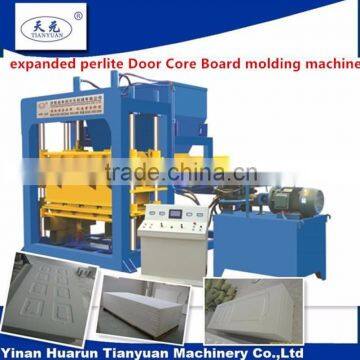

 Expanded perlite door core baod Molding machine photo :

FInished products and packing photo:

Technical parameter of molding machine:

Molding machine size : 2.65x3.8x2.8m.

Rated Pressure:20Mpa.

Pallet: as per need size.

Weight:5.5ton.

Operation: PLC control.

Forming Cycle: 12-15s/mold.

Mixer: Φ1.4x6m.

Belt conveyor: 10/8m.

Glue mixer: Φ1.5x1.5m.

Glue pump: as per needs.

Material tank: Φ2x4m.

Main power: as per machine model.

Capacity of molding machine:

Board size: 2200x900x10~65mm.

Pcs/mould: 1pc/mould.

Pcs/hour: 240pcs/hour. 1920pcs/8hours.

Pallet size: 2210x910mm.

Expanded perlite door core board parameter:

Advantages:

1. Fireproof
2. Non-tonxic
3. Impact strength 5.6KJ/m2
4. Non-Formaldehyde

5. Low thermal conductivity,

6. stable performance

7. light weight,

8. fire prevention

9. non-toxic  and  tasteless

10. Nonionic adhesive No corrosion

11.Refractory grade A1, conform to the fire door GB12955-2008 new technique standard

 Usage:

1. Widely used in wood fire door

2. Fire resistance steel door

3. Interior with fireproof core board and fireproof isolation

4. Public buildings,

5. Civil construction

6. Metallurgy,

7. Cement,

8. Oil pipe insulation,

9. Sound insulation ect.

*Huarun Tianyuan Factory

1*  We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

 4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

 5*  We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

 6*  We ensure our products quality and best after sales service.

 We will do the best with clients' advice and susgestion.

1> Certification of ISO 9001. CE(MD+LVD)

2> We have inspections every year by National Quality Technical Supervise Department.

3> Our Quality Inspection Department make test of each machine before loading.

7*24hours online service.

@:Designing ,technical support and project;

@Engineer available for overseas installation and adjustment;

@All necessary documents and drawings and videos for free;

@Warranty one year after delivery.

@ 24hours Online service for all life time.

1: Keep the machine in dry environment.

2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.

3: Please check the Sensor position before each shift, and tighten them again.

4: After each shift, please cleaning all the equipments, and lubricating each running parts.

5: Please cut off the Total Power when User maintaining the machine.

6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
