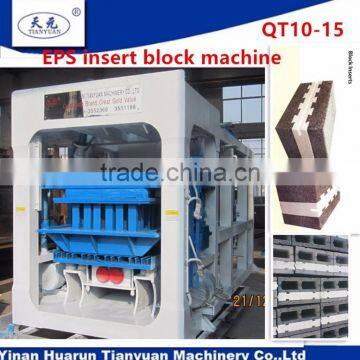

specially designed insulated eps foam concrete block machine Huarun Tianyuan factory
- 20 Set / Sets per Month
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
eps insert concrete hollow brick block machine ( Huarun Tianyuan factory)
-
Top sellers thermal insulated insert eps board compound concrete block machine
-
concrete block making machine for polystyrene insulated wall building
-
QTY6-15 heat insulated thermal EPS insert concrete hollow block making machine specially designed by Huarun Tianyuan factory
-
2015 polystyrene insert cement block brick machine -Tianyuan brand
-
2015 automatic thermal insulation multiple cement concrete block making machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Other, concrete and EPS board | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 960pcs/H | Place of Origin | Shandong, China | |
| Brand Name | Tianyuan | Model Number | QT10-15 | |
| Voltage | industrial voltage | Power | 52.3kw | |
| Dimension(L*W*H) | 5X2.2X3m | Certification | ISO | |
| Warranty | 12month | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic thermal insulation multiple concrete block making machine
poly styrene cement hollow brick machine ( Huarun Tianyuan factory)
Equipment features:
The Electro-Hydraulic-Mechanical Integration has been achieved in this machine, with automatic PLC control and Touch-Screen. Put the cut EPS panel into the Automatic EPS(Expandable Polystyrene) Feeder. The EPS feeder will send the EPS into the mold and then automatic backward for next recycle, with high productivity.
A: Production capacity of QT10-15 as following:
Size(LXWXH) mm | Pcs/mould | Pcs/hr | Pcs/8hr |
390x240x190 | 8 | 960 | 7680 |
390x190x190 | 10 | 1200 | 9600 |
B: Technical parameters of QT10-15:
Main machine size | 5000x2200x3000mm | Pallet size | 1150x850mm | |
Main machine power | 52.3kw | Weight | 11Ton | |
Rated pressure | 30Mpa | Mixer | JS750 | |
Vibration forece | 50kn | Belt conveyor | 8m | |
Forming cycle | 30seconds | Voltage | 380v/3phase |
Finished products test report:
Packing:
Nude in container. Or in plastic bag per clients needs.
Shipping:
1: From mixer to stacker need one 40ft high container.
2: If need silo and batching machine too, it will need total 3x40ft high containers.
*Huarun Tianyuan Factory
1* We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1> Certification of ISO 9001. CE(MD+LVD)
2> We have inspections every year by National Quality Technical Supervise Department.
3> Our Quality Inspection Department make test of each machine before loading.
1: Keep the machine in dry environment.
2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.
3: Please check the Sensor position before each shift, and tighten them again.
4: After each shift, please cleaning all the equipments, and lubricating each running parts.
5: Please cut off the Total Power when User maintaining the machine.
6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.
7: If need technical help, please call 0086-539-3551999, 24hours online service.
Or please chat by Trade manager: cntianyuanzj
Or Send Email: tianyuanzj at .
WhatsApp: 008615006593716
