High Output Automatic Hydraulic Concrete Hollow Block Making Machinery QT8-15

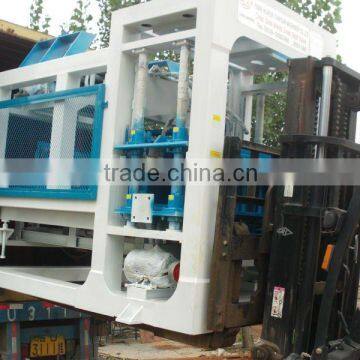

1-  QT8-15 Molding machine picture,

2-The advantage of Molding Machine,

1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters,  use less labor.

2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted

3- Adopting the advanced forced material-feeding & distributing device, More durable.

4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.

5- Quality Insurance:

PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.

    Switch from Siemens or CHTN.

Molds are made of Manganese steel, long lifetime.

6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.

7- Molding machine frame are made of 8mm thickness square steel, more durable.

3-Machine Productivity ,

4- Machine Technical Parameter,

1-Main machine Dimmension: 4800x2000x3000mm.

2-Rated Pressure: 25Mpa.

3-Vibration Form: Platform Vibration and Upper Vibration.

4-Vibration Frequency: 5000-5500r/min.

5-Pallet Size: 1020x900mm.

6-Molding Cycle: 12-20s.

7-Electric Power: 38.7Kw.

 8-Main Machine Weight: 13.5Ton.

 9-Material Consumption: 200-260Ton/day.

 10-Electric Consumption: 86Kw.h/day.

 11-Water Consumption: 10ton/day.

 12-Worker: (4-8person).

5- Loading and workshop

6-Molds pictures

7- Production line

8- Machine types-

We have many types of concrete brick making machine.

The bigger types are QTY12-15, QTY10-15, QTY8-15.

The middle types are QTY6-15A, QTY6-15B, QTY6-15C, QTY4-15A, QTY4-15B, QTY4-15C, QTY4-20C, QTY3-15.

The small types are QTJ4-25, QTJ4-26C, QTJ4-26D, QTJ4-35, QTJ4-40.

Please kindly choose according to actual requirements

*Huarun Tianyuan Factory

1*  We are the professional manufacturer of AAC Block Plant& Concrete Brick Block machine & Expanded Perlite Slab Molding Machine & EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more than 15years experience in this fields, cover 80000sqm and more than 400 staffs.

2*  Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.

3*  We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the biggest water diversion project in China Government.

 4*  We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.

 5*  We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are top leader in Chinese markets, share more than 95% markets.

 6*  We ensure our products quality and best after sales service.

 We will do the best with clients' advice and susgestion.

1> Certification of ISO 9001. CE(MD+LVD)

2> We have inspections every year by National Quality Technical Supervise Department.

3> Our Quality Inspection Department make test of each machine before loading.

Packing:

Nude in container. Or in plastic bag as per clients needs.

Shipping:

Big machines

(QTY12-15, QTY10-15, QTY8-15, QTY6-15A/B/C, QTY4-15A/B/C, QTY4-20C)

1: From mixer to stacker need one 40ft high container.

2: If need silo and batching machine too, it will need  total 3x40ft high containers.

Small machines( QTY3-15, QTJ4-25)

1: From mixer to Block receriver, need one 20ft container.

2: If with stacker, it will need one 40Gp.

Small machines(QTJ4-40 QTJ4-26C/D, QTJ4-35).

Loading size is from 8cbm to 17cbm, in LCL or 20Gp.

7*24hours online service.

@:Designing ,technical support and project;

@Engineer available for overseas installation and adjustment;

@All necessary documents and drawings and videos for free;

@Warranty one year after delivery.

@ 24hours Online service for all life time.

1: Keep the machine in dry environment.

2: Before the first production, please fill hydraulic oil into the tank, keep the oil level higher than 80/180degree. And pay more attention to the oil Pressure.

3: Please check the Sensor position before each shift, and tighten them again.

4: After each shift, please cleaning all the equipments, and lubricating each running parts.

5: Please cut off the Total Power when User maintaining the machine.

6: When need to change mold, please discharge or install them slowly and keep the Up mold foot safety. Please do it as our video.

7: If need technical help, please call 0086-539-3551999, 24hours online service.
