M Cable Glands
US$ 0.1 - 10
/ Piece
50000 Pieces(Min. Order)
- shanghai/ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | CNJADE | |
| Model Number | M Cable Glands | Protection Level | IP68 | |
| Size | m1.5 pg13.5 m25 | Material | Brass |
Product Description

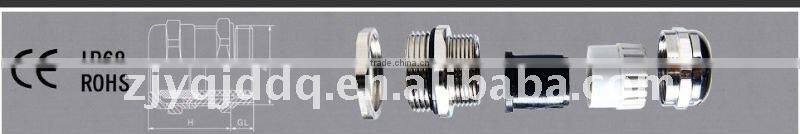

Metric cable gland
| Character Special design of clamping claw and clamping ring,wide clamping range,high stretching resistance,wate proof,dustproof,salt resistant,resistant for weak acid,alcohol,oil,grease and gengral solvent | |||||||
| Specification of thread | Cable Range | Outer diameter of thread | Mounting hole diameter | Thread length | Thread lenght(langthened type) | Joint length | Wrench diameter |
| M12×1.5 | 6.5-3 | 12mm | 12-12.2 | 7mm | 10mm | 19mm | 14mm |
| M14×1.5 | 8-4 | 14mm | 14-14.2 | 7mm | 10mm | 19mm | 18mm |
| M16×1.5 | 8-4 | 16mm | 16-16.2 | 8mm | 10mm | 20mm | 18mm |
| M18×1.5 | 10-5 | 18mm | 18-18.2 | 8mm | 10mm | 21mm | 20mm |
| M20×1.5 | 12-6 | 20mm | 20-20.2 | 8mm | 15mm | 22mm | 22mm |
| M22×1.5 | 10-14 | 22mm | 22-22.2 | 8mm | 15mm | 23mm | 24mm |
| M24×1.5 | 10-14 | 24mm | 24-24.2 | 9mm | 15mm | 25mm | 24/27mm |
| M25×1.5 | 10-14 | 25mm | 25-25.2 | 9mm | 15mm | 25mm | 24/27mm |
| M25×1.5 | 18-13 | 25mm | 25-25.2 | 9mm | 15mm | 27mm | 30/27mm |
| M27×1.5(2) | 18-13 | 27mm | 27-27.2 | 9mm | 15mm | 27mm | 30mm |
| M28×1.5(2) | 18-13 | 28mm | 28-28.2 | 9mm | 15mm | 27mm | 30mm |
| M30×1.5(2) | 18-13 | 30mm | 30-30.2 | 9mm | 15mm | 29mm | 30/32mm |
| M32×1.5(2) | 22-15 | 32mm | 32-32.2 | 10mm | 15mm | 29mm | 35mm |
| M33×1.5(2) | 22-15 | 33mm | 33-33.2 | 10mm | 15mm | 29mm | 35mm |
| M36×1.5(2) | 25-18 | 36mm | 36-36.2 | 10mm | 15mm | 31mm | 40mm |
| M37×1.5(2) | 25-18 | 37mm | 37-37.2 | 10mm | 15mm | 31mm | 40mm |
| M40×1.5(2) | 25-18 | 40mm | 40-40.2 | 11mm | 15mm | 31mm | 40/45mm |
| M40×1.5(2) | 30-22 | 40mm | 40-40.2 | 11mm | 15mm | 35mm | 45mm |
| M42×1.5(2) | 30-22 | 42mm | 42-42.2 | 11mm | 15mm | 35mm | 45mm |
| M47×1.5(2) | 33-25 | 47mm | 47-47.2 | 11mm | 15mm | 37mm | 50mm |
| M48×1.5(2) | 33-25 | 48mm | 48-48.2 | 11mm | 15mm | 37mm | 50mm |
| M50×1.5(2) | 38-32 | 50mm | 50-50.2 | 12mm | 15mm | 37mm | 57/55mm |
| M54×1.5(2) | 38-32 | 54mm | 54-54.2 | 12mm | 15mm | 38mm | 57mm |
| M60×1.5(2) | 44-37 | 60mm | 60-60.2 | 13mm | 15mm | 38mm | 65mm |
| M63×1.5(2) | 44-37 | 63mm | 63-63.2 | 13mm | 15mm | 38mm | 65mm |
| M64×1.5(2) | 44-37 | 64mm | 64-64.2 | 13mm | 15mm | 38mm | 65/68mm |
| M72×1.5 | 52-42 | 72mm | 72-72.2 | 15mm | 20mm | 42mm | 77mm |
| M75×1.5 | 52-42 | 75mm | 75-75.2 | 15mm | 20mm | 42mm | 77mm |
| M80×1.5 | 62-55 | 80mm | 80-80.2 | 15mm | 20mm | 45mm | 90mm |
| M88×1.5 | 70-65 | 88mm | 88-88.2 | 15mm | 20mm | 45mm | 94mm |
| M100×1.5 | 84-78 | 100mm | 100-100.2 | 15mm | 20mm | 45mm | 110mm |
