Home > Products > Strain clamp (bolt type) > Single Bolt CUPG Clamp / Copper Parallel Groove Clamps/ PG Copper Cable Clip

Single Bolt CUPG Clamp / Copper Parallel Groove Clamps/ PG Copper Cable Clip

FOB Price

US$ 1 - 98 / Piece

100 Pieces(Min. Order)

Port tianjin qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	YP
Model Number	CUPG	Type	Wire Rope Clip
Material	Other, Copper, Alloy Steel / Alluminium / Copper

Product Description

Direct Manufacter, Excellent Quality, Competitive Price and Good After-Service

1.Factory price

2.Delivery on time

3.Free samples is available

4.Hot sail & durable

5.21 year's manufacturer

Product Name	Copper Paraller Groove Clamp
Application	For bare overhead aluminium of copper tap conductors
Material	Alloy steel / Copper / Aluminum
Color	Silver / Yellow
Product Standard	ISO9001, CE , BV , SGS
Size	As request
Packing	Plastic bag or carton and pallet / by customer requirements.
Notes	Special specifications can be made according to your requirement
Bussiness Type	Manufacturer, trading

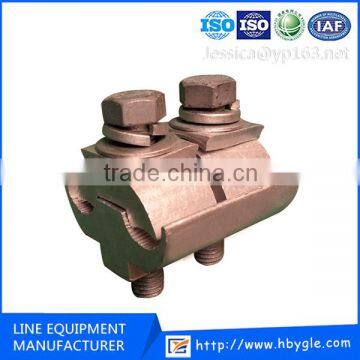

Parallel groove connectors CU/CU

Type No.:MAG-Parallel groove connectors CU/CU

Parallel Groove Clamps Copper Extruded type,

The clamp was designed to connect two parallel bare conductors.
Conductors can be copper stranded or rods. Material is forged
copper for copper to copper connection throughout the conductor
range. The clamps have serrated transverse grooves for maximum
conductor contact, use copper bolts and utilise Belleville washers
to prevent thermal ratcheting under cyclic loads.
The clamps are coated with an oxide inhibitor. And stainless bolts
and nuts with washers was on requirement.

for tap-off connections of copper-conductors acc. to DIN 48201
Material:
Body: Copper alloy
Bolts: steel or stainless steel
Nuts: DIN 934, steel
Surface: uncoated

Product Selection Matrix

cat no	Type	Bolt Torque	Conductor Range 2 mm	Dimensions mm O.D	No./Size of Bolts
CU6-70-2 CU16-95-2 CU16-150-2 CU150-240-2 CU300-400-3	F/ T F/ T F/ T E/N E/N	20Nm 20Nm 30Nm 40Nm 40Nm	6to70 16 to 95 16 to 150 150 to 240 300 to 400	2.7 to 10.5 5.1 to 12.5 5.1 to 15.7 15.7 to 20.3 22.6 to 26.7	2xM8 2xM8 2 x M10 2 x M12 3 x M12

Type: F = Forged body; T = Transverse groove; E = Extruded body; N = No groove.
2. that the clamp is provided with corrosionproof stainless steel screws and hot-dip galvanized steel screws instead of dacromet screws.
Add suffix “X” for stainless steel screw. Add suffix “G” for hot dip galvanized
