Home > Products > Vertical Sachet Packing Machine > DXDF320 High speed back seal automatic food spice powder packaging machine

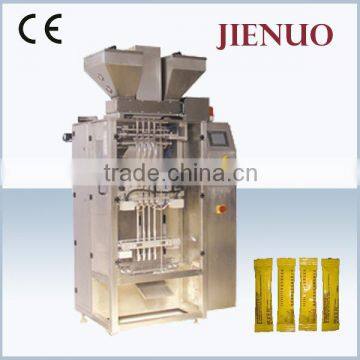

DXDF320 High speed back seal automatic food spice powder packaging machine
- 25 Set / Sets per Month
- Ningbo or Shanghai China port
- T/T
You May Like
-
DXDF320 High speed back seal automatic flour packing machine
-
Cost high speed back seal automatic plastic packing machine
-
DXDF320 Multi-lane back seal food powder automatic vertical sachet packing machine
-
DXDF320 Multi-lane automatic chilli powder and packing machine
-
DXDF320 High speed back seal automatic coffee powder packing machine
-
DXDF320 Powder multi-lane back seal small sachets powder packing machine
Product Details
Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, spice powder packaging machine | |
Packaging Type | Bags, Pouch, Other, Bags, Pouch, spice powder packaging machine | Packaging Material | Paper, Plastic, Other, Paper, Plastic, spice powder packaging machine | |
Automatic Grade | Automatic | Driven Type | Pneumatic | |
Voltage | 380V/ 50HZ | Power | 8KW | |
Place of Origin | Zhejiang, China | Brand Name | Jienuo | |
Model Number | DXDK320 | Weight | 1.6t | |
Dimension(L*W*H) | 1200*1400*2600mm | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Usage:
The machine comprised by servo driven ,packing screw, mixing screw, hopper, storage. Using screw to feed and make a quantitative measurement.
The overall material on silo formed convection and moving driven powder material go down. According to the length and speed of whirling time control the size odf material volume. So it is easy to operate. Only to adjust the parameter to control the amount of loaded at the interface.
DXDF320 stick packing machine for powder takes the international advanced screw propelling type of feeding. Mainly to the filling powder, it is running fast, highly precision measurement and easy to adjust.
Main Parameter | |
Filling materials | Powders and less liquid materials, etc. |
Maximum width of packaging materials | 320mm |
Bag width | 15-40mm |
Bag length variable range | 35-200 |
Dimensions(L*W*Hmm) | 1.1mX1.2mX2.2m |
Package material core diameter | Φ70—Φ76mm |
Total power(Kw) | 8kW |
Measurement accuracy | ±5% |
Power Specifications | 380V 50Hz |
Air consumption | 0.25m3/h |
Weight | 1350kg |
Maximum width of packing material | 380mm |
Maximum diameter of packing material | Φ300mm |
Cross-cut frequency (times / min) | Up to 35 beats / min, it will be different depending on the package. |
Maximum capacity | Up to 40 bag/min |
Product Description
1. Any questions in technical can contact us by e-mail and deal with it.
2. Spare parts replacement and repair service.
3. Engineer can be distributed into overseas required.
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company which is mainly engaged in development, production and related services for pharmaceutical industry, food industry, cosmetics industry, stationery industry, etc.
We do business for mainland customers and also do exporting our products to a lot of different countries and areas around the world such as the United States, UK, Mexico, Italy, Australia, Poland, Philippine, South Africa, Malaysia, Thailand, Pakistan, Dubai and so on...
We have been the manufacturer of packing machine for 7 years. If you are interested in our Packing Machine, please contact me without hesitation. we will give you the best price.
Best regards
Mandy
Company: Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Tel : 0577-66856267
Skype: MandyXia222888
Mobile:86-15968657852
Fax: 0577-66856268
QQ: 2777436905
Q1.What do you have any training?
We can train your staff to use our machine properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
Q2.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q3.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like how to operate PLC .And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
