automatic small mini tablet blister packing machine price
- Ningbo or Shanghai
- T/T
You May Like
-
food snake chocolate perfume blister packing machine
-
honey peanut butter biscuit blister packing machine
-
small food sweet chocolate blister sealing packing machine
-
automatic food medical blister packaging machine
-
Fully automatic multi-function liquid blister packing machine
-
Multi function liquid paste blister packaging machine
Product Details
Condition | New | Application | Apparel, Beverage, Commodity, Food, Other, Apparel, Beverage, Commodity, Food, Machinery & Hardware | |
Packaging Type | Bags, Foil, Pouch, Stand-up Pouch | Packaging Material | Plastic | |
Automatic Grade | Automatic | Driven Type | Pneumatic | |
Voltage | 380V/ 50HZ | Power | 3KW | |
Place of Origin | Zhejiang, China | Brand Name | Jienuo | |
Model Number | DPB-80 | Weight | 450KGS | |
Dimension(L*W*H) | 1500*600*1200 | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

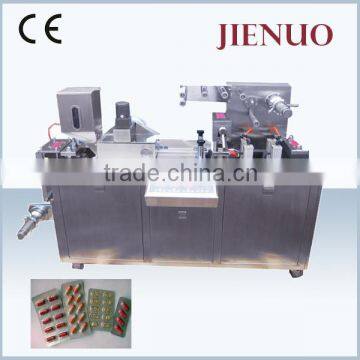

Automatic Small Mini Tablet Blister Packing Machine Price
Features:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and
electric control system, the man-machine interface friendly.
2. Automatic checking system: no pouch or pouch open error, no fill, no seal. The bag can be
used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. All the parts contact to the materials are made of stainless steel.
Main technological parameter:
Model | DPB-80 | DPB-140 |
Punch frequency | 10-35time/min | 15-35time/min |
Production Capacity | 2400edition/hour | 4200edition/hour |
Max. Formed area and Depth | 70*110*26 mm | 140*110*26 mm |
Travel Range | 20-80 mm adjustable | 20-110 mm adjustable |
Standard Plate | 80*57mm adjustable | 80*57mm adjustable |
Air Pressure | 0.6-0.8 M | 0.6-0.8 M |
Total Power | 380V/220V 50Hz 3.0Kw | 380V/220V 50Hz 3.2Kw |
Main Motor Power | 0.75Kw | 1.5Kw |
PVC Hard Pieces | 0.15-0.5*80 mm | 0.15-0.5*140 mm |
PTP Aluminum Foil | 0.02-0.035*80 mm | 0.02-0.035*140mm |
Dialysis Paper | 50-100g*80 mm | 50-100g*140(mm) |
Overall Dimensions | 1500*600*1200 mm | 2300*560*1410mm |
Weight | 450Kg | 900Kg |
Noise target | <75dBA | 75dBA |
High Speed Small Blister Packing Machine is suitable for capsules, tablets, sugar-coated,
capsules,injections, and other special-shaped medical device, light industry and food, electronic components sealed blister packaging.Photoelectric control systems, PVC, PTP, tropical
aluminum packaging automatic feed,scrap automatic admission Device, to ensure the
long-synchronous multi-position stability.
1. Any questions in technical can contact us by e-mail and deal with it.
2. Spare parts replacement and repair service.
3. Engineer can be distributed into overseas required.
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company
which is mainly engaged in development, production and related services for pharmaceutical
industry, food industry, cosmetics industry, stationery industry, etc.
We do business for mainland customers and also do exporting our products to a lot of different
countries and areas around the world such as the United States, UK, Mexico, Italy, Australia,
Poland, Philippine, South Africa, Malaysia, Thailand, Pakistan, Dubai and so on...
We have been the manufacturer of packing machines for 10 years. If you are interested in our
automatic packing machines, please contact me without hesitation. we will give you the best
price.
Company: Wenzhou Wenzhou Jienuo Machinery & Technology Co. Ltd
Tel : 0577-66856266
Mobile/Whatsapp:86-13989795102
Fax: 0577-66856268
QQ: 2592339509
Skype:linyawei16
Q1.what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some
basic thing like how to operate PLC .And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also
can be distributed to overseas as you required.
We provide you with sincerely service, if you have interest,contact us NOW!!!
