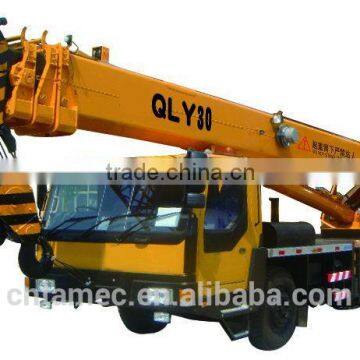

TRUCK CRANE
- QINGDAO
You May Like
-
JC35 skid steer loader,china bobcat,engine power 35hp,loading capacity 500kg
-
JC45 skid steer loader,china bobcat,engine power 50hp,loading capacity 700kg
-
JC45G skid steer loader,china bobcat,engine power 50hp,loading capacity 700kg
-
JC40 skid steer loader,china bobcat,engine power 40hp,loading capacity 600kg
-
JC60 skid steer loader,china bobcat,engine power 60hp,loading capacity 850kg
-
JC60G skid steer loader,china bobcat,engine power 60hp,loading capacity 850kg
Product Details
| Max. Lifting Load | 20-120T | Place of Origin | Shandong, China | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ITEM | UNIT | DATA |
Overall dimension | ||
Overall length | mm | 13530 |
Overall width | mm | 2500 |
Overall height | mm | 3550 |
Weight | ||
Total weight in travel | kg | 31420 |
Front axle load | kg | 7470 |
Rear axle load | kg | 23950 |
Engine | ||
Engine model |
| WP10.270N |
Engine rated power | Kw/(r/min) | 199/2200 |
Engine rated torque | N.m/(r/min) | 1100/1200~1600 |
Travelling specifications | ||
Max. travel speed | Km/h | 74 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 220 |
Approach angle | ° | 15.8 |
Departure angle | ° | 10 |
Max. grade ability | % | 30 |
Fuel consumption for 100km | L | 40 |
Working performance specifications | ||
Max. rated lifting capacity | t | 30 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.86 |
Max. lifting torque | KN.M | 1010 |
Base boom | m | 10.5 |
Fully extended boom | m | 33 |
Fully extended boom+ jib | m | 41 |
Longitudinal outrigger span | m | 5.41 |
Lateral outrigger span | m | 6.15 |
Working speed | ||
Boom luffing time | s | 93 |
Boom full extension time | s | 110 |
Max. swing speed | r/min | 2.0 |
Max. speed of main. winch (single rope)
| m/min | 123 |
Max. speed of aux. winch (single rope) | m/min | ≤120 |
