Home > Products > Functional Modified Plastic Compound > Electric Wire Compound Insulation Cable Protection Sheath

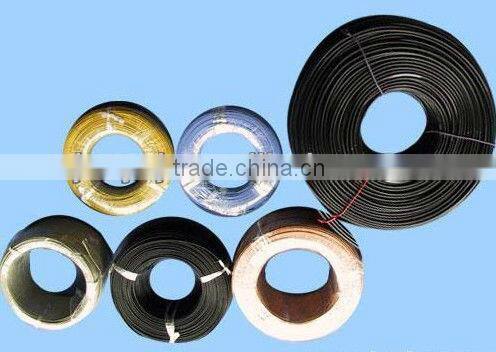

Electric Wire Compound Insulation Cable Protection Sheath
US$ 1,400 - 2,400
/ Metric Ton
1 Metric Ton(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Zhong Yi | |
| Insulation Material | PE | Type | Low Voltage | |
| Application | Construction | Conductor Material | Copper | |
| Jacket | PE |
Product Description
Specifications
compound sheath masterbatch1.reinforced and insulated cable sheath layer
2.anti aging and ultraviolet ray
Introduction of Electric cable sheath

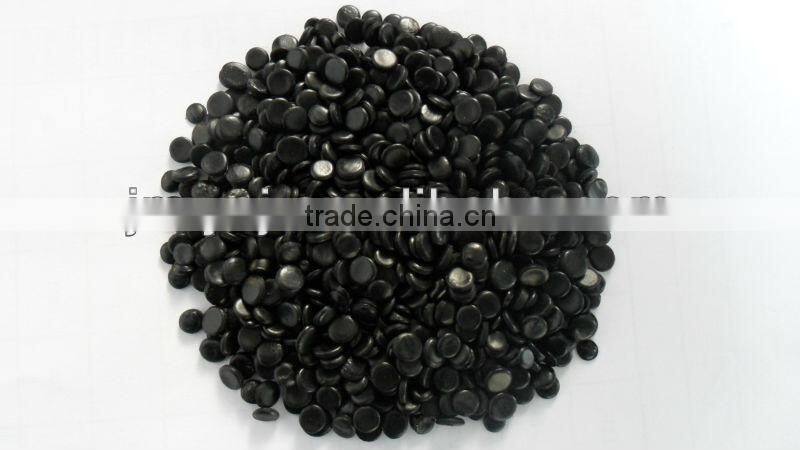

Black LDPE granules for cable jacketing compound cable sheath masterbatch
for more details please contact us directly.
| Specification of flame-redardant PE for Electric Cable | ||||||
| Property | Unit | Specification | Inspection | |||
| HFR-70 1 | HFR-70 2 | JFR-70 1 | JFR-70 2 | |||
| tensile strength | Mpa | 20.2 | 15 | 19.8 | 18.4 | GB1040 |
| Elongation at break | % | 320 | 340 | 290 | 300 | GB1040 |
| Thermal agining 100°C 168h | -- | -- | -- | -- | -- | -- |
| tensile strength at aging | Mpa | 19 | 14 | 19.9 | 17.8 | GB1040 |
| Maximum change rate of Tensile Strength | % | -5.9 | -5.7 | -4 | -3.3 | -- |
| Elongation ate Break after aging | % | 280 | 320 | 280 | 290 | GB1040 |
| Maximum change rate of Elongation at break | % | -12.5 | -5.9 | -3.4 | -3.3 | -- |
| Weight Loss after Thermal aging | g/cm3 | 13.6 | 16.3 | 11.4 | 126 | -- |
| Thermal deformation | % | 44 | 55 | 36 | 41 | -- |
| Brittle point of Low temperature impact | °C | (-)20pass | (-)30pass | (-)15pass | (-)20pass | GB5470 |
| Thermal stable time at 20°C | min | 75 | 80 | 80 | 80 | -- |
| Volume resistivity at 20°C | Ω.m | 1.1*1011 | 1.1*109 | 3.0*1012 | 2.2*1011 | GB1410 |
| Volume resistivity at working time of 70°C | Ω.m | -- | -- | 2.7*109 | 1.2*109 | GB1410 |
| Dielectronic strength | mv/m | 24 | 25 | 26 | 27 | GB1408 |
| Oxygen index | g/cm3 | 31 | 31 | 31 | 31 | GB2406 |
