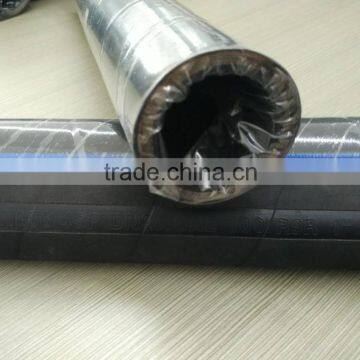

Mder 4SH 4SP SAE and DIN steel wire inforced spiral reinforced rubber suction hose
USD $6 - $6
/ Meter
10000 Meters(Min.Order)
- Tianjin
- T/T Credit Card
You May Like
-
China manufacturer! DIN R1, R2, 4SP high pressure hose hydraulic rubber hose high quality hot sale!
-
high quality hydraulic hoses SAE 100 R9 R12 EN 856 4SH 4SP
-
flexible hydraulic hose sae 100 r1/r2/4sh/4sp manufacturer
-
Mder 4SH 4SP SAE and DIN steel wire inforced spiraled hydraulic rubber hose
-
Mder 4SH 4SP SAE and DIN steel wire inforced spiraled hydraulic rubber tube
-
hydraulic rubber hose sae 100 r13 4sh spiral 2" 35Mpa hose
Product Details
| Place of Origin | Hebei, China | Brand Name | Mder | |
| Model Number | 4sp |
Product Description
Mder 4SH 4SP SAE and DIN steel wire inforced spiral reinforced rubber suction hose
Recommended for:High pressure hydraulic oil lines for applications with crude oils, fuel oils,lubricating oils and gasoline.
Tube:Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +100℃(-40℉ -- +212℉)
| M-ES6 4P (EN856-4SP) wire spiral hydraulic rubber hose | |||||||||||||||
| Type | SIZE | SIZE | ID | WD | OD | WP | BP | min BR | WT | ||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| ES4P-04 | 6.3 | 1/4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 45 | 6625 | 180 | 26100 | 5.91 | 150 | 0.64 |
| ES4P-06 | 10 | 3/8 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 44.5 | 6450 | 178 | 25810 | 7.09 | 180 | 0.75 |
| ES4P-08 | 12.5 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 41.5 | 6020 | 166 | 24070 | 9.06 | 230 | 0.89 |
| ES4P-10 | 16 | 5/8 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 35 | 5075 | 140 | 20300 | 9.84 | 250 | 1.1 |
| ES4P-12 | 19 | 3/4 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 35 | 5075 | 148 | 21460 | 11.81 | 300 | 1.5 |
| ES4P-16 | 25 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 28 | 4060 | 112 | 16240 | 13.39 | 340 | 2.00 |
| ES4P-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 21 | 3045 | 84 | 12180 | 18.11 | 460 | 3.00 |
| ES4P-24 | 38 | 1 1/2 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | 18.5 | 1680 | 74 | 10730 | 22.05 | 560 | 3.40 |
| ES4P-32 | 51 | 2 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 16.5 | 2390 | 66 | 9570 | 25.98 | 660 | 4.35 |
Packing:
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.How to pay ?
A:We support transfer money by all kinds of ways
