Home > Products > hydraulic hose > hot sales sae j517-100r1at hose braided hydraulic rubber flexible oem hose
hot sales sae j517-100r1at hose braided hydraulic rubber flexible oem hose
USD $0.9 - $2.5
/ Meter
10000 Meters(Min.Order)
- 3000 Meter / Meters per Month
- Tianjin
- T/T Credit Card
You May Like
-
cheap SAE 100R1AT wire braided function of hydraulic hose
-
SAE 100R1AT wire braided hydraulic hose 3/8
-
SAE 100 R1AT two wire braided hydraulic press machine hose
-
SAE 100 R1AT R2AT two steel wire braided high pressure fuel dispensing pump hose
-
SAE 100R1AT wire braided hydraulic hose pipe price list
-
SAE 100 R2AT two wire braided hydraulic rubber hose
Product Details
| Place of Origin | Hebei, China | Brand Name | Mder | |
| Model Number | SAE |
Product Description

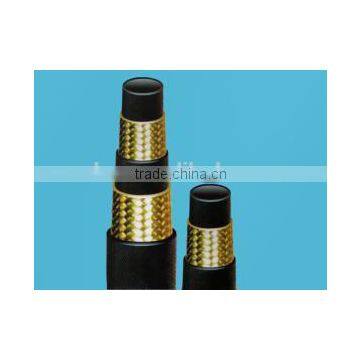

hot sales sae j517-100r1at hose braided hydraulic rubber flexible oem hose
Product Description
Note:for hose 1/4"-1" braided hose we can supply the length of 100m and more the maximum 1000 meters.
A. 1 braided hose B. 2 braided hose C. large braided hose
| M-RB1 (SAE 100 R1) Steel wire reinforced hydraulic rubber hose | ||||||||||||||||
| Type | SIZE | SIZE | ID | WD | OD | WP | BP | min BR | WT | |||||||
| A TYPE | AT TYPE | |||||||||||||||
| mm | inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Inch | mm | Kg/m | |
| RB1-03 | 5 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 | 21 | 3045 | 84 | 12180 | 3.54 | 90 | 0.20 |
| RB1-04 | 6.3 | 1/4 | 6.2 | 7.0 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 19.2 | 2780 | 77 | 11165 | 3.94 | 100 | 0.25 |
| RB1-05 | 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 17.5 | 2540 | 70 | 10150 | 4.53 | 115 | 0.31 |
| RB1-06 | 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.1 | 15.7 | 2280 | 63 | 9135 | 4.92 | 125 | 0.36 |
| RB1-08 | 12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 22.2 | 23.8 | 21.5 | 14 | 2030 | 56 | 8120 | 7.09 | 180 | 0.45 |
| RB1-10 | 16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 24.7 | 10.5 | 1520 | 42 | 6090 | 8.07 | 205 | 0.52 |
| RB1-12 | 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 28.6 | 8.7 | 1260 | 35 | 5075 | 9.45 | 240 | 0.65 |
| RB1-16 | 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 | 7 | 1015 | 28 | 4060 | 11.81 | 300 | 0.91 |
| RB1-20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 | 4.3 | 620 | 17.5 | 2540 | 16.54 | 420 | 1.30 |
| RB1-24 | 38 | 1 1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 52.0 | 3.5 | 510 | 14 | 2030 | 19.69 | 500 | 1.70 |
| RB1-32 | 51 | 2 | 50.4 | 52.0 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 | 2.6 | 380 | 10.5 | 1520 | 24.8 | 630 | 2.00 |
production process
Packaging & Shipping
Our Services
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
FAQ
FAQ
1.How to get free samples ?
A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
2.Who pay for the express cost ?
A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
3.How to pay ?
A:We support transfer money by all kinds of ways
website:
skype: makanlee
whatsapp: 0086 15614832000
wechat: 15614832000
Contact Us
- Mder Rubber And Plastic Technology Limited Company
- Contact nameMakan Li Chat Now
- Phone86-318-6116695
- AddressIndustrial zone of Jingxian, Hengshui, Hebei
