hot selling 2sn hydraulic steel braided air hose

FOB Price

USD $1.5 - $1.5 / Meter

10000 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Mder
Model Number	SAE

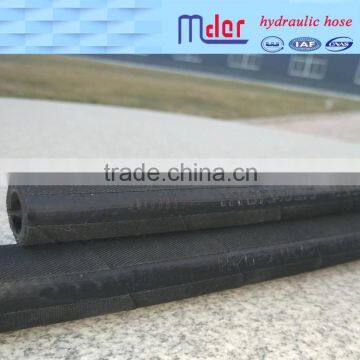

hot selling 2sn hydraulic steel braided air hose

Product Description

A. 1 braided air hose B. 2 braided air hose C. large braided air hose

M-RB1 (SAE 100 R1) Steel wire reinforced hydraulic rubber hose
Type	SIZE	SIZE	ID		WD		OD			WP		BP		min BR		WT
	SIZE	SIZE	ID		WD		A TYPE		AT TYPE	WP		BP		min BR		WT
	mm	inch	Min	Max	Min	Max	Min	Max	Max	Mpa	Psi	Mpa	Psi	Inch	mm	Kg/m
RB1-03	5	3/16	4.6	5.4	8.9	10.1	11.9	13.5	12.5	21	3045	84	12180	3.54	90	0.20
RB1-04	6.3	1/4	6.2	7.0	10.6	11.7	15.1	16.7	14.1	19.2	2780	77	11165	3.94	100	0.25
RB1-05	8	5/16	7.7	8.5	12.1	13.3	16.7	18.3	15.7	17.5	2540	70	10150	4.53	115	0.31
RB1-06	10	3/8	9.3	10.1	14.5	15.7	19.0	20.6	18.1	15.7	2280	63	9135	4.92	125	0.36
RB1-08	12.5	1/2	12.3	13.5	17.5	19.0	22.2	23.8	21.5	14	2030	56	8120	7.09	180	0.45
RB1-10	16	5/8	15.5	16.7	20.6	22.2	25.4	27.0	24.7	10.5	1520	42	6090	8.07	205	0.52
RB1-12	19	3/4	18.6	19.8	24.6	26.2	29.4	31.0	28.6	8.7	1260	35	5075	9.45	240	0.65
RB1-16	25	1	25.0	26.4	32.5	34.1	36.9	39.3	36.6	7	1015	28	4060	11.81	300	0.91
RB1-20	31.5	1 1/4	31.4	33.0	39.3	41.7	44.4	47.6	44.8	4.3	620	17.5	2540	16.54	420	1.30
RB1-24	38	1 1/2	37.7	39.3	45.6	48.0	50.8	54.0	52.0	3.5	510	14	2030	19.69	500	1.70
RB1-32	51	2	50.4	52.0	58.7	61.9	65.1	68.3	65.9	2.6	380	10.5	1520	24.8	630	2.00

Packaging & Shipping

Our Services

We can offer OEM Services

We can provide FREE SAMPPLE for our customers

We can crimp hose assembly for our customers.

We welcome clients to visit our factory leading to better understanding of our production.

FAQ

1.How to get free samples ?

A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .

2.Who pay for the express cost ?

A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .

3.How to pay ?

A:We support transfer money by all kinds of ways
