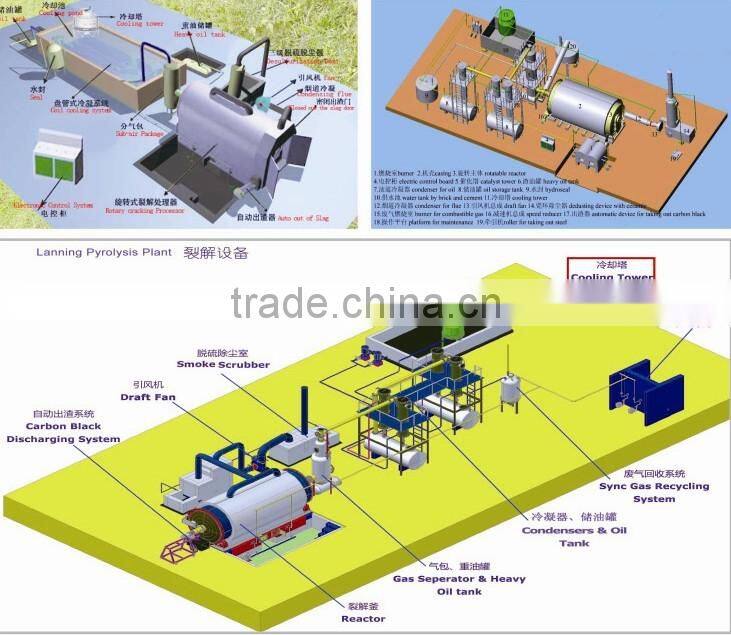

Waste Rubber Pyrolysis to Oil Plant

Reactor material

     Q345Q,Q245R

Model

     LN-2800-6000

Size

    D2800mm*L6000mm

Thickness

    14mm, 16mm

Voltage

    380V

Power

    15kw

Weight

    32ton

Capacity

    8~10ton per day

Worker needed

    4

Land needed

   300~400 square meter

Average oil yield

    45%~48%

     6~8 years

After service

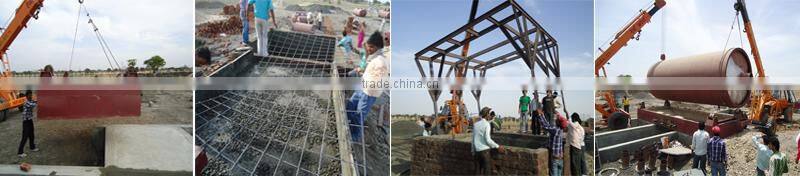

installation and training

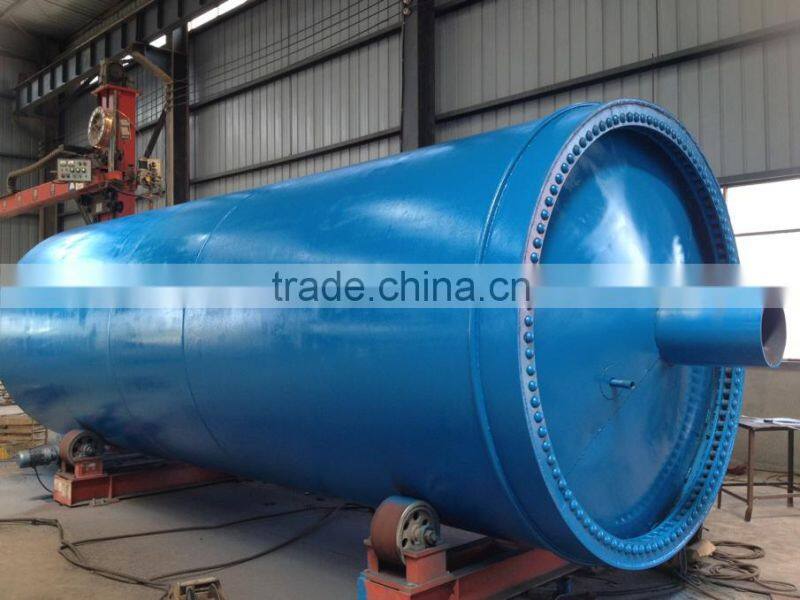

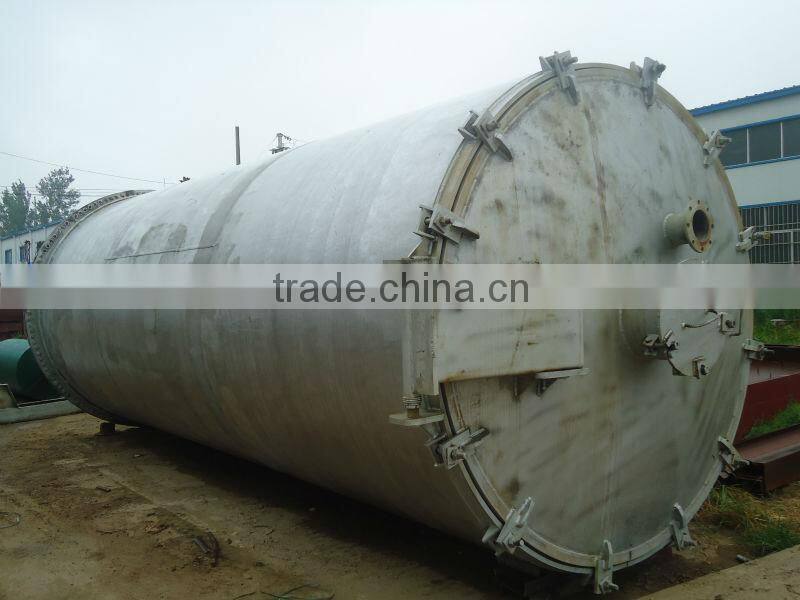

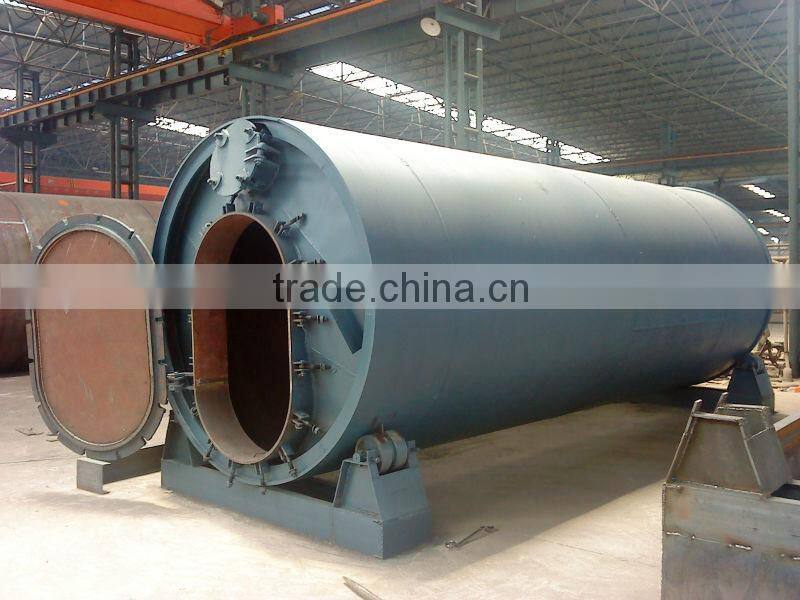

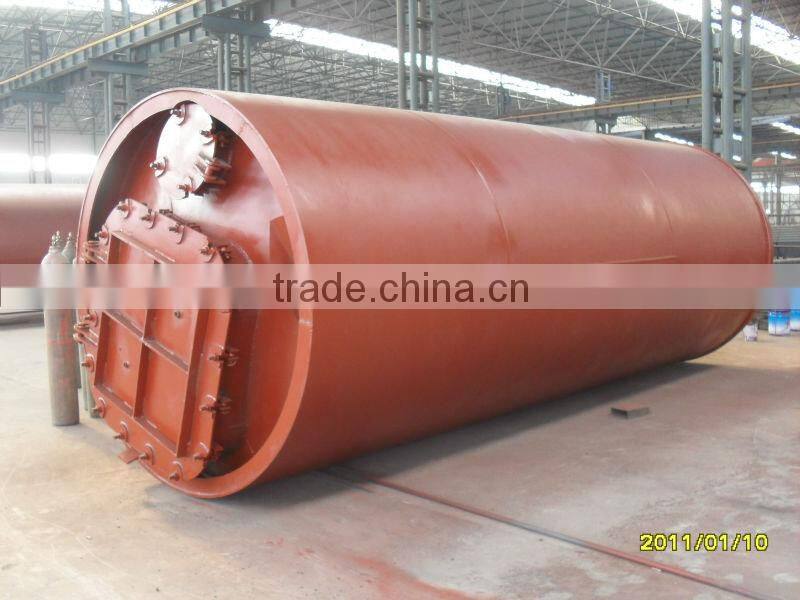

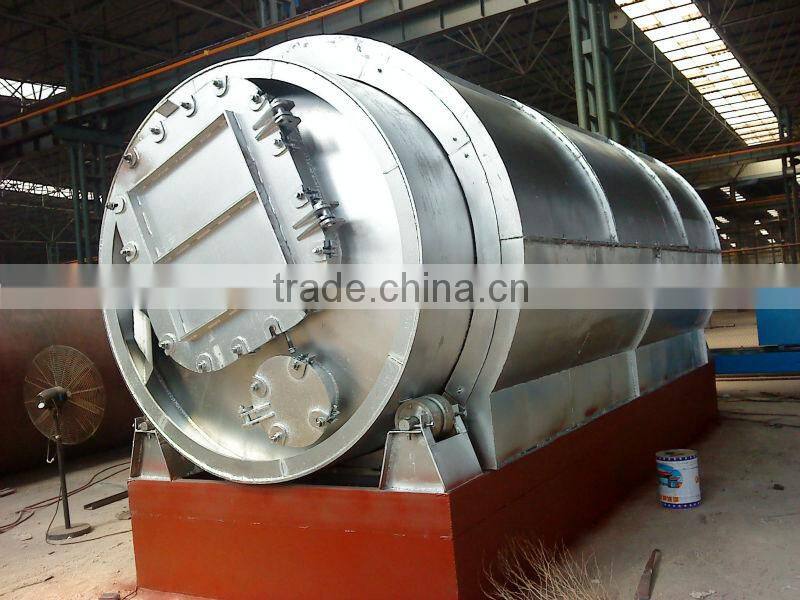

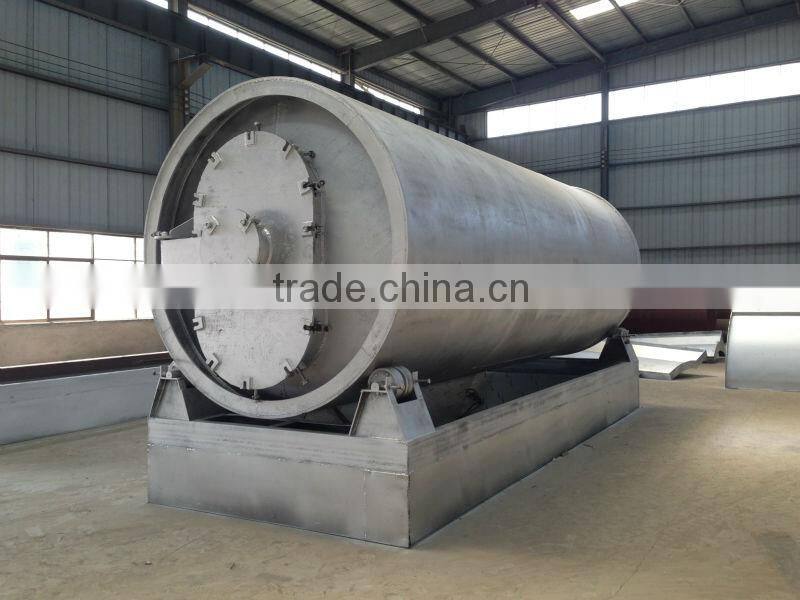

Reactor

1. Made by Q345R boiler plate. Also can choose Q235R

2. Auto-welding both inside and outside

3. With rock wool insulation board

Auto-feeder

1. 50 ton hydraulic pressure

2. Can feed all types of materials

3. Save labor and save time

Catalyst chamber

1. improve oil yield and oil quality

2. Reduce the speed of oil gas so that it can be better cooled

Oil-water separator

1. Separate oil and water

2. Collect heavy oil

3. Water sealing design keep safety

Condenser

1. The oil gas is cooled separately by small pipes inside condenser

2. Light oil is collected here

Vacuum device

Keep machine running under normal pressure

Anti-back fire device

1. Recycle residual gas to furnace as fuel

2. Water sealing design prevent tempering

Dust removal device

Dispose of flue gas caused by using coal, wood, oil or natural gas.

Ningling Lanning Technology Co.,Ltd is located in the historical and culturical city–ShangQiu. We are a proffessional manufacturer of waste tyre pyrolysis machine, waste plastics pyrolysis machine, waste oil distillation machine.

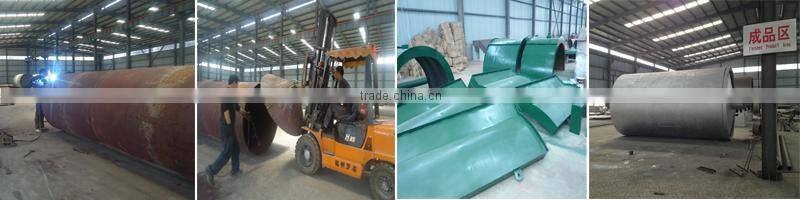

Our company is supported by local government, so low tax, competitive price. We specialize in manufacturing waste tyre pyrolysis machine, waste rubber pyrolysis machine and waste plastic pyrolysis machine. The technology has obtained environmental protection certificate and some national patents which produce oil by refining waste rubber , waste plastic and waste tyre . We have advanced production facility such as automatic submerged arc welding machine, ultrasonic flaw-detecting machine, CO gas shielded welding machine and so on.
