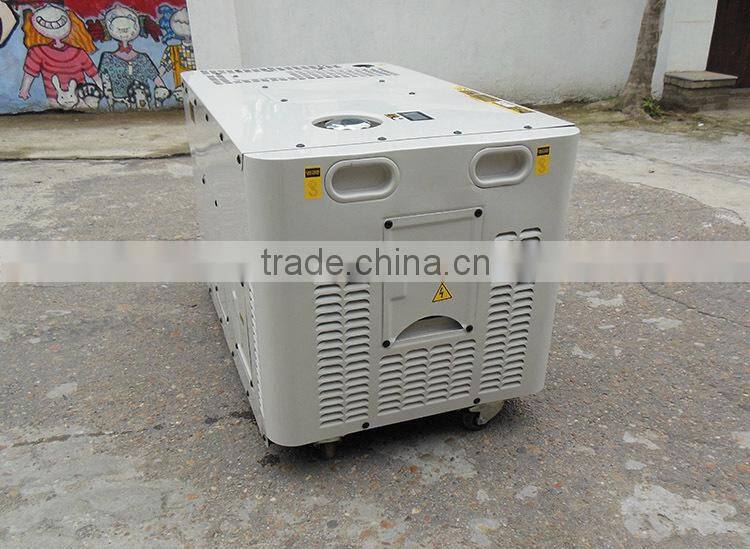

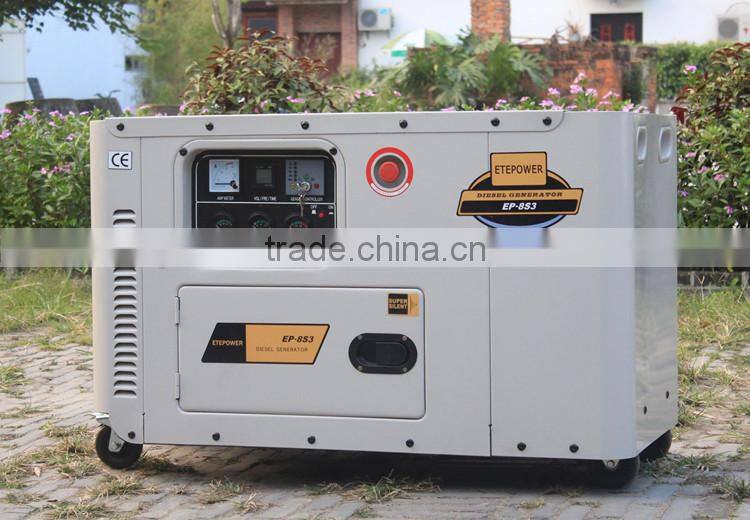

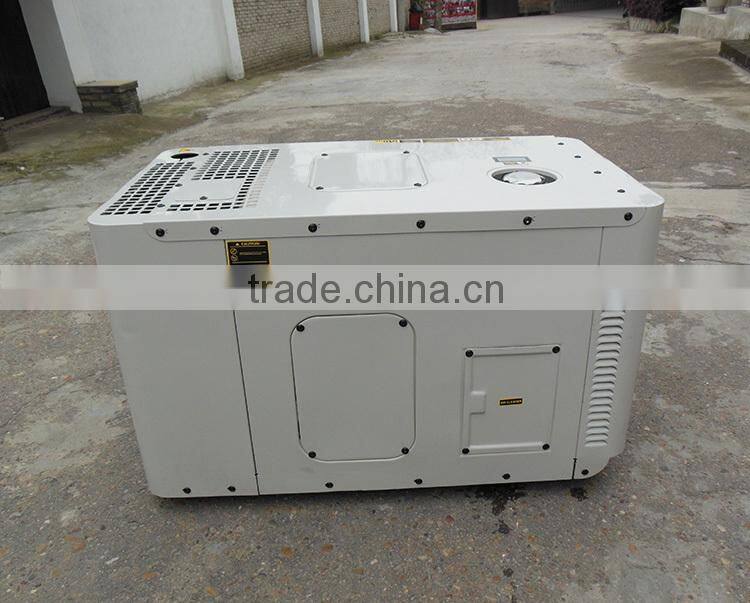

Silent Diesel Generator 10kw 12.5kva

Prime Power

10KW/12.5KVA

Standby Power

11KW/13.7KVA

Rated Speed

3000RPM

Output Frequency

50HZ

Phase

3

Rated Voltage

400V

Engine Model

EV80

Alternator Model

XNF-10

Fuel Consumption of 100% load

2.7L/H

Fuel tank capacity(L)

24

Voltage Regulation Rate

≤±1%

Random Voltage Rate

≤±1%

Frequency Regulation Rate

≤±5%

Random Frequency Variation

≤±0.5%

Dimension (silent type)

1150X650X730(mm)

Weight (silent type)

260kg

20' container qty(normal loading)

54

40' HQ container qty(normal)

114

Engine Model

EV80

Number of Cylinder

Two

Cylinder arrangement

Vertical in-line

Cycle

Four Stroke

Aspiration

Natural Aspiration

Bore×Stroke (mm×mm)

80×79

Displacement (ml)

794

Starting System

Electric starting

Continue Running Time

≥10 hr

Fuel tank capacity

14L

Compressin ratio

23:1

Cooling System

Water-cooled

Fuel Tank Type

With zinc-plated inside

Engine power

12kw

Combustion Syetem

Direct Inject

Fuel Consumption at 100% Load(g/kwh)

285(at 3000RPM)

Battery capacity(V-Ah)

36

Alternator Model

XNF-10

Alternator Brand

China Stamford

Exciter Type

Brush

Rated Output

10kw

Rated Speed

3000RPM

Rated Frequency

50HZ

Phase

Three

Rated Voltage

400V (Available with customer requirements)

Power Factor

0.8

Voltage Adjust Range

≥5%

Voltage Regulation NL-FL

≤±1%

Insulation Grade

F

Protection Grade

IP20

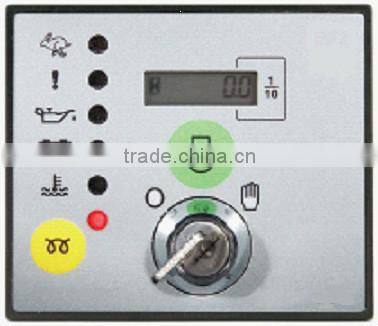

170 Genset Controller

The 170 is available in Manual and Auto Start versions including all the features of the 170 plus a tamper proof engine hours

Counter.

Both modules include a remote

start signal input. This input allows the module to be started from a pre-defined remote location.
