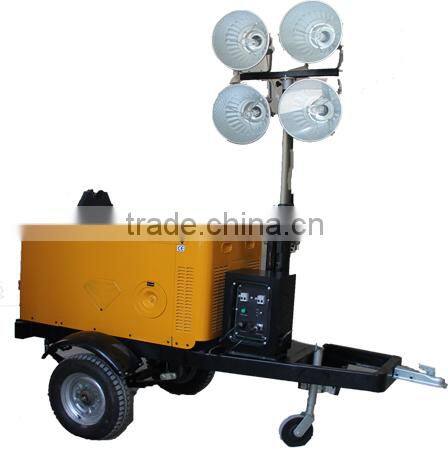

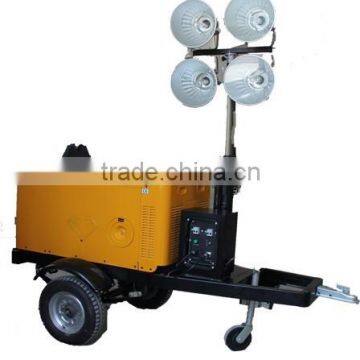

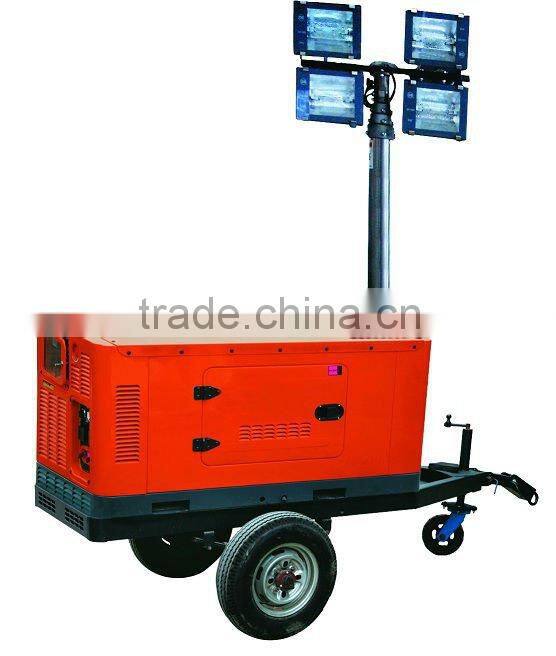

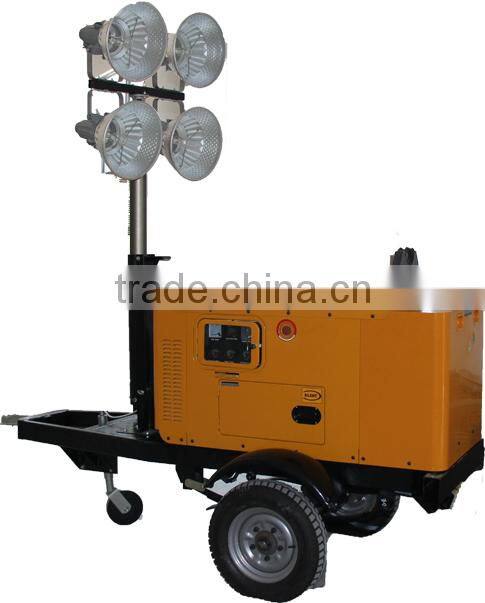

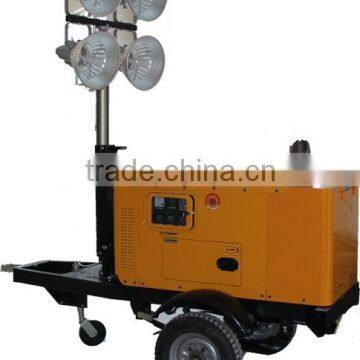

Manually Air-lifted Mast Light Tower Diesel Generator 16KW/20KVA

Specifications

Manually Air-lifted Mast Light Tower Diesel Generator 16KW/20KVA

Light Tower Specifications

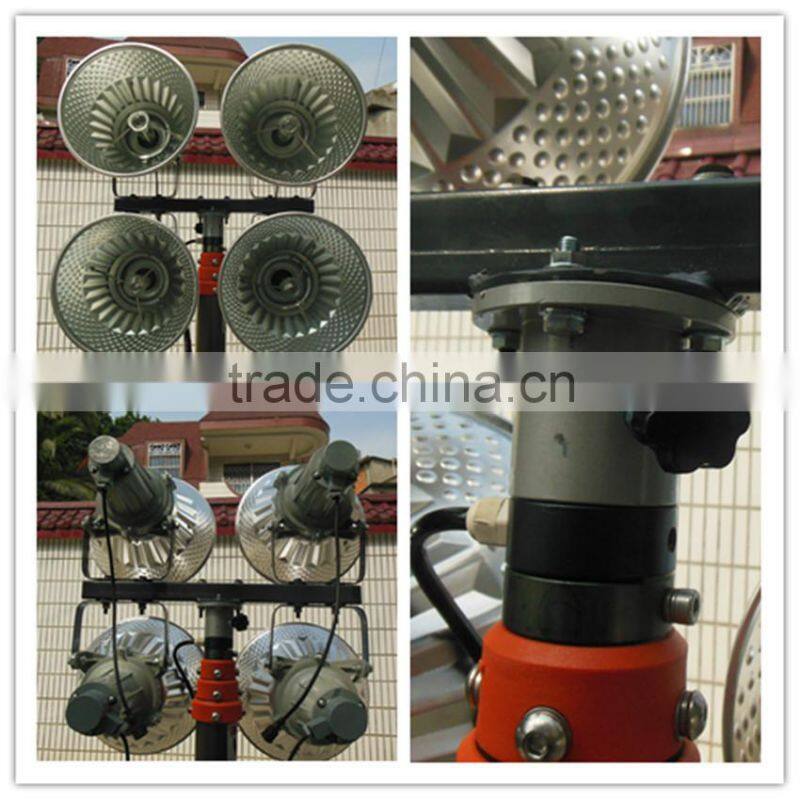

Metal Halide Lamps

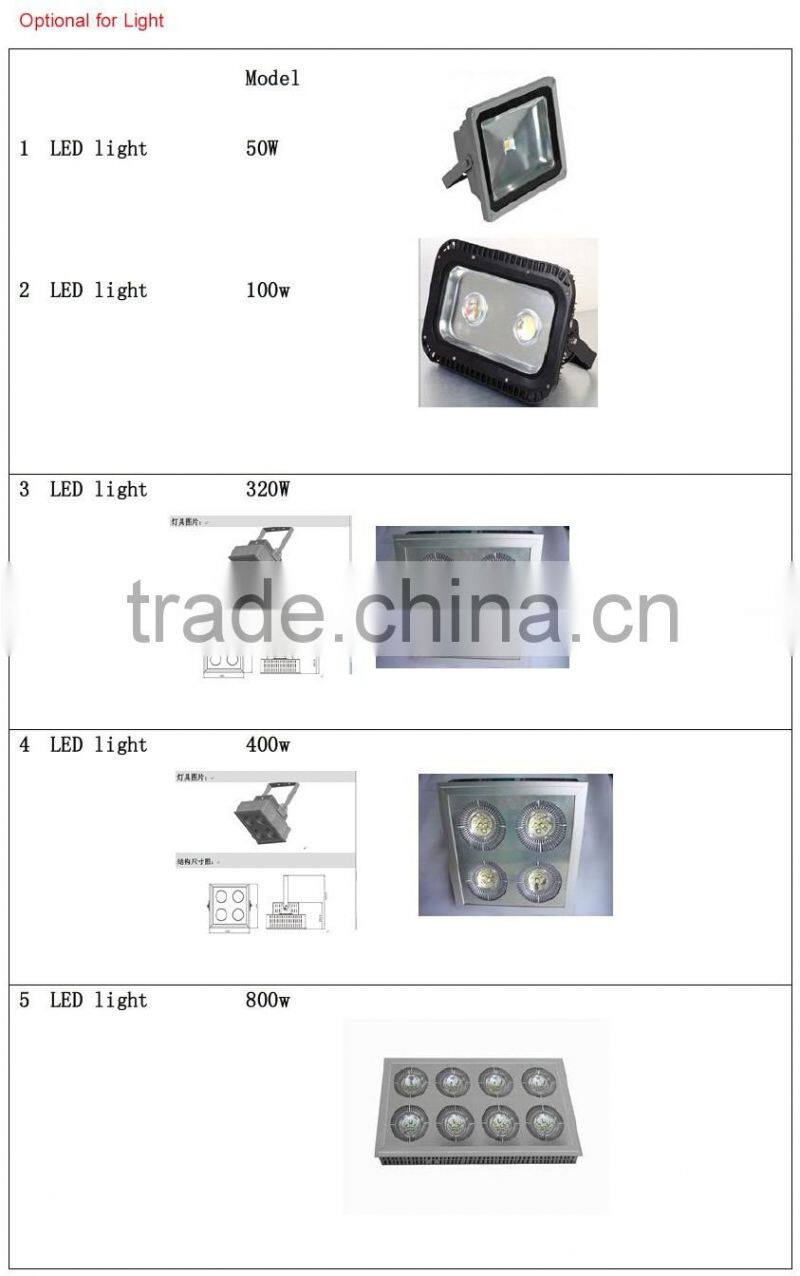

LED Lamps

3-PH, 50Hz@1500RPM, 220 (Also Can Be Made According To Customers’ Special Requirements)

1.Composed of 186FA diesel engine and China Alternator

2.12V DC start motor and storage battery

3.Brush, Self-excited, IP20, insulation class F alternator

4.Key start panel control system as standard, digital auto-start panel is optional

5.8-hour operationTOP tank

6.Optional open type or silent type

7.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Prime Power:

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annul hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby Power:

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

Rated Voltage:

Available with customer requirements.

Diesel Engine

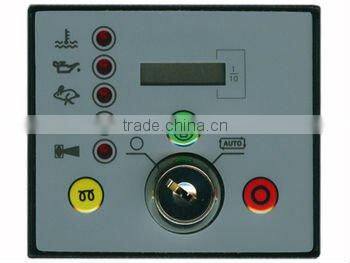

170 Genset Controller

Specifications:

DC Supply

8V to 35V continuous

Cranking Droputs

Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries.

Alternator Input Frequency

50Hz – 60Hz at rated engine speed (minimum:15V Overspeed: nominal frequency +14% (+24% overshoot)

Alternator Input Range

15-305 V AC RMS (+20%)

Start Output

Solid state 1.2A negative grounding

Run Output

Solid state 1.2A negative grounding terminal

Pre-heat Output

Solid state 1.2A negative grounding terminal

170 Dimensions

84mm x 72mm x 34.9mm

3.3” x 2.8” x 1.4”

Excludes key switch

170 Cut Out

80mm x 68mm

3.1” x 2.7”
