6000mm Hydraulic Scissor Lift Capacity 500kg
- Shanghai Qingdao
- T/T
You May Like
-
6m Hydraulic Scissor Lift Capacity 500kg With Low Price
-
8m Hydraulic Scissor Lift Capacity 500kg With Low Price
-
7m Hydraulic Scissor Lift Platform Capacity 500kg
-
9m Hydraulic Scissor Lift Capacity 500kg With High Quality
-
10m Hydraulic Scissor Lift Platform Capacity 500kg
-
11m Hydraulic Scissor Lift Capacity 500kg With Low Price
Product Details
| Place of Origin | Jiangsu, China | Brand Name | VLIFT | |
| Model Number | VHSL-6 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

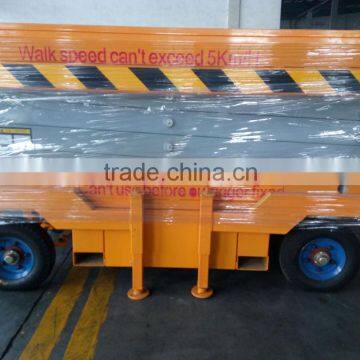

6000mm hydraulic scissor lift capacity 500kg
The series scissor lift include: 4-wheel moving, 3-wheel auto-moving, 2-wheel drawing, the main structure is made of manganese steel rectangle pipe which is made from Shanghai Baosteel Group. The lifting and droping of the table is by electric or manual, by which there is a better performance in moving, lifting, operation and loading. The power input can be designed according to customers’ requests, the hydralic pumps are from Italy or Chinese famous manufacturer. On the operation table, there is slideproof and insulation rubber plate, which is beautiful and easy replacing. Mainly used for aerial operation in mining plants, work shops, ship plants and dock etc.
| Specification for Scissor lift VHSL series | |||||
| Model | Platform size | Loading capacity | Lifting height | Overall dimension(mm) | Self-weight (Kg) |
| Loading capacity : 300KG | |||||
| VHSL0.3-4 | 2100*820mm | 300kg | 4m | 2200*980*1100 | 750 |
| VHSL0.3-6 | 2100*820mm | 300kg | 6m | 2200*950*1200 | 850 |
| VHSL0.3-7 | 2100*820mm | 300kg | 7m | 2200*950*1280 | 900 |
| VHSL0.3-8 | 2100*900mm | 300kg | 8m | 2200*1060*1380 | 1050 |
| VHSL0.3-9 | 2100*900mm | 300kg | 9m | 2200*1060*1500 | 1200 |
| VHSL0.3-10 | 2100*1200mm | 300kg | 10m | 2200*1350*1530 | 1450 |
| VHSL0.3-11 | 2100*1200mm | 300kg | 11m | 2200*1400*1650 | 1650 |
| VHSL0.3-12 | 2550*1500mm | 300kg | 12m | 2720*1670*1750 | 2400 |
| VHSL0.3-14 | 2550*1500mm | 300kg | 14m | 2800*1800*1950 | 2750 |
| VHSL0.3-16 | 3070*1600mm | 300kg | 16m | 3250*1800*1920 | 3400 |
| VHSL0.3-18 | 3070*1600mm | 300kg | 18m | 3250*1800*2080 | 3600 |
| Loading capacity : 500KG | |||||
| VHSL0.5-4 | 2100*800 | 500 | 4m | 2200*1100*1300 | 830kg |
| VHSL0.5-6 | 2100*800 | 500 | 6m | 2200*1100*1300 | 900kg |
| VHSL0.5-7 | 2100*800 | 500 | 7m | 2200*1100*1350 | 950kg |
| VHSL0.5-8 | 2100*900 | 500 | 8m | 2200*1200*1450 | 1100kg |
| VHSL0.5-9 | 2100*900 | 500 | 9m | 2200*1200*1500 | 1260kg |
| VHSL0.5-10 | 2100*1200 | 500 | 10m | 2200*1400*1550 | 1500kg |
| VHSL0.5-11 | 2100*1200 | 500 | 11m | 2200*1400*1700 | 1700kg |
| VHSL0.5-12 | 2550*1500 | 500 | 12m | 2800*1800*1750 | 2480kg |
| VHSL0.5-14 | 2550*1500 | 500 | 14m | 2800*1800*1750 | 2800kg |
| VHSL0.5-16 | 3220*1650 | 500 | 16m | 3600*1950*2200 | 4500kg |
| VHSL0.5-18 | 3220*1650 | 500 | 18m | 3600*1950*2400 | 4800kg |

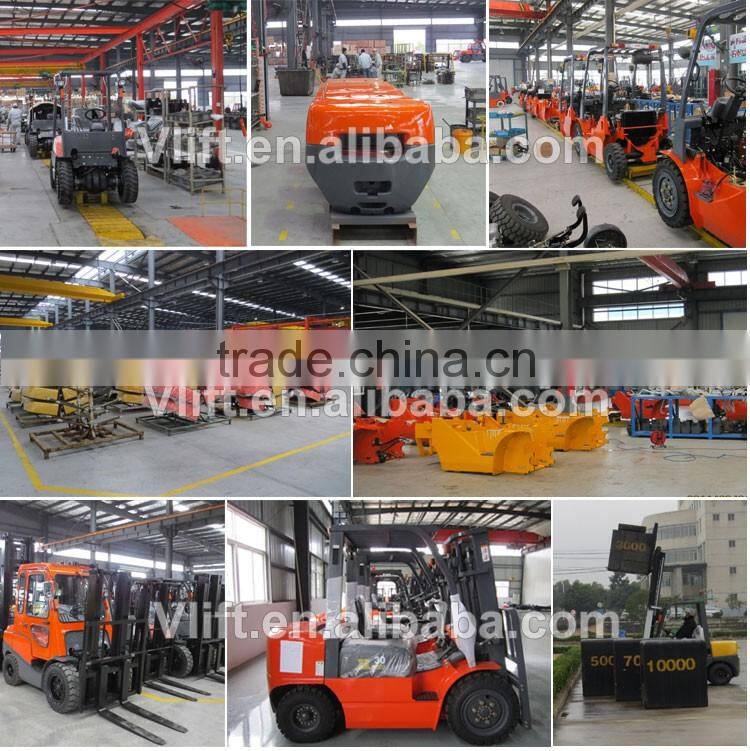

Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
| | | | | |
| diesel forklift | electric forklift | electric stacker | manual stacker | scissor lift | dock ramp |
| Shanghai Vlift Equipment Co., LTD. |
| Website: | Quality first, Reputation foremost. |
| Office phone: 0086 21 58109658 | |
| Mobile: 0086 18918736692 | |
| Email: info&( Please replace C to @ ) | |
| Skype: Vlift-Anna | |
| Whatsapp: 0086 18918736692 |
