Home > Products > Hydraulic diesel forklift truck > Forklift 5 Ton Brand Near TCM
Forklift 5 Ton Brand Near TCM
USD $15,800 - $17,000
/ Set
1 Set(Min.Order)
- 500 Piece / Pieces per Month
- Shanghai Qingdao Ningbo port for forklift
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | VLIFT | Model Number | CPCD50 | |
| Type | Other, forklift | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 5000kg | Max. Lifting Height | 4415mm | |
| Min. Lifting Height | 2500mm | Fork Length | 1220mm | |
| Fork Width | 150mm | Overall Dimensions | 3455*1995*2500mm | |
| Certification | CE ISO SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Forklift 5 Ton Brand Near TCM
Product Description
| CPCD50 DIESEL FORKLIFT SPECIFICATION | |||||
| General | 1 | Model | CPCD50 | ||
| 2 | Power Type | Diesel | |||
| 3 | Rated Capacity | kg | 5000 | ||
| 4 | Load Centre | mm | 500 | ||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 | |
| 6 | Fork Size (L×W×T) | mm | 1220×150×60 | ||
| 7 | Mast Tilt Angle (F/R) | Deg | 6°/12° | ||
| 8 | Front Overhang (Wheel center to fork face) | mm | 570 | ||
| 9 | Ground Clearance(Bottom of mast) | mm | 160 | ||
| 10 | Length to face of fork(Without fork) | mm | 3455 | ||
| 11 | Overall Width | mm | 1995 | ||
| 14 | Overhead Guard Height | mm | 2500 | ||
| 15 | Turning Radius (outside) | mm | 3250 | ||
| Performance | 16 | Travel Speed (No load) | km/h | 30 | |
| 17 | Lifting Speed (Full load) | mm/s | 500 | ||
| 18 | Max.Gradeability (No load/Full load) | % | 20 | ||
| Chassis | 19 | Front Tire | mm | 8.25-15-14PR | |
| 20 | Rear Tire | mm | 8.25-15-14PR | ||
| 21 | Wheelbase | mm | 2100 | ||
| Power&Transmission | 23 | Battery Voltage/Capacity | V/Ah | (12/80) ×2 | |

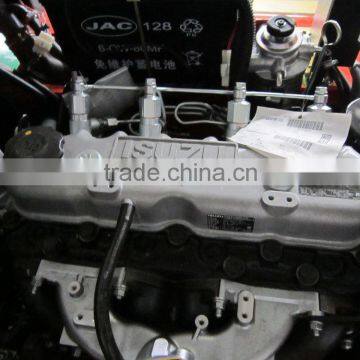

| 24 | Engine Model | YTO4108 | |||
| 25 | Manufacture | China | |||
| 26 | Rated output/r.p.m. | kw | 82.3/2000 | ||
| 27 | Rated torque/r.p.m. | N·m | 416/1400-1600 | ||
| 28 | No.of Cylinder | 4 | |||
| 29 | Bore×Stroke | mm | 105×127 | ||
| 30 | Displacement | cc | 4400 | ||
| 31 | Fuel Tank Capacity | L | 140 | ||
| 32 | Transmission Type | Hydraulic | |||
| 33 | Stage (FWD/RVS) | 2/2 | |||
Packaging & Shipping
Vlift forklift export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
Certifications
Our Factory Show
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
