Product Details
Place of Origin | Jiangsu, China | Brand Name | VLIFT | |
Model Number | VPT20-15SET | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

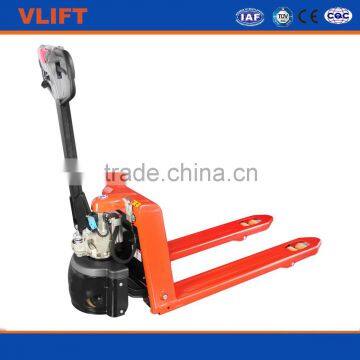

1.5 ton semi electric pallet truck with light weight great capacity
1.5 ton semi electric pallet truck with light weight great capacity | |||
1.2 | Model designation | VPT20-15SET | |
1.3 | Drive unit | Battery | |
1.4 | Operator type | Walkie | |
1.5 | Load capacity | Q (kg) | 1500 |
1.6 | Load center | c (mm) | 600 |
1.8 | Load distance (Raised/ Lowered) | x (mm) | 883/946 |
1.9 | Wheelbase | y (mm) | 1152/1215 |
Weights | |||
2.1 | Service weight (Incl. battery) | kg | 140 |
2.2 | Axle loading, laden operator/load side | kg | 540/1100 |
2.3 | Axle loading, unladen operator/load side | kg | 110/30 |
Wheels, Chassis | |||
3.1 | Tyre type | PU/ PU | |
3.2 | Tyre size, operator side | 210x70 | |
3.3 | Tyre size, load side | 2x80x60 | |
3.5 | Wheels, number operator/load side (x=drive wheels) | 1x/ 4 | |
3.7 | Tread, load side | b11 (mm) | 410 |
Dimensions | |||
4.4 | Lift height | h3 (mm) | 115 |
4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 715/1280 |
4.15 | Fork height, lowered | h13 (mm) | 85 |
4.19 | Overall length | l1 (mm) | 1588 |
4.20 | Length to face of forks | l2 (mm) | 438 |
4.21 | Overall width | b1/ b2 (mm) | 560 685 |
4.22 | Fork dimensions | s/ e/ l (mm) | 55/ 150/ 1150 |
4.25 | Fork spread, min/ max | b5 (mm) | 560 |
4.32 | Ground clearance, center of wheelbase | m2 (mm) | 35 |
4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1669 |
4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 1869 |
4.35 | Outer turning radius | Wa (mm) | 1415 |
Performance | |||
5.1 | Travel speed, laden/ unladen | km/ h | 3.5/ 4 |
5.2 | Lifting speed, laden/ unladen | m/ s | 10min/time |
5.3 | Lowering speed, laden/ unladen | m/ s | controlable |
5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 2/ 6 |
5.10 | Service brake | Electromagnetic | |
Drive | |||
6.1 | Drive motor rating S2 60 min. | kW | 0.65 |
6.2 | Lift motor rating at S3 15% | kW | manual lifting |
6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 30 |
6.5 | Battery weight | kg | 9.2*2 |
Battery compartment dimensions l/ w/ h | mm | 185/125/ 190 | |
Battery type | Maintenance free battery | ||
Others | |||
8.1 | Type of drive control | DC | |
Manufacturer | CURTIS | ||
8.4 | Sound level at operator's ear | dB (A) | 74 |
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
