Home > Products > Overlap welding Al-plastic composite pipe machine > Plastic Pipe Extrusion Machine for PEX AL PEX/PERT AL PERT/PPR AL PPR Pipes
Plastic Pipe Extrusion Machine for PEX AL PEX/PERT AL PERT/PPR AL PPR Pipes
- Qingdao Port aluminum plastic pipe making machine
- T/T
You May Like
-
PPR-AL-PPR/PEX-AL-PEX Pipe Making Machine/production Line
-
PEX AL PEX/PERT AL PERT Pipe Extrusion Line/ Pipe Production Line Factory Supplier
-
PPR AL PPR/PEX AL PEX Plastic Pipe Production Machine Factory Supplier
-
Plastic Pipe Production Line for PPR AL PPR/PEX AL PEX Pipes
-
Plastic Pipe Making Machine for PEX AL PEX/PPR AL PPR Pipes
-
Plastic Pipe Extrusion Machine for PEX AL PEX/PERT AL PERT/PPR AL PPR Pipes
Product Details
| Condition | New | Application | Other, aluminum plastic pipe making machine | |
| Plastic Processed | Other, PPR,PEX,PERT, AL, GLUE | Screw Design | Single-screw | |
| Automatic Grade | Automatic | Place of Origin | Shandong, China | |
| Brand Name | KAIDE | Model Number | SJ45/30 | |
| Voltage | 380V | Power(W) | 90KW | |
| Dimension(L*W*H) | 35mx3.5mx2.5m | Weight | 7000KG | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
plastic pipe extrusion machine for PEX AL PEX/PERT AL PERT/PPR AL PPR pipes
- PPR-AL-PPR pipe making machine
- PPR AL PPR pipe making machine
- PPR AL PPR pipe production line
- PEX AL PEX pipe line
- PEX-Al-PEX pipe extrusion machine
1.General Information
Overlap Welding PPR-AL-PPRPipe Production Line Features:
- 1)Mature co-extrusion and ultrasonic welding technique integrated with a completely automatic control system.
- 2)Generally, the produced pipe diameter scope is from 16mm to 63mm, The line is easy to operate and has high stability.
- 3)High Precision Aluminum forming mould system and unique rolics calibration moulds make sure the pipe is produced at perfect roundness and stable condition for welding.
- 4)This PPR-AL-PPR Composite Pipe extrusion line adopts adhesive and glue co-extrusion for inner layer, and separate step extrusion for outer layer. This helps form a strong Aluminum-Plastic adhesion and also facilitates heat dissipation, making it easy to adjust for different sizes replacement.
- 5)KAIDE's Overlap Welding PPR-AL-PPR Pipe Production line incorporates a Programmable Logic Controller (PLC) system and a Human Machine Interface (HMI) for the entire pipe extrusion line, making it easier for our clients' employees to operate. It also realize auto-synchronization across different variables.
- 6)We also optimize the configuration of entire production line based on the needs of our customers.
- 7)Our overlap welding ppr-al-ppr composite pipe line ,ppr-al-ppr composite pipe line,pert-al-pert composite pipe line,pe-al-pe pipe line has exported to Russia,Ukraine,Iran,Algeria etc!And it has enjoyed great reputation for our higher machine quality and better service!
2.Technical Data
Line Model | Extruder Model | L/D | Production Scope | Production Speed | Total Power | Actual Power |
SJ-45 | SJ- 45/45/30 | 33/25/25:1 | Φ16-32mm | 4-9m/min | 83KW | 46KW |
SJ-50 | SJ- 50/45/30 | 33/30/25:1 | Φ 16-63mm | 1-9m/min | 120KW | 66KW |
3. Composition include:
- Aluminum tape releaser
- Aluminum tape saving machine
- Aluminum tape connecting machine
- Aluminum tape forming machine
- Inner pipe extruder
- Outer pipe extruder
- Inner & outer Glue extruder
- Co-extrusion die head
- Ultra-sonic welding machine
- Cooling flume
- Pulling machine
- Coiling machine
- PLC computer

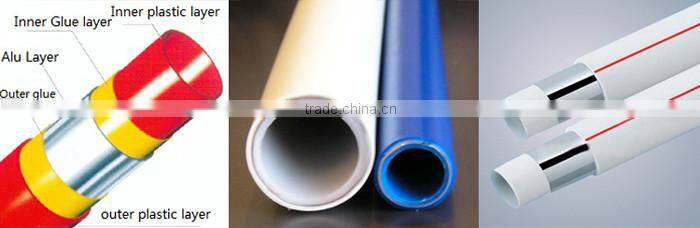

4.Manufactured Pipe
- 1) Produced pipe: PEX-AL-PEX; PERT-AL-PERT; PE-AL-PE; PPR-AL-PPR
- 2) This composite pipes have some good characteristics, such as no deformation under high temperature and pressure in long time; excellent oxygen resistance, high mechanical properies, santitary, corrosion resistance, low thermal conductivity, long life span etc. Its suitalbe for building systems in hot and cold water, floor heating sytem and air conditioning system.

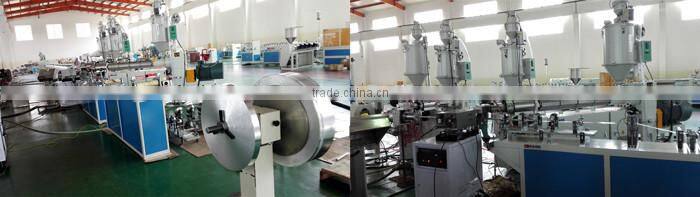

5.Machine details
It has five layers: Polypropylene-glue-aluminum-glue-polypropylene. Aluminum layer as the reinforcement agent and blend PP-R and metal. PP-R aluminum PP-R pipe making machine

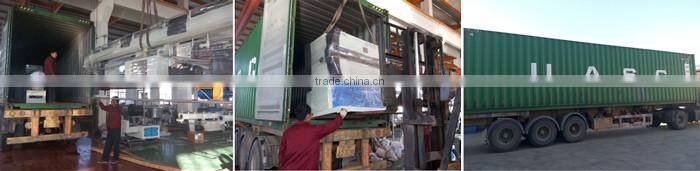

6.Shippment
Our company is a factory special in manufacturing Plasric Pipe Extrusion Machine,especially high speed plastic pipe making machine and composite mutilayer plastic pipe making machine.

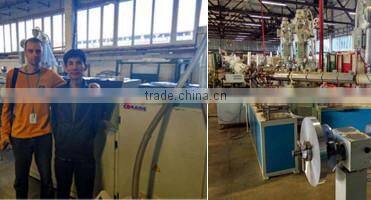

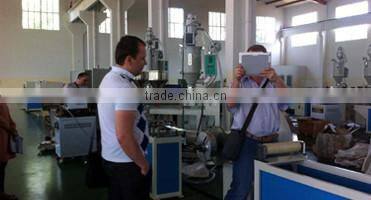

7.Some customers and machine in customer's factory photos:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
KAIDE Plastics Pipe Extrusion Making Machine List: | |
PPR/PERT pipe extrusion making machine | PEXa pipe extrusion making machine |
Glass fiber PPR pipe extrusion making machine | PEXb pipe extrusion making machine |
HDPE pipe extrusion making machine | PB pipe extrusion making machine |
PA pipe extrusion making machine | EVOH pipe extrusion making machine |
Al-plastic pipe extrusion making machine | PVC/PA/PE corrugated pipe extrusion making machine |
Drip irrigation pipe extrusion making machine | PVC steel reinforced pipe extrusion making machine |
