HDPE PE Micro Duct Silicium Tube Making Machine/production Line

HDPE PE Micro duct silicium tube making machine/production line

Specification:

1 HDPE Micro duct Silicon core pipe making machine/production line

2 High speed: 50m/min

3 Control system: Siemens PLC

4 CE,ISO

1.General Information

HDPE Silicon Microducts Pipe Making Machine General Description:

• 1)The HDPE silicon microduct pipe making machine,is used to produce two layers composite HDPE silicon micro duct,adopt advanced multiple extruder synchronous co-extrusion technology.
• 2)Main raw material is HDPE&Silica filter.
• 3)The manufactured pipe: HDPE silicon micro duct is widely used in the Opticalcable communication network system of expressway,railway.
• 4)KAIDE factory specialized in multilayer composite pipe extrusion machine for over 15 years,has exported to many countries and area in the world,such as Russia,Korea,Japan,Iran,Mexico,Saudi Arabia etc,and enjoyed customer’s good  praise.

 2. HDPE Silicon micro duct machine specification:

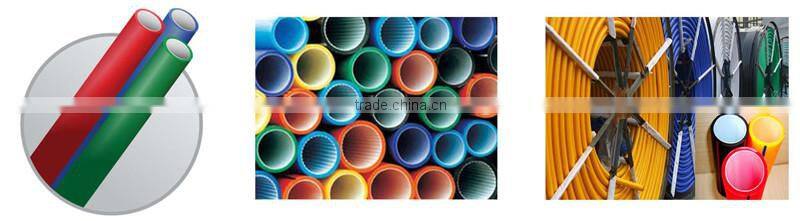

3.Manufactured Pipe Photo

Its construction has the following characteristics:

• 1)Two layers, inner and outer layer is manufactured by the technology of synchronized extrusion of PE in order to achieve the tight joint without separation.
• 2)Inner wall of duct has two kinds: smooth inner wall or the inner wall with longitudinal ribs to guide the airflow. No matter which kinds, both are permanently solid lubricant layer with very low friction of coefficient.
• 3)The duct surface is smooth without defects such as visible holes or scars..

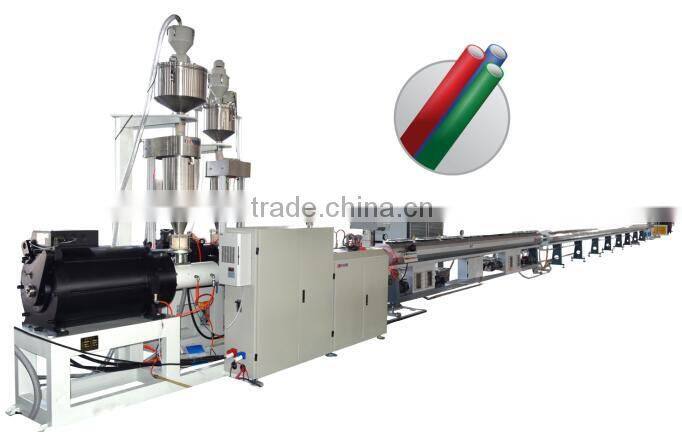

  4. PE Silcon Microduct Bundle Tube Production Machine photo

• 1)The screw of HDPE Extruder and Silicone core Extruder are specially precoessed, provide the excellent plasticization and high extrusion output.
•  2)High precision and high speed haul-off machine,with servo motor drive, guaranteed the line stable production, specially designed for smaller pipe hauling.
• 3)Advanced Siemens PLC control system was applied into this HDPE Silicone core pipe making machine.
• 4)High precise control system of pipe weight per meter is applied in this HDPE silicone core microducts making machinery. Such device will feed material precisely accroding to the weight per meter and line speed changing; to get a precise gram weight control of the final pipe,saving raw materials.

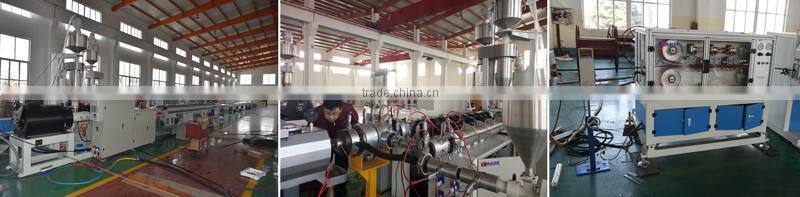

5. KAIDE Factory:

• 1)Most professional multi-layer composite pipe machine manufacturer in China!
• 2)The birthplace of the first high speed plastic pipe production line in China!

5. Contact info:

Warmly welcome to visit our factory to see machine and discuss further~~
