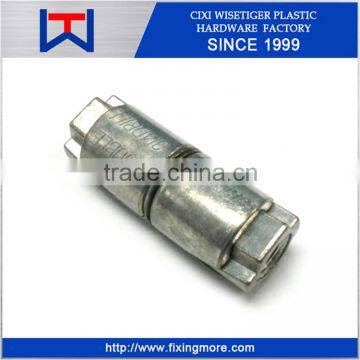

ZAMAK Expansion Anchor zinc alloy double drill anchor
- 1000000 Piece / Pieces per Month
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot sales zinc alloy double expansion anchor Bolt
-
Zinc alloy double ground screw anchor
-
Zamak double fish type expansion shell anchor 1/4-3/4 USA
-
Zinc alloy Concrete Lag Shield Anchor
-
Hardware fastener high quality zamak alloy Double expansion anchor manufacture
-
Long type Zinc alloy lag screw shield anchor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | fixingmore | |
| Model Number | OEM | Type | Expansion Anchor | |
| Material | Steel | Diameter | 1/2" to 1-1/4" | |
| Length | 1-3/8" to 3-15/16" | Capacity | 225-2040 LBS. | |
| Standard | Other, DIN, ANSI,ASTM, GB,etc |
Product Description
Double expansion anchors are designed for anchoring into concrete, brick or block base material.
Inserting a machine-treaded bolt into the anchor expands the Double Expansion Anchor against the concrete at two points.
It is made from Zamak, a non-rusting material, and is available in diameters ranging from 1/4" to 3/4".
The double expansion anchor is set flush with the base material and is considered a light to medium-duty fastener.
Double expansion allows for better holding values.
Concrete
Block
Brick
Stone Base Materials
1. Using a hammer drill and a carbide tipped masonry bit, drill a hole of recommended diameter (see chart below) into the base material to a depth equal to, or slightly deeper than, the length of the expansion shield.
2. Clear the hole of all debris.
3. Place the Double Expansion anchor, nut end first, into the hole. The top end of the anchor should be flush or slightly below the base material surface.
4. Place the object to be fastened over the anchor in the base material and bolt in to place. The bolt should sufficiently engage the threads of the anchor.
| CODE | SIZE | DRILL DIA. | LENGTH | MIN. HOLE DEPTH | TENSIONS(KN.)** |
| DEA14 | 1/4" | 1/2" | 1-3/8" | 1-1/4" | 225 |
| DEA516 | 5/16" | 5/8" | 1-5/8" | 1-1/2" | 375 |
| DEA38 | 3/8" | 3/4" | 2" | 1-3/4" | 500 |
| DEA12 | 1/2" | 7/8" | 2-1/2" | 2-1/4" | 890 |
| DEA58 | 5/8" | 1" | 2-3/4" | 2-1/2" | 1540 |
| DEA34 | 3/4" | 1-1/4" | 3-15/16" | 3-1/2" | 2040 |
| ** Tabulated load values are for anchors installed in concrete(Concrete C20/25). Concrete compressive strength must be at the specified minimum at the time of installation. | |||||
