High lumen light led panel 120x30 48w with lighting accessories
US$ 1 - 100
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
3 years warranty Samsung chip Super light 595x595 led ceiling panel
-
300x300 600x600 Korea Samsung5630 chips led backlight panel
-
Factory Price 3 Years Warranty Ultra Thin LED Panel Zhongshan
-
36W high efficiency cool white led sky ceiling panel
-
600x600 CCT dimming ceiling led panel dimmable
-
40w double-wings design rohs listed restaurant ceiling light
Product Details
| LED Light Source | LED | Warranty(Years) | 3 | |
| Input Voltage(V) | AC85-265 | Lamp Power(W) | 54 | |
| Lamp Luminous Flux(lm) | 4590 | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Other, 2800-6500K | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CE, Energy Star, FCC, LVD | |
| Place of Origin | Guangdong, China | Brand Name | LOEVET | |
| Model Number | LVT-PL6060-36W-H-* |
Product Description
Specifications
1.CE,ROHS,FCC,LVD2. 3 years warranty
3. Luminous>85lm/w
4.CRI>85
5. Dimmable with controller
LOEVET CCT LED Panel Light
Features:
(1) South Korea's Samsung SMD5630 LEDs, Taiwan LumenMax SMD5630 or SMD3014 LEDs are available.
(2) MEAN WELL Power Supply or Bipolar Drive Power Supply are available.
(3) With high light transmission rate , excellent light uniformity, and effectively prevent static electricity and dust.
(4) Professional aluminum structure design and PCB circuit design to ensure the SMD LEDs good for heat dissipation.
(5) Alternative Power :54watt / 72watt / 100W.
(6) Standard CE RoHS ETL UL FCC TUV.
(7) One remote can control many pieces of Panel Light and the panel lights can be divided into four groups and control separately
Technical Specifications:
| Model No. | LVT-PL60120-54W | |

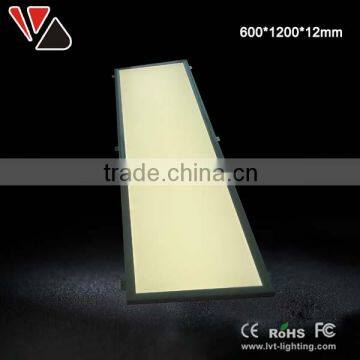

| Size | 600*1200*12mm | |
| Power | 54W | |
| Luminous efficiency | 90 lm/w | |
| Luminous Flux | 4860 lm | |
| Input Voltage | AC 100-240(CE certification) AC 100-277(UL certification) | |
| LED Brand Chips | Option-1:Taiwan LumenMax SMD3014 LEDs(10*23MIL) Option-2:Taiwan LumenMax SMD5630 LEDs(42*25MIL) Option-3:Korea Samsung SMD5630 LEDs(42*25MIL) | |
| LED Q'ty | SMD 3014 | 54W 704 PCS |
| SMD 5630 | 54W 198 PCS | |
| Dimmable: | Dimmable or Non-Dimmable | |
| Color Temperature | 2800-6500K | |
| CRI | SMD3014 > 72 ; SMD5630 > 80 | |
| Bean Angle | 120° | |
| Life Span | >50000H | |
| Net Weight | 9.5Kg | |
| Gross Weight | 10.7Kg | |
| Installation Methods | Recessed/Suspended/Wall Mounted/Celling Mounted | |
| Standard | CE RoHS FCC LVD TUV | |
| Warranty | 3 years | |
Product Display:
The Package of the LED Panel Lights:
Light Source Test Report
Light Source Test Report:
Applications
Certifications:
Certification:
| Certified Picture | Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date --- Expired Date |
|---|---|---|---|---|---|
| CE | ECT | ECT2013S07008 | LED Panel Light & LVT-PL6060-54W | 2013/07/31 --- 2049/12/31 | |
| CE | ECT | ECT2013E07022 | LED Panel Light & LVT-PL6060-54W | 2013/07/31 --- 2049/12/31 | |
| FCC | ECT | ECT2013E07023 | LED Panel Light & LVT-PL6060-54W | 2013/07/31 --- 2049/12/31 | |
| RoHS | ECT | ECT2013R07016 | LED Panel Light & LVT-PL6060-54W | 2013/07/31 --- 2049/12/31 |
Contact Us
- Shenzhen Loevet Electrical Appliances Co., Ltd.
- Contact nameAllen Huang Chat Now
- Phone86-0755-33134683
- Address3rd Floor,1 Buiding Langkou Shunchengji industrial Park ,Dalang Street Longhua new District , Shenzhen, Guangdong
