2016 Made in China Cold Rolling Ibr Steel Plate Wall Panel Forming Machine
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Aluminium Roofing Sheet Corrugated and IBR Sheet Roll Forming Machine, Roof Sheet Making Machine
-
Hot Sale Africa Durable IBR Used Metal Roof Panel Roll Forming Machine
-
Trapezoidal IBR Corrugated Profiles Colored Roofing Sheet Tile Roll Forming Machinery Prices
-
IBR Galvanized Metal Roofing Sheet Roll Forming Machine
-
IBR Roofing Iron Roll Forming Machine
-
Hot Sale IBR Roof Sheet Roofing Tile Metal Sheet Making Roll Forming Machine for South Africa
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | Dongchang | Model Number | Roll Forming Machine | |
| Power(W) | 4+4KW, 3KW - 8KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 5m*1.3m*1.3m-15m*1.3m*1.4m | Weight | 4.5T | |
| Certification | CE ISO, ISO, CE | Warranty | One Year, 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2016 made in china cold rolling ibr steel plate wall panel forming machine
Main parameters
No. | Spc. | |
1 | suitable material | Color Steel plate, galvanized sheet |
2 | Feeding width | 1000mm |
3 | Rows of rollers | 13 rows |
4 | Main power | 4kw |
5 | Hydraulic power | 3kw |
6 | Main frame | 300 H steel |
7 | Thickness of raw material | 0.3-0.8mm |
8 | Transportation system | Chain transportation |
9 | Thickness of chain | 1.0inches |
10 | Productivity | 8-10m/min |
11 | Out diameter of shaft | 70mm (solid shaft) |
12 | Material of shaft | Material of shaft |
13 | Roller material | 45# steel polished and coated with chrome HRC55-60° |
14 | Shear mould | Gr12 |
15 | Voltage | 380V 50Hz 3phases |
16 | Control system |
PLC Frequency Control System with touch screen |

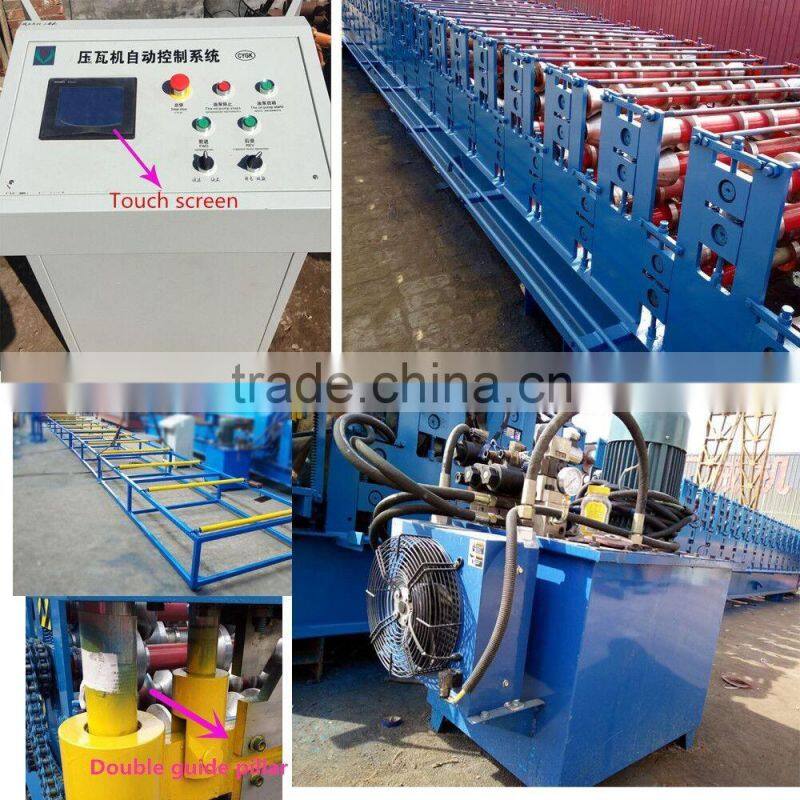

Components of 2016 made in china cold rolling ibr steel plate wall panel forming machine line,
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Automatic cutting | set | 1 |
6 | Output table | set | 1 |

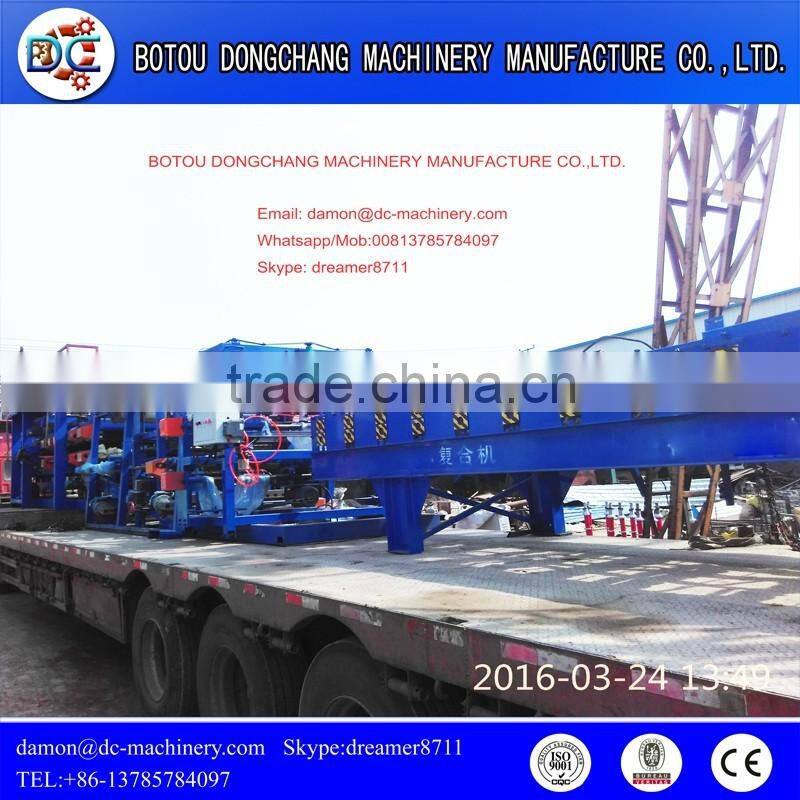

Packaging details of 2016 made in china cold rolling ibr steel plate wall panel forming machine :
Main machine is nude in the container and control box is packed by carton box frame.
Delivery Detail:15 days after receipt of the deposite
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $100/days |
Payment term
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery ) |
Cooperation step
| Step 1: Tell us your requirements |
| Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative |
| Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract. |
| Step 4: Advanced payment and production |
| Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract. |
| Step 6: Balance payment and shipping |
| Step 7: Handing Shipping files to help clients get goods from transporter in time. |
| Step 8: Clients get goods and go into warranty time. |
Uncoiling→ Feeding material into machine →Roll forming →Measuring length→ Step formed
→ Auto cutting →Products receiving
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
roll forming machines of our company
If you have any questions for the Roofing roll forming Machine, send your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
