Metal Roof Tile Making Machine
- Tianjin
 - T/T L/C D/P D/A

You May Like
Product Details
| Condition | New | Type | Other, Tile Forming Machine, Corrugated steel forming machine/ Glazed roof forming machine | |
| Tile Type | Colored Steel | Use | Other, Roof and wall | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | Dongchang | Model Number | Tile Forming Machine | |
| Power(W) | 3kw | Voltage | 380V 50Hz 3phases, 380v/50hz/3phase | |
| Dimension(L*W*H) | 4800*1300*1200mm | Weight | 3-6 tons | |
| Certification | ISO9001 | Warranty | 12months, 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Type | Corrugated steel forming machine/ Glazed roof forming machine  |
| Model | Single layer/ Double layer |
| Effective width | 600-1250mm  |
| Raw materials width | 1000-1500mm  |
| Product thickness | 0.13-0.8mm  |
| Processing speed | 10-16m/min  |
| Step of rollers | 8-15 steps |
| Material of roller shafts | 45 #chrome steel |
| Shear material | Cr12 high strength steel with quenching  |
| Control system | PLC  |
| Voltage | 380v/50hz/3phase  |
| Power | 3kw  |
| Dimension | 4800*1300*1200mm  |
| Weight |
 3-6tons  |
| Warranty |
 1 year  |
| 1 | galvanized steel coil/ galvalume steel coi |
| 2 | color galvanized/galvalume steel coil |
| 3 | galvanized/galvalume/color metal roof |
| 4 | C/Z/U Purlin |
| 5 | corrugated roof making machine |
| 6 | trapezoid roof making machine |
| 7 | C/Z/U roll forming machine |
| 8 | sheet bending/shear machine  |
Other roll forming machines

-Wall and roofing sheet roll forming machine / Metal tile forming machine
-C/Z purlin Auto size quick change forming machine

-Floor decking forming machine

-Highway guardrail roll forming machine

-Landwich rollforming machine

-Stud and Track forming machine/light keel roll forming machine/ Roller Shutter Door Roll Forming Machine

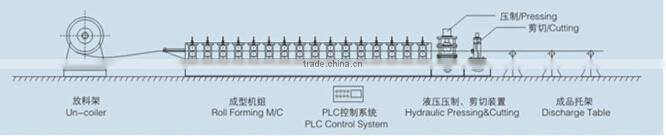

Components of line:
No.  | Name  | Unit  | Qty  |
1  | Decoiler  | set  | 1  |
2  | Main machine for roll forming  | set  | 1  |
3  | Control system  | set  | 1  |
4  | Hydraulic system  | set  | 1  |
6  | Post cut  | set  | 1  |
7  | Output table  | set  | 1  |
1). Tighten to container with steel wire rope and welded machine with container by angel iron

2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)

3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage
1. we provide our customers with 12 months' warranty.
2. Any parts damaged due to quality problem shall be changed for free within the first year.
3. Technical guide is provided during whole life of the machine.
4. Oversea services will be provided but any cost thus incurred will be paid by the buyers.
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- What is the payment term?
- Our payment term is TT, 30%TT as the deposit, before shipping pay the last 70%TT
H:- Any certification:
- Yes, we have CE TUV BV certification.
