Good Highway Guardrail Roll Form Machine

Highway Guardrail Roll Forming Machine

1. Cutting: the material will sent into the unit guide wheel

2. The material is leveled by three roller grinding machine and four roller grinding machine.

    The diameter of forming shaft is Φ80mm (material # 45 will be quenched), the roll materials is GCR15,

    quenched to HRC58 ° -62 °, surface is plated hard chrome .

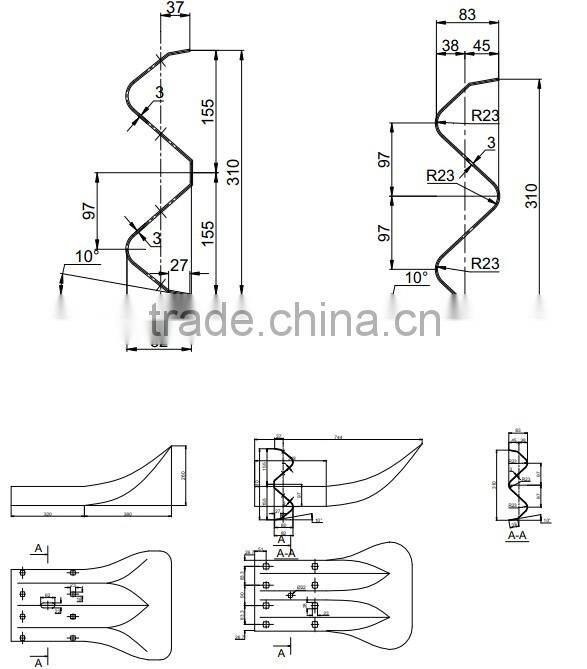

3. Profiles: Profile Thickness: 2.0mm-4.0mm; width of profiles unfold: 482 mm; profiles Material: Q235

4. Punching: hydraulic punching (material Cr12 steel mold will be quenched, and it can be adjusted all around)

5. Cutting off: hydraulic shearing knife mold, materials:Cr12, quenching:HRC60-62

6. Host Power: 15KW

7. Cycloid reducer power: 15KW

8. Drive: Gear (high frequency hardened), 2-inch single row chain

9. Hydraulic station motor power: 15KW, pressure:20Mpa

10. The unit uses frequency conversion adjusting speed in 5m-10m / min

11. The electronic control part: PLC NC frequency electrical boxes, touch-screen. Counting by encoder,

      can arbitrary control the length and the number of profiles,

      Accuracy:± 1.0mm, automatic hydraulic shear, the system with punching center side hold machine and punching center hole machine.

12. Dimension of equipment: Length 18m ×Width 1.2m ×High 1.5m

      The discharge of high-speed guardrail cold-roll forming machine:

      Simple discharge rack:

1, The rack is made of 60mm * 40mm square tube welding (can be adjusted up and down).

2, The sliding wheel is arranged on the rack.

3. Specifications: Length  0.9m ×Width 1.5m × High 0.6m

Pictures High speed highway guardrail roll forming machine for sale

Packing and delivery

  Glazed tile roll forming machine

Double Layer Roll Forming Machine

Roof Ridge Roll Forming Machine

C/Z/U Purlin Roll Forming Machine

3.The spare parts ,such as limit switch ,solenoid ,fuse ,,push button ,tube

 for free .

Order process:confirm the profile--got the order-pay advance payment--start design and make machine(send process photo)--nearly finishing machine--send invitation letter -- try the machine for inspection--pay balance payment--delivery machine--send documents to clear the custom--worker help install if the customer need

    Since 2005 until today specializing in the production of more than 10 days ,now Botou Dongchang Machinery Manufacture Co., Ltd.has exported high quality Roofing Shingles Making Machine to more than 15countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago,  Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on. Lean upon professional design, precise fabrication and experienced assembly, we always supply both standard and customized products in high quality. With a decade of experience in exporting ISO and BV certificated products all over the world, we could be your reliable supplier for long-term cooperation.

If you have any questions for the Roofing roll forming Machine, send your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
