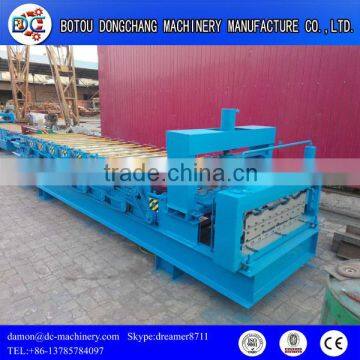

Dongchang Snapping up Aluminum Metal Glazing Roof Plate Roll Forming Machine
- Tianjin Port
- T/T Credit Card
You May Like
-
Good Selling Glazed Tlies Making Machine Glazed Roof Machine
-
High Efficiency Glazed Roof Sheet Roll Forming Machine Made in Dongchang
-
DC New Design Building Material Glazed Roof Tile Cold Forming Machine Rolling Roofing Sheet Rolling Making Line
-
Dongchang Updated Tech Automatic Hydraulic Glazed Tile Roll Forming Machinery/Roofing Glazed Tile Process Line
-
Steel Glazed Tile Galvanized Roofing Sheet Roll Forming Machine
-
Fully Automatic Hydrulic Cutting Roof Glazed Tile Roll Forming Machine, Roofing Tile Making Machinery
Product Details
| Condition | New | Type | Cold Rolling Mill | |
| Place of Origin | Hebei, China | Brand Name | dongchang | |
| Model Number | 1100 | Voltage | 380V, 50HZ, 3 phase | |
| Power(W) | 3kw or as designed, 3KW - 8KW | Dimension(L*W*H) | 5.9*1.3*1.1 m | |
| Weight | 10ton | Certification | ISO,CE, ISO, CE | |
| Warranty | 1 year, 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dongchang Snapping up Aluminum Metal Glazing Roof Plate Roll Forming Machine
1. Machine parameters:
1 | Name of commodity & specification | |
glazed tile roof forming machine
| ||
2 | Dimension | 16,800×1,350×1,600mm |
3 | Weight | about 16 T |
4 | Roller material | 45# steel, chromed |
5 | Forming steps | 30 |
6 | Main motor power | 11KW ×2 |
7 | Hydraulic motor power | 5.5KW |
8 | Voltage | 380V /3phase /50 HZ (or as your requirement) |
9 | Material | Galvanized steel |
10 | Max. feeding width | 1,250 mm |
11 | Effective width | 800 mm |
12 | Thickness | 0.8-1.5 mm |
13 | Material of cutter | Cr12 , quenched |
14 | Productivity | 10--12m/min(not including the cutting time) |

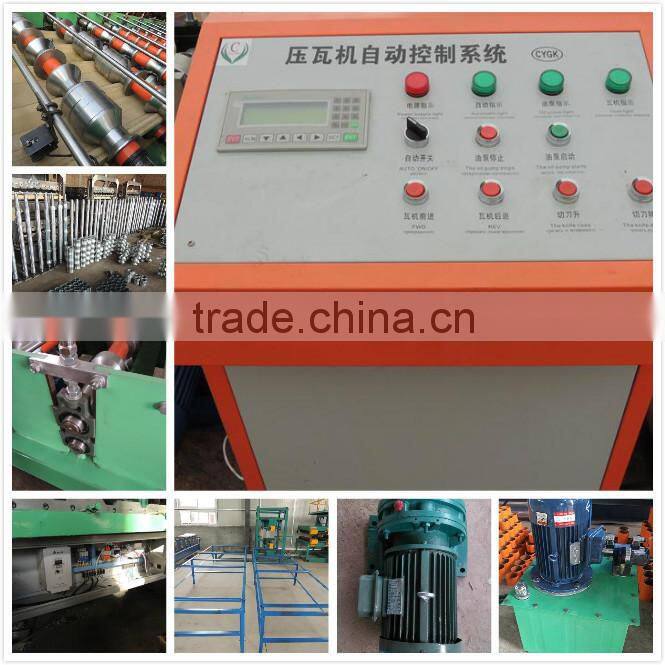

15 | PLC | Delta |
16 | Components | Material shelf 1 set Computer control box 1 set Cutting blade 1 set |
| ||

Packaging details of glazde roll forming machine:
Main machine is nude in the container and control box is packed by carton box frame.
Delivery Detail:30 days after receipt of the deposite
12 months warranty period, we will offer technical support for whole life.
Engineer available to install machine and train your workers overseas.
Uncoiling→ Feeding material into machine →Roll forming →Measuring length→ Step formed
→ Auto cutting →Products receiving
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
