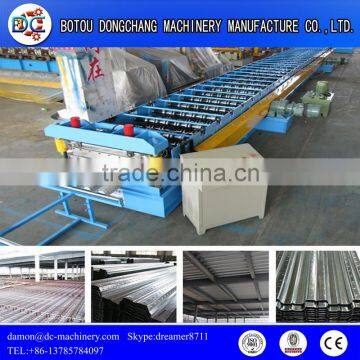

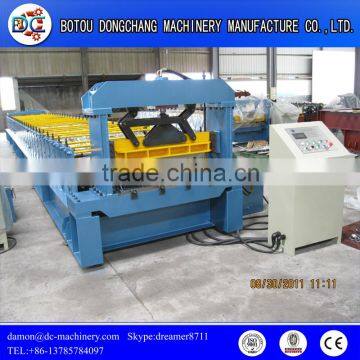

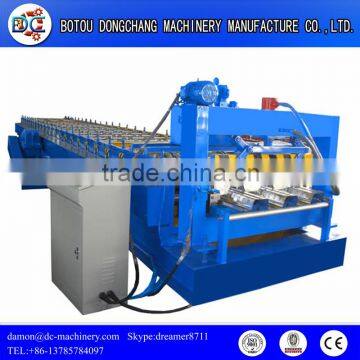

Floor Deck Forming Machine , Floor Tile Making Machines

Technical Parameter Wall and floor tile making machine

(1)Diameter of principal axis:95mm

(2)Forming speed:8m/min

(3)Main motor power:15kw

(4)Hydraulic station power:5.5kw

(5)Electric controlling system: automatic computer control system

(6)Material of roll:45 # steel hard chrome plating

(7)Forming station:26

(8)Installation dimension about(L*W*H): 15*1.5*0.8M

(9)Total weight:11T

(10)Hydraulic oil pump:CB-E310

(11)Thickness:0.5-2mm

(12)Length of tolerance:≤1.5mm

(13)Sprocket:P-50.8

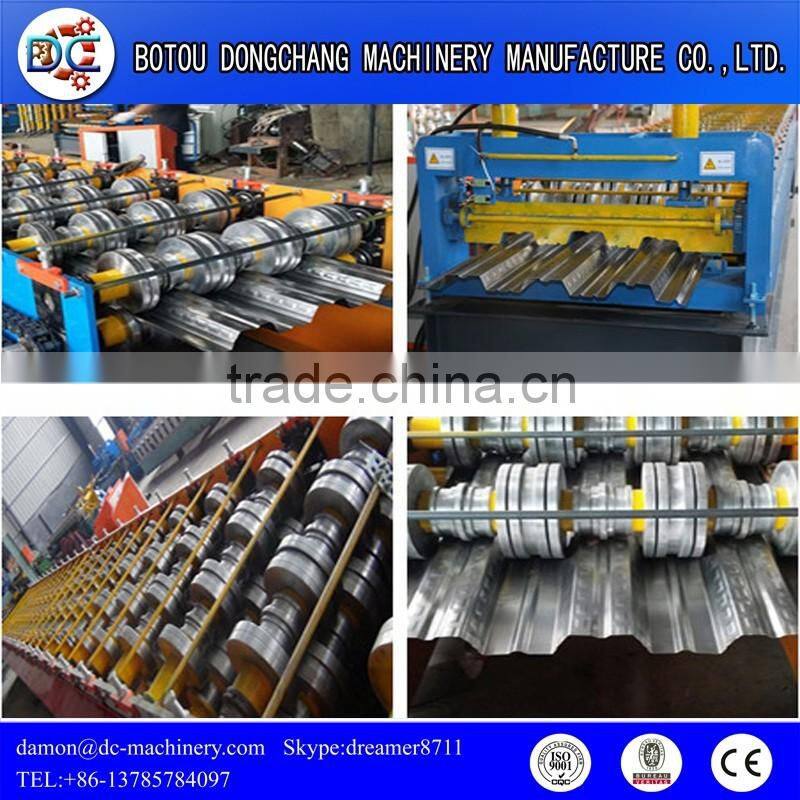

(14)Equipment part: roll forming system, forming press system, hydraulic system, computer control system, automatic punching system, counter, cutting system, material feeding.

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table

Packaging:

1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)
3.PLC control system and moter pump are packed with water-proof plastic coverage.

Delivery Detail:

5-7 days after receipt of buyer's deposit.

Since 2005 until today specializing in the production of more than 10 years ,now Botou Dongchang Machinery Manufacture Co., Ltd.has exported high quality Roofing Shingles Making Machine to more than 15countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago,  Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on. Lean upon professional design, precise fabrication and experienced assembly, we always supply both standard and customized products in high quality. With a decade of experience in exporting ISO and BV certificated products all over the world, we could be your reliable supplier for long-term cooperation.

Q:Are you a manufacturer?

A:Yes absolutely. Welcome a lot for your visiting to us.

Q:Do you have after-sale support?

A:Yes, we’re always here for giving you advice and support for technical details

Q:Is there quality control when manufacturing the lines?

A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

If you have any questions for the Roofing roll forming Machine, send your Inquiry Details in the Below, Click "Send" Now!We will be 24 hours services for you .
