Home > Products > Antenna > Digital Directional Yagi tv Antenna

Digital Directional Yagi tv Antenna

FOB Price

US$ 130 - 160 / Set

10 Sets(Min. Order)

Port GUANGZHOU
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	CEKE
Model Number	CEKEATN-12030-07V	Type	Outdoor
Frequency Range	750-810(MHz)

Product Description

750-810MHz outdoor UHF Digital Directional Yagi tv antenna

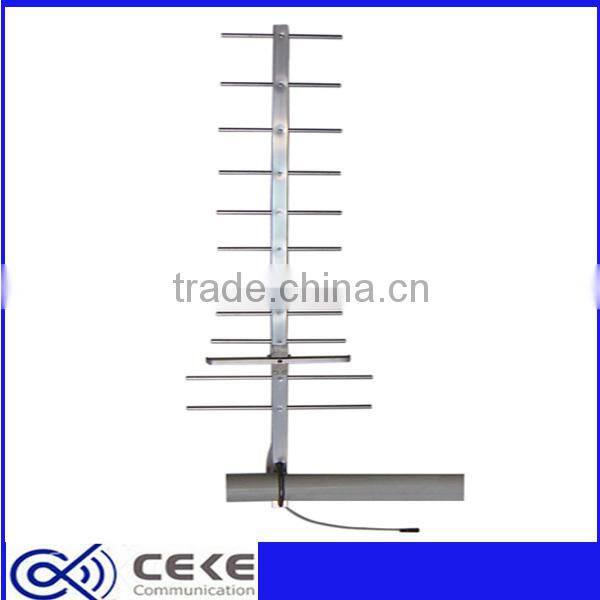

1. What is the appearance of the antenna?

Answer: Here below is the photo of the antenna.

2. What are the specifications of the antenna?

Answer: Please refer to below table for the specifications of the antenna.

Electrical Data
Model	CEKEATN-12030-07V
Frequency Range	750-810(MHz)
Input Impedance	75()
VSWR	<1.5
Gain	12(dBi)
(3dB)HPBW	30H-plane 30E-plane
F/B	>20(dB)
Maximum Power	200(W)
Polarization	Vertical Polarization
Connector Type	F
Lighting Protection	Direct Ground
Ambient temperature	-40+60

Mechanical Data
Wind Velocity	200(km/h)
Length	940(mm)
Structure	12 unit
Weight	0.35(kg)
Hold Pole Diameter	40-60(mm)

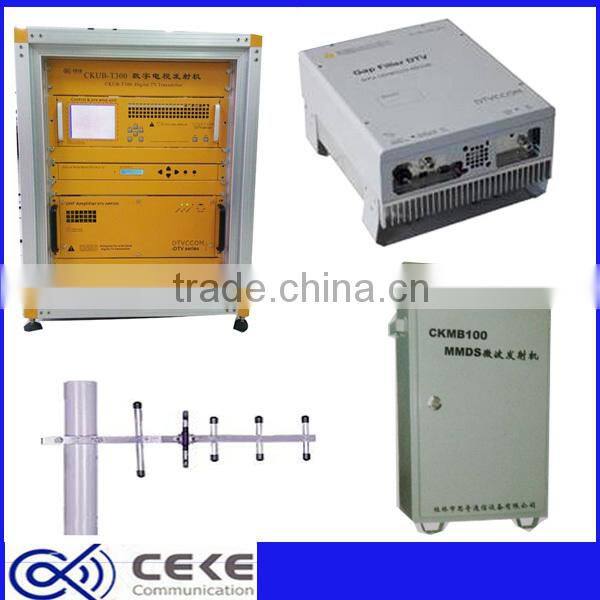

3. What more products do we have for customer to choose?

Answer: our products cover:

No.	Product description
1	Terrestrial digital TV broadband transmitter/repeater
2	MMDS Broadband Outdoor Transmitter
3	Terrestrial digital TV wide-band frequency system solution
4	High-capacity TV and radio microwave transmission equipments
5	Digital tv set top box/Digital TV Head-end Equipment (Modulator, encoder)

Click below picture to enter our website for more details. We're sure our products will suit your business.

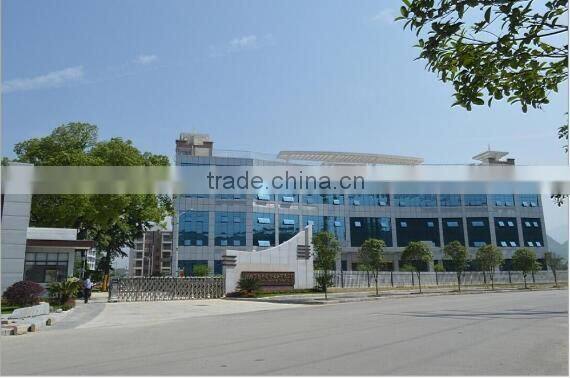

4. Could you introduce your company?

Answer: Established in 2000, Guilin CEKE Communication Equipment Co. Ltd. has more than 14 years of experience in high-frequency microwave equipment R&D, production, installation, debugging and maintenance. CEKE has stood for quality, precision and innovation and for its competitive price of products. With a full range of large-scale terrestrial digital television networking products, we are sure you will find what you need in setting up a large area terrestrial digital TV transmission coverage network.

5. Which countries have our products been sold to?

Answer: Our products have been widely sold both at home and abroad, and our main customers come from five continents about 30 countries, such as Uruguay, Chile, Bolivia, Brazil, Costa Rica, Dominica, Trinidad and Tobago; Mongolia, Laos, Vietnam, Georgia, Burma, Philippines, Pakistan, Iran, Kyrgyzstan; Nigeria, Senegal, Madagascar, Congo, Ghana, Tanzania, Uganda, Liberia, Guinea-Bissau.

6. Why choose CEKE?

Because:

(1) CEKE has more than 14 years of experience in high-frequency microwave equipment R&D, production, installation, debugging and maintenance.

(2)CEKE has passed the international ISO9001 Quality System Certification, and the digital television transmitter has passed the State Administration of Radio Film and Television (SARFT), SRRC,AQSIQ certification.

(3) CEKE was awarded “Guilin National Microwave and Optical Communication High and New Technology Industrialization Base” by the Ministry of Science and Technology in 2011.

(4)Compared with other companies, CEKE has below core competence.

a. Wide Frequency Band Transmitting Solution (bandwidth up to 80-100MHz) ;

b.M-SFN networking mode, we provide large-scale networking base on engineering construction experience;

c. Simulation Coverage planning, we can simulate the signal coverage effect with longitude and latitude and tower height through our global geographic information;

d. Design Platform & Wireless Terrestrial Digital TV System Integration, we provide one-stop service so that customers could buy the whole system and equipments.

(5) CEKE was the first company to propose and successfully put broadband transmission system into operation.

7. How to contact us?

Answer: please contact us by below :

Guilin CEKE Communication Equipment Co., Ltd.
—Website:
—Cell: +86 132 9947 6051
—Tel: +86 773 2120 156
—Fax: +86 773 2120 299
—Skype: susanloceke
—Email: cekesusan @
—Add:D-08, Information Industrial Park, Chao Yang Road, High-tech District, Guilin, Guangxi, 541004, P.R.China.
